40in 48In Carbon Steel Dismantling Joint Pipe Metal Expansion Joint

40in 48In Carbon Steel Dismantling Joint Pipe Metal Expansion Joint
40in 48In Carbon Steel Dismantling Joint Pipe Metal Expansion Joint 40in 48In Carbon Steel Dismantling Joint Pipe Metal Expansion Joint 40in 48In Carbon Steel Dismantling Joint Pipe Metal Expansion Joint

Large Image :  40in 48In Carbon Steel Dismantling Joint Pipe Metal Expansion Joint

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: C2F
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄95.6-178.4 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-7day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 6000 piece per month
Contact Now Chat Now

40in 48In Carbon Steel Dismantling Joint Pipe Metal Expansion Joint

Description
Working Pressure: From PN10 To PN25 Applicable Media: Portable Water, Neutral Liquids And Sewage
Material Of Flange: Stainless Steel 304,316,316L Etc Color: Blue
Surface Treatment: Epoxy Coated Customized Support: OEM, ODM
Warranty: 1 Year Connection: Flange
Drawing: Offer
Highlight:

48In Carbon Steel Dismantling Joint

,

40in Dismantling Joint Pipe

,

Pipe Metal Expansion Joint

40" 48" Carbon Steel Dismantling Joint Pipe Metal Expansion Joint
Product Introduction

The dismantling joint consists of loose sleeve expansion joints, spool flanges, and force transmission screws. Designed for substantial adjustment during installation and removal, this fitting transmits axial force when tightened, protecting valves, pumps, and other equipment. Constructed from carefully selected metal and sealing ring materials with high-strength anti-corrosion coating for durability and reliability.

Product Features
  • Facilitates easy installation and disassembly of flange equipment
  • Corrosion-resistant construction for long service life
  • Pre-installed bolts on each flange hole
  • Requires tie rod pipeline equipment installation from upstream to downstream
Product Images

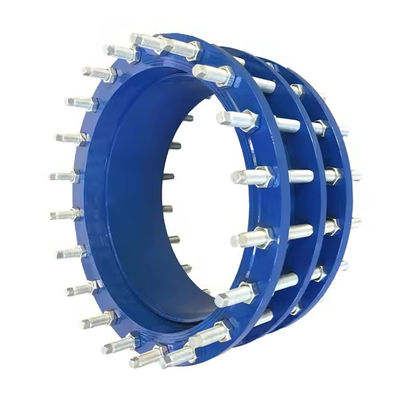

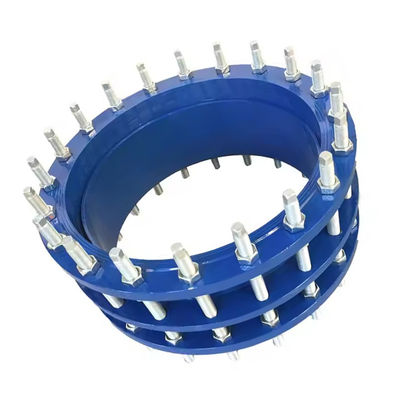

40in 48In Carbon Steel Dismantling Joint Pipe Metal Expansion Joint 0 40in 48In Carbon Steel Dismantling Joint Pipe Metal Expansion Joint 1
Component Specifications
NO Name Material Quantity
1 Short Flange Q235 1
2 Gasket EPDM 1
3 Long Flange Q235 1
4 Nut Gasket GD4.8 N
5 Bolt GD4.8 N
Technical Parameters
DN PN10 PN16
D K Bolt holes L H D K Bolt holes L H
40 150 110 M16
4-19		 180 330 150 110 M16
4-19		 180 330
50 165 125 M16
4-19		 180 330 165 125 M16
4-19		 180 330
65 185 145 M16
4-19		 180 330 185 145 M16
4-19		 180 330
80 200 160 M16
8-19		 200 350 200 160 M16
8-19		 200 350
100 220 180 M16
8-19		 200 350 220 180 M16
8-19		 200 350
125 250 210 M16
8-19		 200 350 250 210 M16
8-19		 200 350
150 285 240 M20
8-23		 200 350 285 240 M20
8-23		 200 350
200 340 295 M20
8-23		 220 380 340 295 M20
12-23		 220 380
250 400 350 M20
12-23		 220 380 400 355 M24
12-28		 230 400
300 455 400 M20
12-23		 220 380 455 410 M24
12-28		 250 420
350 505 460 M20
16-23		 230 400 520 470 M24
16-28		 260 440
400 565 515 M24
16-28		 230 400 580 525 M27
16-31		 270 460
450 615 565 M24
20-28		 250 420 640 585 M27
20-31		 270 460
500 670 620 M24
20-28		 260 450 715 650 M30
20-34		 280 490
600 780 725 M27
20-31		 260 460 840 770 M33
20-37		 300 520
700 895 840 M27
24-31		 260 460 910 840 M33
24-37		 300 520
800 1015 950 M30
24-34		 290 500 1025 950 M36
24-40		 320 550
900 1115 1050 M30
28-34		 290 500 1125 1050 M36
28-40		 320 560
1000 1230 1160 M33
28-37		 290 510 1255 1170 M39
28-43		 340 600
1200 1455 1380 M36
32-40		 320 570 1485 1390 M45
32-49		 360 650
Ordering Information
Ordering Procedure
  1. Provide specifications including caliber, pressure, medium, and material
  2. Confirm parameters and drawings
  3. Complete payment upon production completion for shipment
Production Cycle
  • Conventional products: Typically shipped within 2 days after payment
  • Customized products: Generally shipped in 5-20 days depending on quantity
Factory Verification

Our physical factory has been audited by third-party inspectors.

Shipping Options

We accept designated logistics providers, offer special vehicle delivery, and can arrange consignment shipments.

Product Composition

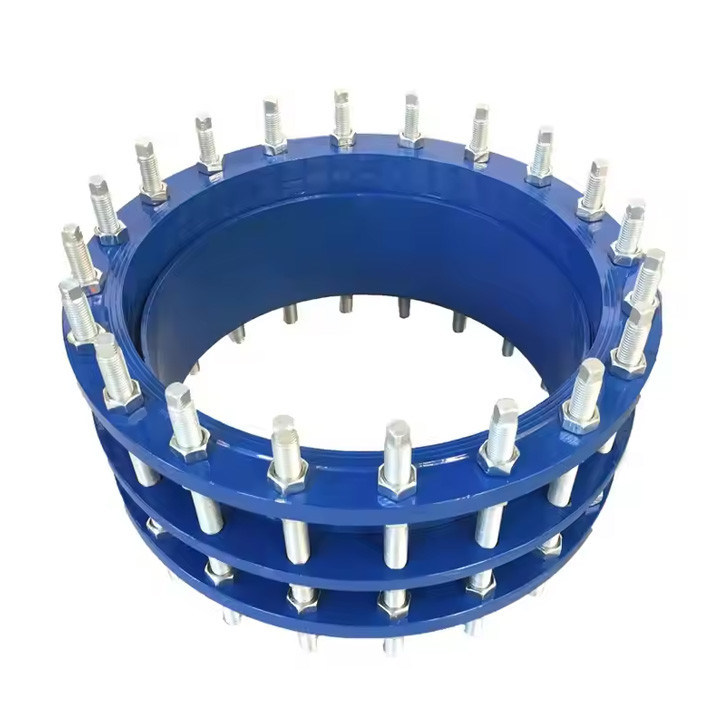

40in 48In Carbon Steel Dismantling Joint Pipe Metal Expansion Joint 2
Product Packaging
40in 48In Carbon Steel Dismantling Joint Pipe Metal Expansion Joint 3
