SS304 SS316 Stainless Steel Dismantling Joint DN600 PN16 Flexible Dismantling Coupling

SS304 SS316 Stainless Steel Dismantling Joint DN600 PN16 Flexible Dismantling Coupling
SS304 SS316 Stainless Steel Dismantling Joint DN600 PN16 Flexible Dismantling Coupling SS304 SS316 Stainless Steel Dismantling Joint DN600 PN16 Flexible Dismantling Coupling SS304 SS316 Stainless Steel Dismantling Joint DN600 PN16 Flexible Dismantling Coupling

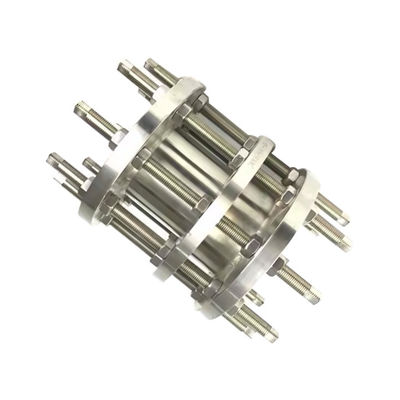

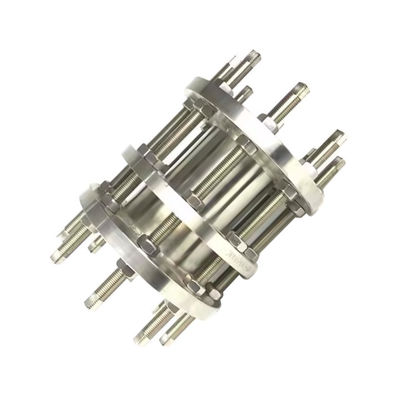

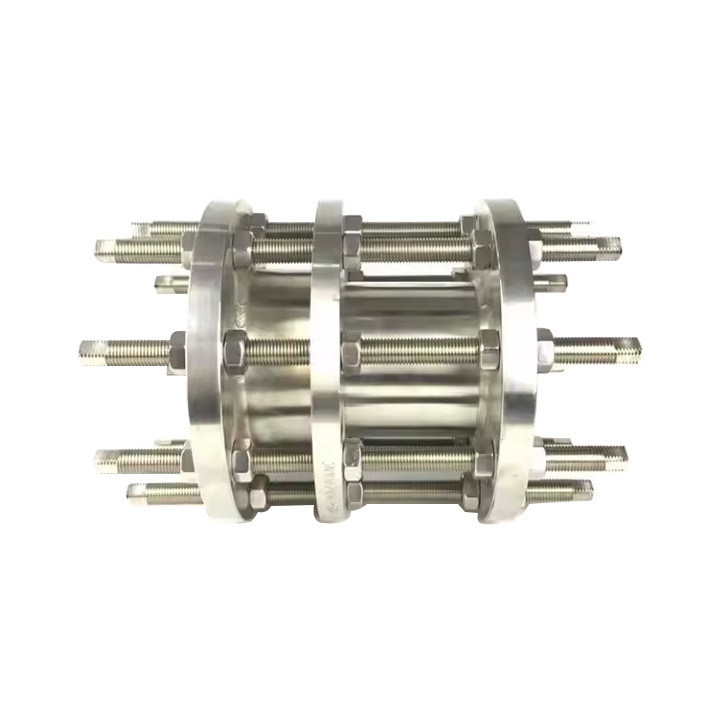

Large Image :  SS304 SS316 Stainless Steel Dismantling Joint DN600 PN16 Flexible Dismantling Coupling

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: C2F
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄66.2-106.7 per set
Packaging Details: cartons,wooden cases
Delivery Time: 1-7 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 6000 piece per month
Contact Now Chat Now

SS304 SS316 Stainless Steel Dismantling Joint DN600 PN16 Flexible Dismantling Coupling

Description
Application: Connect Pipes,valves Etc Flange Standard: DIN, ANSI, BS, JIS, Etc
Product Name: Dismantling Joints Head Code: Round
Warranty: 12 Months Customized Support: OEM, ODM
Technics: Casting
Highlight:

SS316 Stainless Steel Dismantling Joint

,

SS304 Stainless Steel Dismantling Joint

,

DN600 PN16 Flexible Dismantling Coupling

SS304 SS316 Stainless Steel Dismantling Joint DN600 PN16 Flexible Dismantling Coupling
Product Description

DN600 PN16 Pipe Fittings Double Flange Flexible Coupling SS304 SS316 Dismantling Joint provides a reliable connection solution for industrial piping systems.

Product Structure Composition
  • Double flange: Connects with both ends of the pipe to provide a stable connection interface.
  • Loose sleeve: Allows pipe expansion or deflection within a specified range to accommodate pipeline system deformation.
  • Force transmission element: Ensures stability and safety by transmitting forces within the pipeline system.
Technical Parameters and Material Requirements
  • Chemical stability: Resistant to strong acids, alkalis, oxidants, and solvents.
  • Thermal stability: Operational range from -200°C to 300°C with pyrolysis temperature above 400°C.
  • Friction reduction: Low friction coefficient with excellent self-lubrication properties.
Product Parameters
Parameter Specification
Name DN600 PN16 Pipe Fittings Double Flange Flexible Coupling SS304 SS316 Dismantling Joint
Size DN50-DN3200mm
Pressure 0.6-4.0MPa
Temperature -10℃ to 70℃
Flange Material SS304, SS316, Q235
Bolt Material GD4.8, GD8.8, SS304, SS316, etc.
Flange Standard ANSI, DIN, JIS, BS, etc.
Medium Flowing water, neutral liquids and sewage
Application Fields Machinery, medical equipment, water treatment equipment, etc.
Technical Specifications
DN PN10 PN16
D K Bolt holes L H D K Bolt holes L H
40 150 110 M16 4-19 180 330 150 110 M16 4-19 180 330
50 165 125 M16 4-19 180 330 165 125 M16 4-19 180 330
65 185 145 M16 4-19 180 330 185 145 M16 4-19 180 330
80 200 160 M16 8-19 200 350 200 160 M16 8-19 200 350
100 220 180 M16 8-19 200 350 220 180 M16 8-19 200 350

Note: The above data represents partial specifications. Contact us for custom sizes.

Product Applications
SS304 SS316 Stainless Steel Dismantling Joint DN600 PN16 Flexible Dismantling Coupling 0
  • Connects pumps, valves, and pipelines with full bolt connection for easy installation and maintenance while bearing axial pressure.
  • Ideal for chemical and machinery industries, adapting to high temperature, high pressure, and corrosive environments.
