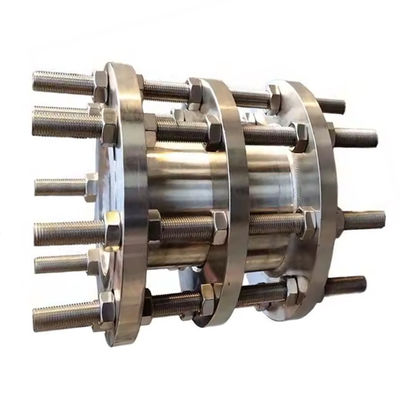

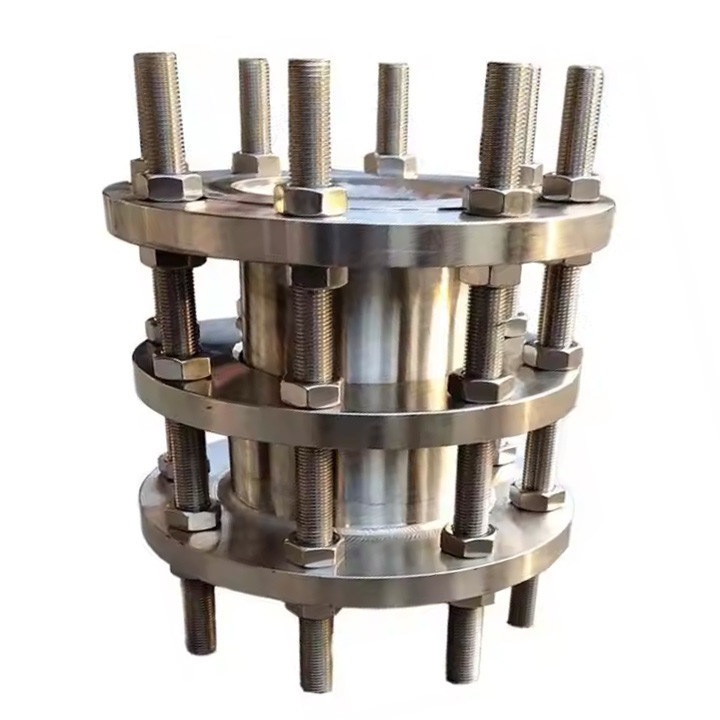

2507 Duplex Steel Dismantling Joint OEM Pipe Dismantling For Neutral Liquids

2507 Duplex Steel Dismantling Joint OEM Pipe Dismantling For Neutral Liquids
2507 Duplex Steel Dismantling Joint OEM Pipe Dismantling For Neutral Liquids 2507 Duplex Steel Dismantling Joint OEM Pipe Dismantling For Neutral Liquids

Large Image :  2507 Duplex Steel Dismantling Joint OEM Pipe Dismantling For Neutral Liquids

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: C2F
Payment & Shipping Terms:
Minimum Order Quantity: 10 piece
Price: ＄18.5-34.8 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-7day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 6000 piece per month
Contact Now Chat Now

2507 Duplex Steel Dismantling Joint OEM Pipe Dismantling For Neutral Liquids

Description
Material Of Flange: 2507 Duplex Steel Drawing: Offer
Applicable Media: Water, Neutral Liquids, Sewage Product Name: Stainless Steel Transmission Compensator Dismantling Joint
Color: Customized Color Application: Water Pipe System
OEM: Support Working Temperature: -10 — 70℃
Warranty: 1 Year
Highlight:

2507 Duplex Steel Dismantling Join

,

OEM Pipe Dismantling

,

Neutral Liquids Dismantling Joint

2507 Duplex Steel Dismantling Joint OEM Pipe Dismantling For Neutral Liquids
High strength and corrosion resistance 2507 duplex steel double flange transmission compensator dismantling joint
Product Features
  • Detachability: The dismantling joint adopts a detachable design for convenient installation, disassembly and maintenance, improving work efficiency while saving time and cost.
  • Sealing performance: Achieves excellent sealing through gaskets to prevent fluid leakage in pipelines.
  • Pressure resistance and flexibility: Buffers pipeline pressure changes, preventing damage from excessive force while allowing axial expansion/contraction to accommodate angular displacements.
  • Adapt to complex environments: Stainless steel construction provides high mechanical strength and corrosion resistance for demanding applications.
  • Automatic compensation: Allows free expansion/contraction with temperature changes and deflection during foundation settling while maintaining leak-proof seals.
Product Connection Methods
  • Threaded connection: Includes bolt nut, bolt welding screw, screw buckle, and self-tapping screw connections.
  • Buckle connection: For interior/exterior decorations and wiring installations.
  • Hinge connection: For frequently opened/closed components like doors and covers.
  • Rivet connection: Joins components using rivets.
Product Images
2507 Duplex Steel Dismantling Joint OEM Pipe Dismantling For Neutral Liquids 0
2507 Duplex Steel Dismantling Joint OEM Pipe Dismantling For Neutral Liquids 1
Product Components
NO Name Material Quantity
1 Short Flange 2507 1
2 Gasket EPDM 1
3 Long Flange 2507 1
4 Nut Gasket SS316 N
5 Bolt SS316 N
Technical Specifications
DN PN10 PN16
D K Bolt holes L H D K Bolt holes L H
40 150 110 M16
4-19		 180 330 150 110 M16
4-19		 180 330
50 165 125 M16
4-19		 180 330 165 125 M16
4-19		 180 330
65 185 145 M16
4-19		 180 330 185 145 M16
4-19		 180 330
80 200 160 M16
8-19		 200 350 200 160 M16
8-19		 200 350
100 220 180 M16
8-19		 200 350 220 180 M16
8-19		 200 350
125 250 210 M16
8-19		 200 350 250 210 M16
8-19		 200 350
150 285 240 M20
8-23		 200 350 285 240 M20
8-23		 200 350
200 340 295 M20
8-23		 220 380 340 295 M20
12-23		 220 380
250 400 350 M20
12-23		 220 380 400 355 M24
12-28		 230 400
300 455 400 M20
12-23		 220 380 455 410 M24
12-28		 250 420
350 505 460 M20
16-23		 230 400 520 470 M24
16-28		 260 440
400 565 515 M24
16-28		 230 400 580 525 M27
16-31		 270 460
450 615 565 M24
20-28		 250 420 640 585 M27
20-31		 270 460
500 670 620 M24
20-28		 260 450 715 650 M30
20-34		 280 490
600 780 725 M27
20-31		 260 460 840 770 M33
20-37		 300 520
700 895 840 M27
24-31		 260 460 910 840 M33
24-37		 300 520
800 1015 950 M30
24-34		 290 500 1025 950 M36
24-40		 320 550
900 1115 1050 M30
28-34		 290 500 1125 1050 M36
28-40		 320 560
1000 1230 1160 M33
28-37		 290 510 1255 1170 M39
28-43		 340 600
1200 1455 1380 M36
32-40		 320 570 1485 1390 M45
32-49		 360 650
Application Fields
  • Oil and gas industry: Used in refineries, processing plants and pipelines for high pressure, high temperature and corrosive media transmission.
  • Power industry: Ensures continuity and stability in boiler, turbine and condenser piping systems.
  • Chemical industry: Withstands corrosion from various chemical media in processing plants.
  • Metallurgical industry: Handles high temperature, high pressure and metal dust in blast furnace and converter systems.
  • Coal chemical and water treatment: Maintains safe operation in coal chemical transmission and water treatment plants.
  • Environmental protection: Used in wastewater treatment and exhaust systems for emission control.
  • Other industries: Food processing, pharmaceuticals, and municipal construction applications.
Product Variations
2507 Duplex Steel Dismantling Joint OEM Pipe Dismantling For Neutral Liquids 2
2507 Duplex Steel Dismantling Joint OEM Pipe Dismantling For Neutral Liquids 3
2507 Duplex Steel Dismantling Joint OEM Pipe Dismantling For Neutral Liquids 4
2507 Duplex Steel Dismantling Joint OEM Pipe Dismantling For Neutral Liquids 5
Product Composition
2507 Duplex Steel Dismantling Joint OEM Pipe Dismantling For Neutral Liquids 6
Inventory Display
2507 Duplex Steel Dismantling Joint OEM Pipe Dismantling For Neutral Liquids 7
