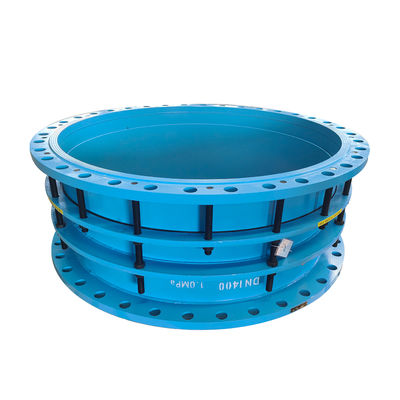

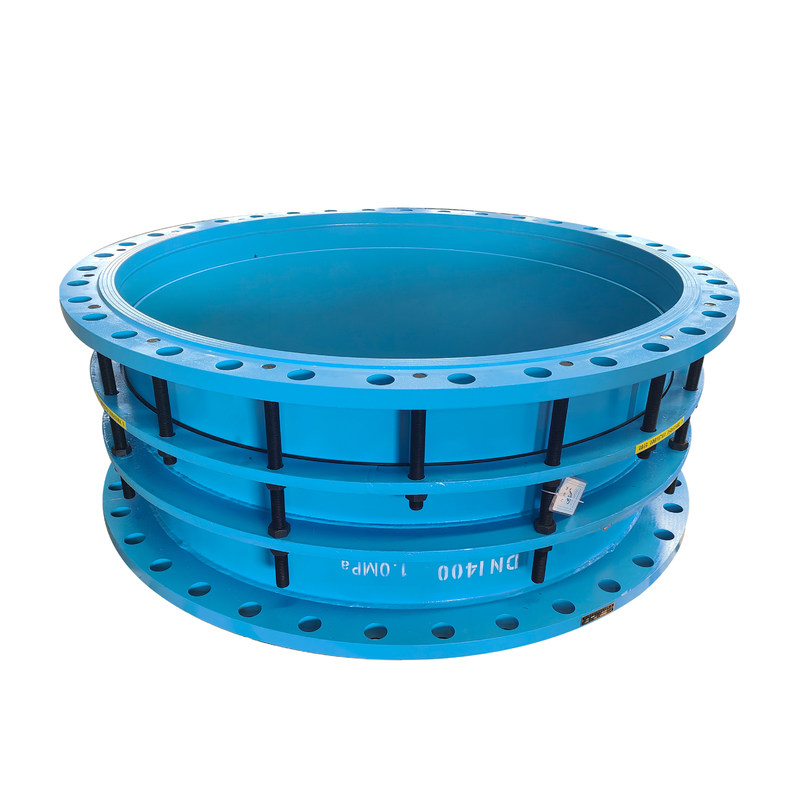

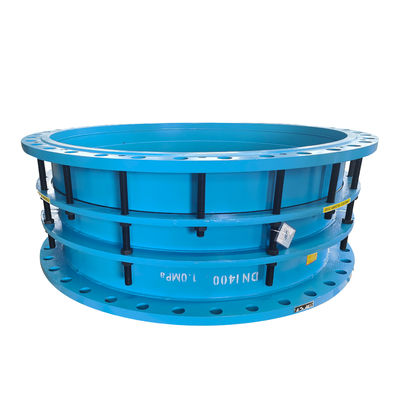

Metal Expansion Dismantling Joint DN1400 Double Flange Piping Plumbing Industry

Metal Expansion Dismantling Joint DN1400 Double Flange Piping Plumbing Industry
Metal Expansion Dismantling Joint DN1400 Double Flange Piping Plumbing Industry Metal Expansion Dismantling Joint DN1400 Double Flange Piping Plumbing Industry

Large Image :  Metal Expansion Dismantling Joint DN1400 Double Flange Piping Plumbing Industry

Product Details:
Place of Origin: China
Brand Name: Lianghe
Certification: ISO 9001:2015
Model Number: B2F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $19.4-$26.5
Packaging Details: Inside: Plastic Film ，Outside: Wooden Case
Delivery Time: 5-10 work days
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 2200 set per month
Contact Now Chat Now

Metal Expansion Dismantling Joint DN1400 Double Flange Piping Plumbing Industry

Description
Product Name: DN1400 PN10 Ductile Iron Dismantling Joint Nominal Size: DN65-DN3200
Installation Length: 200-450 Mm Material Of Body: Carbon Steel,Ductile Iron Or Stainless Steel
Coating: Epoxy Export Country: Australia,Canada,Chile,Indonesia,Philippine Etc
Working Pressure: 1.0Mpa,1.6Mpa,2.5Mpa,4.0Mpa
Highlight:

Metal Expansion Dismantling Joint

,

Dismantling Joint DN1400

,

Dismantling Joint DN1400 Double Flange

Metal Expansion Dismantling Joint DN1400 Double Flange Piping Plumbing Industry
Product Description

High quality DN1400 double flange piping plumbing industry metal expansion dismantling joint designed for optimal performance in pipeline systems.

Structural Composition
  • Double flange: Both sides feature flange structures for secure connection with pipelines or equipment, compliant with GB, ANSI or EN standards
  • Telescopic tube (sleeve): Axially extendable pipe section with internal sealing structure (rubber seal)
  • Limiting device: Extension amount controlled by pull rod, limit bolt or limit block to prevent excessive stretching/compression
  • Gland and seal: Leak-proof design using rubber (EPDM, NBR) or polytetrafluoroethylene (PTFE)
Metal Expansion Dismantling Joint DN1400 Double Flange Piping Plumbing Industry 0
Metal Expansion Joint Connecting Data
DN Tube outer diameter Dimensions Scaling amount Δ L Flange connection size (0.6Mpa) Flange connection size (1.0Mpa)
D D1 n-do D D1 n-do
65 76 340 ±25 160 130 4-φ14 185 145 4-φ14
80 89 190 150 4-φ18 200 160 8-φ18
100 108 210 170 220 180
100 114 210 170 220 180
125 133 240 200 8-φ18 250 210
125 140 240 200 250 210
150 159 265 225 285 240 8-φ22
150 168 265 225 285 240
200 219 320 280 340 295
250 273 375 335 12-φ18 395 350 12-φ22
300 325 350 ±32.5 130 445 400 12-φ22
350 377 490 445 505 460 16-φ22
400 426 540 495 16-φ22 565 515 16-φ26
450 480 595 550 615 565 20-φ26
500 530 645 600 20-φ22 670 620 20-φ26
600 630 755 705 20-φ26 780 725 20-φ30
700 720 860 810 24-φ26 895 840 24-φ30
800 820 600 ±65 220 1015 950 24-φ33
900 920 1075 1020 1115 1050 28-φ33
1000 1020 1175 1120 28-φ30 1230 1160 28-φ36
1200 1220 1405 1340 32-φ33 1455 1380 32-φ40
1400 1420 640 1675 1590 36-φ42
1500 1520 1730 1660
1600 1620 1830 1760 40-φ36 1915 1820 40-φ48
1800 1820 2045 1970 44-φ40 2115 2020 44-φ48
2000 2020 2265 2180 48-φ42 2325 2230 48-φ48
2200 2220 2475 2390 52-φ42 2550 2440 52-φ56
2400 2420 2685 2600 56-φ42 2760 2650 56-φ56
Key Parameters for Selection
  • Working pressure (PN): PN10 and PN16 options to match pipeline design pressure
  • Temperature range: Material selection based on medium temperature (-20℃~120℃ for rubber seals)
  • Medium characteristics: Stainless steel (304/316) or special coatings required for corrosive media
  • Displacement: Axial compensation (±20mm~±60mm common) with limited lateral displacement capacity
  • Connection standard: Flange size compliant with GB, HG/T, DIN and other international standards
Metal Expansion Dismantling Joint DN1400 Double Flange Piping Plumbing Industry 1
