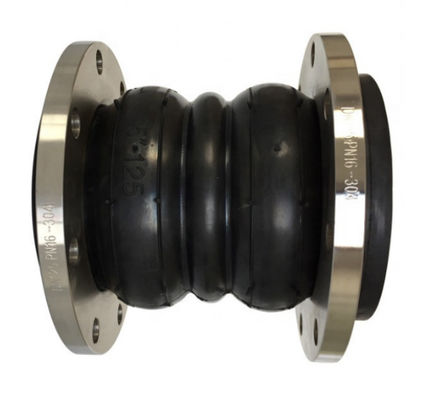

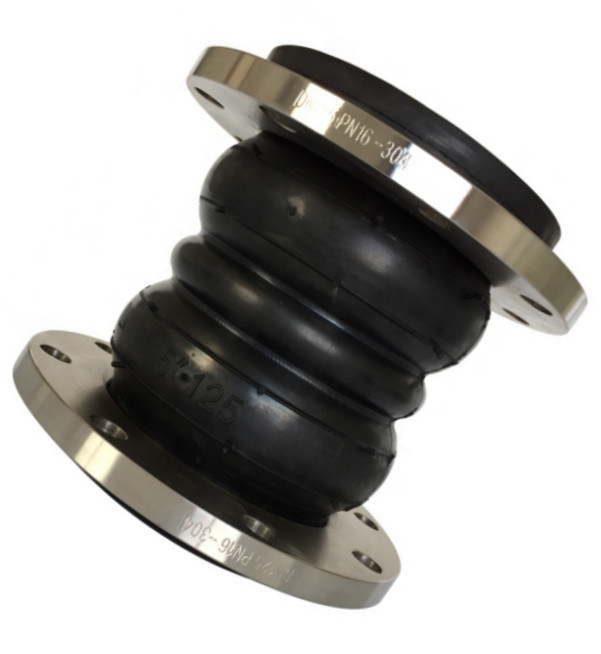

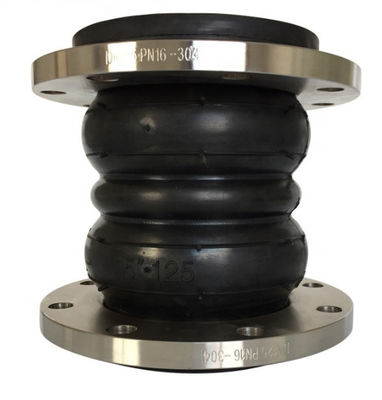

DN125 Pn16 Ss304 EPDM Connector IIR Double Sphere Expansion Joint

DN125 Pn16 Ss304 EPDM Connector IIR Double Sphere Expansion Joint
DN125 Pn16 Ss304 EPDM Connector IIR Double Sphere Expansion Joint DN125 Pn16 Ss304 EPDM Connector IIR Double Sphere Expansion Joint DN125 Pn16 Ss304 EPDM Connector IIR Double Sphere Expansion Joint

Large Image :  DN125 Pn16 Ss304 EPDM Connector IIR Double Sphere Expansion Joint

Product Details:
Place of Origin: China
Brand Name: Lianghe
Certification: ISO 9001 : 2015
Model Number: KST
Payment & Shipping Terms:
Minimum Order Quantity: 10 set
Price: ＄28.6-37.5 per set
Packaging Details: Fumigation-free wooden box（1.1*1.1*1.1m)
Delivery Time: 5-12work days
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 8500 set per month
Contact Now Chat Now

DN125 Pn16 Ss304 EPDM Connector IIR Double Sphere Expansion Joint

Description
Product Name: DN125 Double Ball Bellows Flanged Rubber Joint Size: DN20-DN3000
Body Material: EPDM,NR,NBR,IIR ,etc Warranty: 12months
Application: Air, Water, Seawater, Oil, Slurry, Weak Acid, Alkali, Etc Packing: Cartons,Wooden Case,etc
Flange Material: Galvanized Carbon Steel Sample: Free Sample
Company Type: Factory
Highlight:

DN125 Pn16 Ss304 EPDM Connector

,

DN125 Double Sphere Expansion Joint

,

IIR Double Sphere Expansion Joint

DN125 Pn16 Ss304 EPDM Connector IIR Double Sphere Expansion Joint
Custom DN125 Pn16 Ss304 EPDM Connector Double Ball Bellows Flanged Rubber Joint
Understanding Double Ball Rubber Joints

Rubber joints, also known as flexible rubber joints, rubber soft joints, or rubber expansion joints, are high-performance pipeline connectors featuring excellent elasticity, airtightness, medium resistance, and weather resistance.

Performance Characteristics

These rubber joints leverage rubber's superior elasticity, gas resistance, medium resistance, and weather/radiation resistance to effectively reduce pipeline vibration and noise while compensating for thermal expansion and contraction.

Product Advantages
  • Extended sphere design provides superior vibration and noise reduction
  • Excellent telescopic displacement performance with longer service life than single ball joints
  • Compact, lightweight design with excellent flexibility for easy installation and maintenance
  • Absorbs displacement after installation
  • Effective noise reduction capabilities
Technical Specifications
Item KST-PN10 KST-PN16 KST-PN25
Working pressure 1.0Mpa 1.6Mpa 2.5Mpa
Burst pressure 2.0Mpa 3.0Mpa 4.5Mpa
Vacuum 53.3Kpa(400) 86.7Kpa(650) 100Kpa(750)
Connection Data
Nominal diameter Length (mm) Center distance Number of holes-diameter Axial displacement(mm) Lateral displacement Angular displacement
40mm (1 1/2") 165 110 4-18 30/50 45 35°
50mm (2") 165 125 4-18 30/50 45 35°
65mm (2 1/2") 175 145 4-18 30/50 45 35°
80mm (3") 175 160 8-18 35/50 45 35°
100mm (4") 225 180 8-18 35/50 40 35°
125mm (5") 230 210 8-18 35/50 40 35°
Production Process
DN125 Pn16 Ss304 EPDM Connector IIR Double Sphere Expansion Joint 0
Installation Case
DN125 Pn16 Ss304 EPDM Connector IIR Double Sphere Expansion Joint 1
Installation Guidelines
  • Install bolts symmetrically and gradually pressurize to prevent local leakage
  • For working pressures above 1.6MPa, use elastic pads with installation bolts to prevent loosening
  • Provide vertical force support at both ends during vertical installation; consider anti-pull-off devices
  • Install away from heat sources, ozone, and avoid strong radiation light exposure
  • Handle carefully during transportation - avoid cutting surface or sealing surfaces
DN125 Pn16 Ss304 EPDM Connector IIR Double Sphere Expansion Joint 2
Frequently Asked Questions
Q: What is the MOQ of the double arch rubber absorb shock expansion joint?

A: 1 Piece. You can request a sample to test our product quality before placing larger orders.

Q: Can I get a sample?

A: Yes. For small orders, express shipping is recommended. For bulk orders, sea shipping is most economical. For urgent needs, air freight to your nearest airport is available.

Q: Can I visit your factory before ordering?

A: Yes, we welcome factory visits to inspect our production quality.

Q: Where is your nearest loading port?

A: Shanghai, Qingdao or Tianjin, China.

Q: What's your packing method?

A: Carton cases inside, export wooden cases outside for optimal protection.
