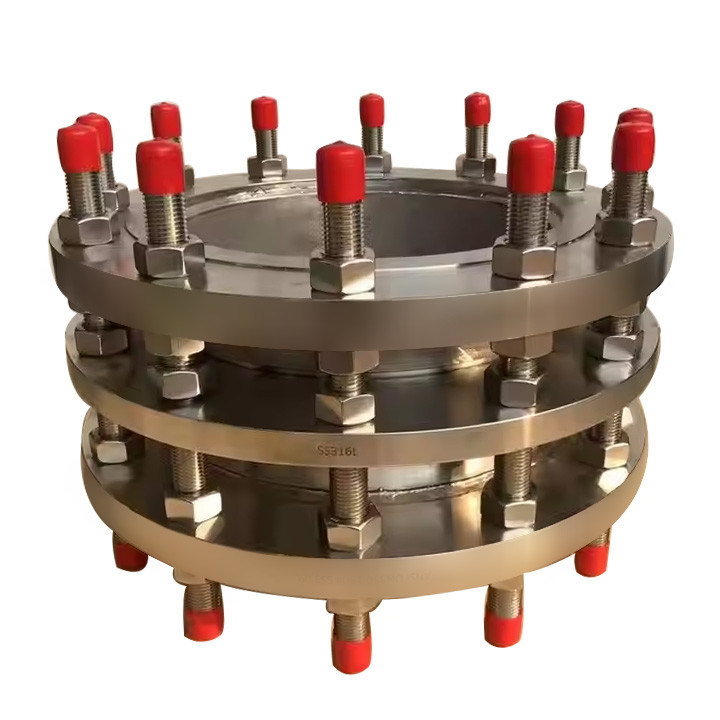

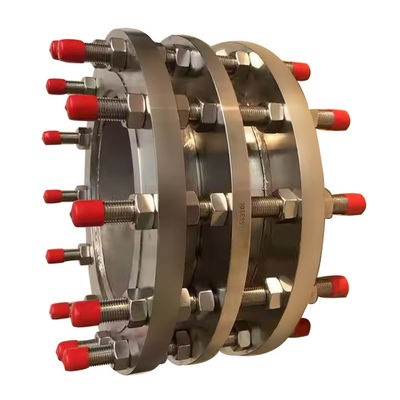

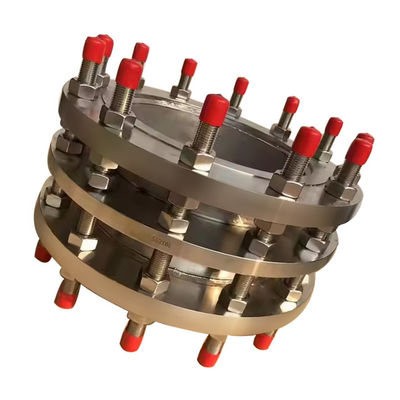

SS304 316 Dismantling Joint DN300 PN16 Plumbing Compensator Double Flange

SS304 316 Dismantling Joint DN300 PN16 Plumbing Compensator Double Flange
SS304 316 Dismantling Joint DN300 PN16 Plumbing Compensator Double Flange SS304 316 Dismantling Joint DN300 PN16 Plumbing Compensator Double Flange SS304 316 Dismantling Joint DN300 PN16 Plumbing Compensator Double Flange

Large Image :  SS304 316 Dismantling Joint DN300 PN16 Plumbing Compensator Double Flange

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: C2F
Payment & Shipping Terms:
Minimum Order Quantity: 10 piece
Price: ＄56.2-189.6 per set
Packaging Details: cartons,wooden cases
Delivery Time: 1-7 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 8000 piece per month
Contact Now Chat Now

SS304 316 Dismantling Joint DN300 PN16 Plumbing Compensator Double Flange

Description
Customized Support: OEM, ODM Connection: Flange
Pressure: PN6/PN10/PN16/PN25/PN40 Warranty: 12 Months
Drawing: Offer Advantage: High-quality
Temperature: -10℃~70℃ Material Of Flange: Stainless Steel 304,316,316L Etc
Standard: ANSI JIS DIN
Highlight:

DN300 PN16 Plumbing Compensator

,

SS304 316 Dismantling Joint

,

Dismantling Joint DN300 PN16

SS304/316 Dismantling Joint DN300 PN16 Plumbing Compensator Double Flange
Product Introduction
The dismantling joint consists of the main body, sealing ring, gland, telescopic short pipe and other components. This innovative product connects pumps, valves, and other equipment with pipelines into a unified system through full bolts, while allowing for adjustable displacement. During installation and maintenance, it can be adjusted according to on-site requirements, transferring axial thrust back to the entire pipeline system. This design enhances operational efficiency while providing protection for connected pumps and valves.
Product Advantages
  • Excellent chemical and thermal stability
  • Superior anti-friction and self-lubrication properties
  • Reliable sealing performance
  • Easy installation and maintenance
  • Wide range of industrial applications
Product Parameters
DN PN10 PN16
D K Bolt holes L H D K Bolt holes L H
40 150 110 M16
4-19		 180 330 150 110 M16
4-19		 180 330
50 165 125 M16
4-19		 180 330 165 125 M16
4-19		 180 330
65 185 145 M16
4-19		 180 330 185 145 M16
4-19		 180 330
80 200 160 M16
8-19		 200 350 200 160 M16
8-19		 200 350
100 220 180 M16
8-19		 200 350 220 180 M16
8-19		 200 350
125 250 210 M16
8-19		 200 350 250 210 M16
8-19		 200 350
150 285 240 M20
8-23		 200 350 285 240 M20
8-23		 200 350
200 340 295 M20
8-23		 220 380 340 295 M20
12-23		 220 380
250 400 350 M20
12-23		 220 380 400 355 M24
12-28		 230 400
300 455 400 M20
12-23		 220 380 455 410 M24
12-28		 250 420
Product Installation Steps
  1. Loosen the pressure plate bolts: Before installation, loosen the pressure plate bolts and extend the product to the required installation length.
  2. Align the flanges: Ensure both flanges are parallel and properly aligned. For power transmission joints with inner sleeves, align the sleeve direction with the medium flow.
  3. Install the sealing gasket: Position the sealing gasket between the flanges to prevent fluid leakage.
  4. Tighten the bolts: Use the diagonal method to sequentially tighten all bolts and nuts, ensuring proper torque specifications are met.
  5. Adjust the displacement: Fine-tune according to site requirements to allow for necessary movement during operation and maintenance.
