Pn16 Double Sphere Expansion Joint EPDM Double Flanged Flexicon Rubber Expansion Joint
Double Sphere Rubber Expansion Joint - Flexible & Durable Vibration Isolation Solution
The Double Sphere Rubber Expansion Joint is designed to absorb pipeline movements, reduce vibration, and compensate for thermal expansion. Featuring a double-sphere body, this joint offers superior flexibility and higher compression/elongation capabilities compared to single-sphere types. Ideal for HVAC, water treatment, chemical, and industrial piping systems.
Product Description

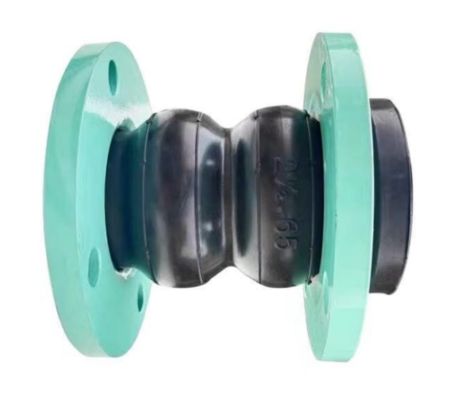

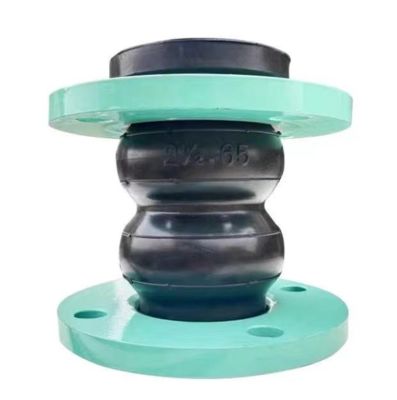

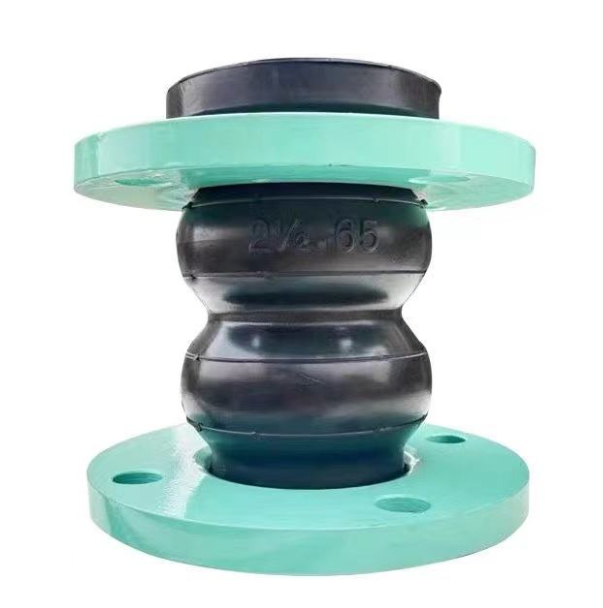

The Double Sphere Rubber Expansion Joint is a flexible connector made of high-quality synthetic rubber with reinforced nylon or polyester cord fabric and steel wire. The dual-sphere structure provides extended movement range, better noise absorption, and increased service life. It is widely used to protect pumps, valves, and pipelines from stress caused by thermal changes, mechanical vibration, or misalignment.
Key Features & Advantages
Enhanced Flexibility: Double-sphere design allows greater axial, lateral, and angular movement.
Vibration & Noise Reduction: Minimizes mechanical stress and prevents damage to connected equipment.
Corrosion Resistance: Available in EPDM, NBR, Neoprene, and other rubber types for various media.
Easy Installation: Lightweight structure with flanged or threaded connections.
Long Service Life: Reinforced rubber and steel wire ensure durability under high pressure.
Technical Specifications
| Item |
Specification |
| Size Range |
DN32 - DN600 (1¼" - 24") |
| Pressure Rating |
PN10 / PN16 / 150PSI |
| Material Options |
EPDM, NBR, Neoprene, Natural Rubber |
| Reinforcement |
Nylon cord + steel wire |
| Temperature Range |
-20°C to +120°C (material-dependent) |
| End Connection |
Flange (DIN, ANSI, JIS) or threaded |
Displacement diagram of double-ball rubber joint
Applications
HVAC & chilled water systems
Potable water and wastewater treatment plants
Chemical and petrochemical pipelines
Fire protection systems
Marine and shipbuilding industry
Industrial machinery connections
Installation & Maintenance Tips
Check Alignment: Ensure piping is correctly aligned before installation.
Avoid Overstretching: Do not exceed the maximum extension or compression limits.
Support Pipelines: Use proper supports to prevent excessive load on the joint.
Regular Inspection: Check for cracks, leaks, or rubber aging periodically.
FAQ
Q1: What's the difference between single and double sphere rubber joints?
A: Double sphere joints offer greater movement absorption and vibration damping due to the extra sphere, making them more suitable for applications requiring higher flexibility.
Q2: Can this joint be used for hot water or chemicals?
A: Yes, as long as the rubber material is compatible with the medium and temperature. EPDM is suitable for acid, while NBR works well with oil-based media.
Q3: What standards are the flanges made to?
A: We provide DIN, ANSI, JIS, and other customized standards upon request.
