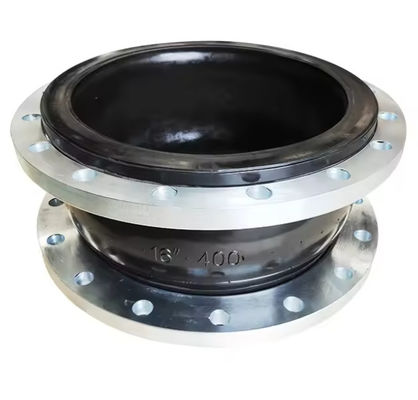

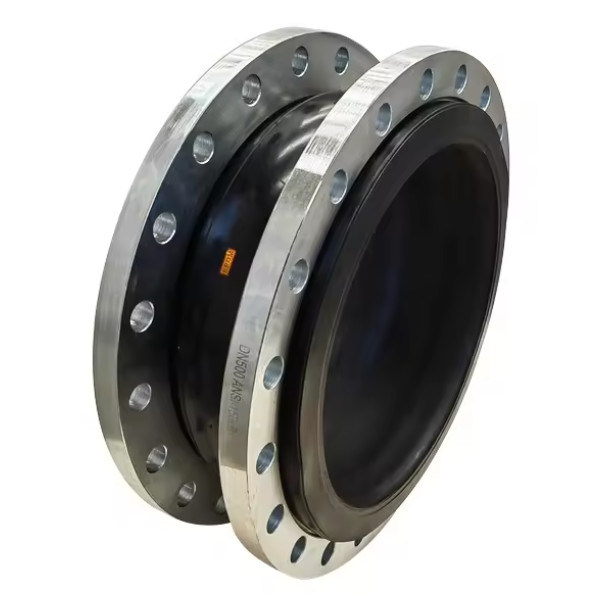

Carbon Steel Single Sphere Rubber Expansion Joint Flanged Flexible

Carbon Steel Single Sphere Rubber Expansion Joint Flanged Flexible
Carbon Steel Single Sphere Rubber Expansion Joint Flanged Flexible Carbon Steel Single Sphere Rubber Expansion Joint Flanged Flexible

Large Image :  Carbon Steel Single Sphere Rubber Expansion Joint Flanged Flexible

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: KXT
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄10.6-16.8 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-7 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 12000 piece per month
Contact Now Chat Now

Carbon Steel Single Sphere Rubber Expansion Joint Flanged Flexible

Description
Port: Shanghai,Tianjin Or Qingdao In China Applicable: Water (domestic Sewage), Industrial Sewage, Petroleum, Chemical Raw Materials, Lime Mortar, Food, Beverage, Etc
Application Fields: Water Plant, Power Plant, Sewage Treatment Plant, Fire Protection Rubber Material: NR，NBR，EPDM
Flange Material: Carbon Steel,Stainless Steel Etc. Flange Standard: DIN,JIS,ANSI,GB,etc
Drawing: Offer
Highlight:

carbon steel rubber compensator

,

cs Single Sphere Rubber Expansion Joint

,

nr rubber compensator

Carbon Steel Single Sphere Rubber Expansion Joint Flanged Flexible
Product Function
  • Reduces vibration and noise in pipeline systems while solving interface displacement, axial expansion, and angular misalignment issues
  • Available in acid-resistant, alkali-resistant, corrosion-resistant, oil-resistant, and heat-resistant materials to suit various media and environments
  • Features excellent sealing properties, lightweight construction, and easy installation/maintenance (avoid contact with sharp metal objects to prevent punctures)
Typical Applications

Ideal for connections between pumps and valves, highly vibrating pipelines, and systems experiencing frequent thermal cycling.

Technical Specifications
Nominal Diameter Length (mm) Axial Displacement (mm) Horizontal Displacement (mm) Deflection Angle
mm inch Elongation Compression
321 1/49569915°
401 1/295610915°
5021057101015°
652 1/21157131115°
8031358151215°
100415010191315°
125516512191315°
150618012201415°
200821016252215°
2501023016252215°
3001224516252215°
3501425516252215°
4001625516252215°
4501825516252215°
5002025516252215°
6002426016252215°
7002826016252215°
8003226016252215°
9003626016252215°
10004026018262415°
12004826018262415°
14005635020282615°
16006435025353010°
18007235025353010°
20008042025353010°
22008842025353010°
24009642025353010°
260010445025353010°
280011245025353010°
300012050025353010°
Application Fields
Carbon Steel Single Sphere Rubber Expansion Joint Flanged Flexible 0
Packaging & Shipping
Carbon Steel Single Sphere Rubber Expansion Joint Flanged Flexible 1
Frequently Asked Questions
Can we produce according to customer requirements?
Yes, the above specifications are standard. We can design and manufacture custom solutions based on specific requirements.
What is the minimum order quantity for this product?
Our minimum order quantity starts at one unit, depending on product type and customer needs.
What's your packing style?
Products are first wrapped in plastic, then packed in cartons and finally secured in wooden cases.
What's your loading port?
We ship from Shanghai, Qingdao or Tianjin in China.
