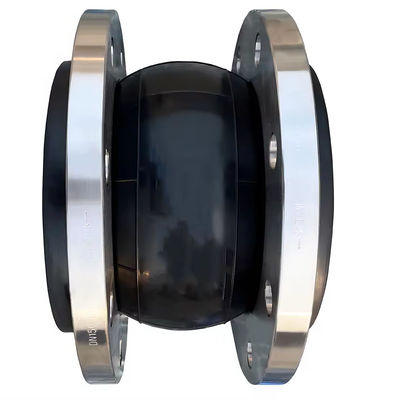

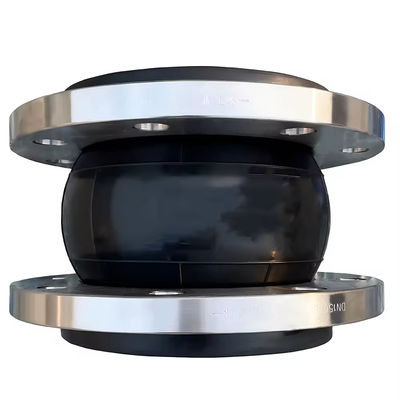

Pn16 6inch EPDM Expansion Joint Carbon Steel Flexible Joint Flange

Pn16 6inch EPDM Expansion Joint Carbon Steel Flexible Joint Flange
Pn16 6inch EPDM Expansion Joint Carbon Steel Flexible Joint Flange Pn16 6inch EPDM Expansion Joint Carbon Steel Flexible Joint Flange

Large Image :  Pn16 6inch EPDM Expansion Joint Carbon Steel Flexible Joint Flange

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: KXT
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄32.00-46.00 per set
Packaging Details: cartons,wooden cases
Delivery Time: 1-7 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 10000 piece per month
Contact Now Chat Now

Pn16 6inch EPDM Expansion Joint Carbon Steel Flexible Joint Flange

Description
Flange Standard: DIN,JIS,ANSI,GB,etc Material Of Flange: Carbon Steel,Stainless Steel Etc.
Application: Oil,Air,Water,Acid And Alkali,etc Test Pressure: 1.5 Times Of Working Pressure
Explosion Pressure: 2 Times Of Working Pressure Pressure: PN6 - PN40
Size: DN32-DN3000
Highlight:

Pn16 6inch EPDM Expansion Joint

,

Carbon Steel Flexible Joint Flange

,

6inch EPDM Expansion Joint

PN16 6inch EPDM Expansion Joint Carbon Steel Flexible Joint Flange
Product Description
DIN PN16 6inch EPDM Galvanized Carbon Steel Flanged Rubber Bellows Expansion Joints
Product Introduction
Rubber joint is a high-performance connector for pipeline systems, composed of rubber balls and metal flanges. It features excellent elasticity, air tightness, medium resistance, and weather resistance.
Product Benefits
  • Noise reduction
  • Vibration isolation
  • Displacement compensation
  • Easy pump and valve connection
  • Thermal expansion absorption
  • Corrosion prevention
  • Reduced pipeline vibration and noise
Main Connection Dimensions
Nominal Diameter Length (mm) Axial Displacement (mm) Horizontal Displacement (mm) Deflection Angle
mm inch Elongation Compression
321 1/49569915°
401 1/295610915°
5021057101015°
652 1/21157131115°
8031358151215°
100415010191315°
125516512191315°
150618012201415°
200821016252215°
2501023016252215°
3001224516252215°
3501425516252215°
4001625516252215°
4501825516252215°
5002025516252215°
6002426016252215°
7002826016252215°
8003226016252215°
9003626016252215°
10004026018262415°
12004826018262415°
Rubber Joint Material Specifications
Pn16 6inch EPDM Expansion Joint Carbon Steel Flexible Joint Flange 0
No Name Material
1Outer/inner rubberEPDM, NR, NBR
2FrameNylon cord
3Pressurized ringSteel wire or stainless steel
4FlangeSS304, SS316, carbon steel, ductile iron, etc
Pn16 6inch EPDM Expansion Joint Carbon Steel Flexible Joint Flange 1
Frequently Asked Questions
Where is your nearest loading port?
Shanghai, Qingdao or Tianjin in China.
Can I visit your factory before ordering?
Yes, welcome to our factory to check the quality.
What is the minimum order quantity for this product?
Our MOQ is one piece, it depends on the product type and the customer's needs.
How can you guarantee the quality or any warranty?
If any quality problems during use, all the products can be returned or according to consumer's requests.
Can I only buy ball without the flange?
Yes, and the price will be cheaper. For small diameter rubber joint, we have goods in stock and we can offer you a free for your test, but for large diameter rubber joint you need order.
