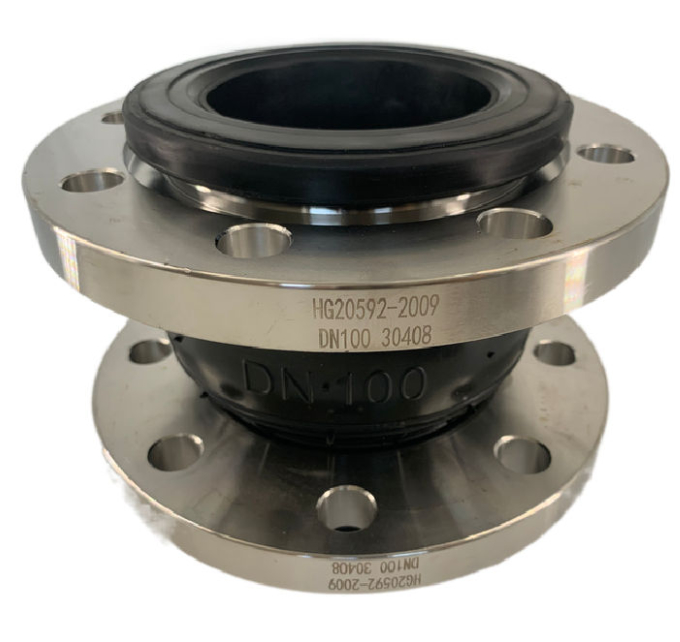

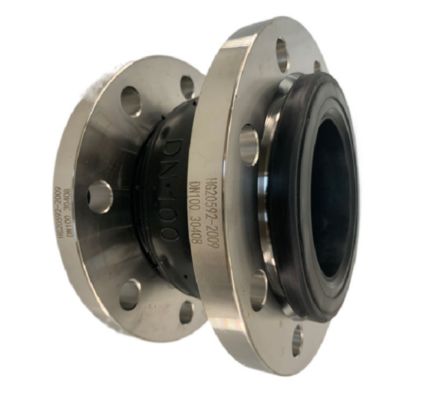

SS30408 Flange Type Malaysia Flexible DN100 Bellows PN16 Rubber Expansion Joint
Product Overview
The DN100 PN16 Flexible Rubber Expansion Joint with SS30408 flanges is designed for high-performance pipeline systems that require vibration absorption, noise reduction, and thermal expansion compensation. Engineered with a high-strength rubber bellows and corrosion-resistant stainless steel 304 flanges, this unit ensures excellent durability and leak-free operation under pressure.
Ideal for the Malaysian market and Southeast Asian industrial standards, this flange-type flexible connector is widely used in water treatment plants, HVAC systems, chemical pipelines, and other industrial applications.
Key Features
- Flange Material: Stainless Steel SS30408 (GB equivalent to ASTM 304)
- Working Pressure: PN16 / 16 Bar / 232 PSI
- Nominal Diameter: DN100 (4 inches)
- Flexible Structure: High-elasticity rubber bellows for axial, lateral, and angular movement
- Corrosion Resistant: SS304 flanges resist rust, ideal for outdoor and wet environments
- Easy Installation: Standard flange ends suitable for quick connection
- Export Grade: Designed to meet common Malaysia and international project requirements
Technical Specifications
| Specification |
Details |
| Product Name |
Rubber Expansion Joint |
| Nominal Size |
DN100 (4") |
| Pressure Rating |
PN16 (16 bar / 1.6MPa) |
| Bellows Material |
EPDM / NBR / Neoprene / Customized |
| Flange Material |
SS30408 (Stainless Steel 304) |
| Connection Type |
Flanged - Raised Face (RF) |
| Temperature Range |
-10°C to +120°C (varies by rubber type) |
| Movement Capability |
Axial ±10mm, Lateral ±12mm |
| Design Standard |
GB / DIN / ANSI / JIS (Custom available) |
Applications
This SS304 flange type rubber joint is commonly used in:
- Water supply and drainage systems
- Fire protection pipelines
- HVAC & air conditioning ducting
- Chemical and petrochemical industries
- Marine pipelines and pump systems
- Industrial machinery for vibration isolation
Benefits
Reduces noise and vibration in pipeline
Compensates for thermal expansion and misalignment
Long service life with corrosion-resistant flanges
Flexible design absorbs shock and movement
Fast installation, minimal maintenance
Packing & Delivery
Packing: Standard export wooden cases or pallets
Delivery Time: 5-15 working days depending on quantity
Shipping: By sea, air, or express (DHL/FedEx)
Get a Quote
Looking for a reliable supplier of stainless steel flange rubber joints for your Malaysia or Southeast Asia project?
Contact us now for a quick quote, technical datasheet, or customized solution!
Frequently Asked Questions
Q1: What is the maximum working pressure of this joint?
A1: The PN16 rating means it supports up to 16 bar (232 PSI) under standard conditions.
Q2: Can I use this in seawater or chemical applications?
A2: Yes. For seawater, EPDM rubber is recommended. For chemical media, please confirm with our technical team for the right rubber type.
Q3: Do you support OEM or logo printing?
A3: Yes, we provide OEM services including logo customization and packaging design for bulk orders.
Q4: Is this product certified?
A4: Upon request, we can provide ISO 9001, CE, and other relevant certificates for export compliance.
