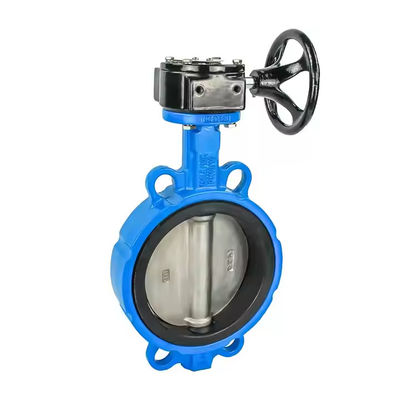

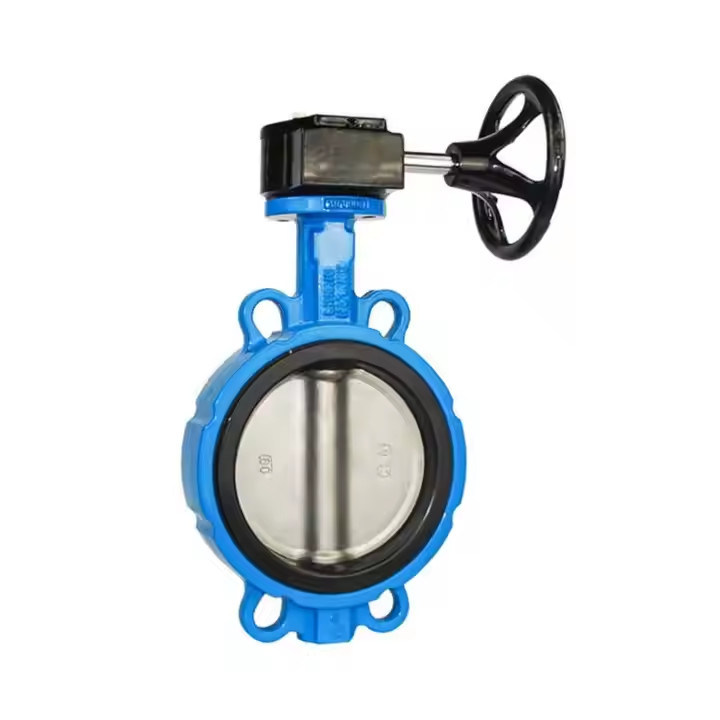

D371X-16Q Turbine Butterfly Valve Wafer Soft Seal Butterfly Valve

D371X-16Q Turbine Butterfly Valve Wafer Soft Seal Butterfly Valve
D371X-16Q Turbine Butterfly Valve Wafer Soft Seal Butterfly Valve D371X-16Q Turbine Butterfly Valve Wafer Soft Seal Butterfly Valve

Large Image :  D371X-16Q Turbine Butterfly Valve Wafer Soft Seal Butterfly Valve

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: D371X
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄16.2-36.4 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-7 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 8000 piece per month
Contact Now Chat Now

D371X-16Q Turbine Butterfly Valve Wafer Soft Seal Butterfly Valve

Description
Power: Manual Temperature Of Media: Normal Temperature, Low Temperature
Size: DN50 - DN600mm Drawing: Offer
O Ring: NBR,EPDM,PTFE Valve Seat: NBR,EPDM,PTFE
Application: General Structure: Butterfly
Warranty: 1 Year
Highlight:

D371X-16Q Turbine Butterfly Valve

,

Turbine Butterfly Valve Wafer

,

Wafer Soft Seal Butterfly Valve

D371X-16Q Turbine Butterfly Valve Wafer Soft Seal Butterfly Valve
Soft-sealed turbine pair clamp butterfly valve composition
  • Valve body: Provides the structural support of the valve to ensure medium flow.
  • Valve shaft: Connects the valve plate and driving mechanism to transmit rotating power.
  • Valve plate: Controls opening and closing through rotation.
  • Valve seat: Forms a sealing surface with the valve plate to prevent medium leakage.
  • Extension rod: Links the valve plate and driving mechanism to transmit rotating power.
  • Drive mechanism: Includes handle, worm gear, pneumatic or electric devices to provide rotating power.
Features of the D371X Soft Seal Turbine Pair Pinch Butterfly Valve
  • Simple, compact structure with 90° quick-opening rotation
  • Compact and lightweight design for easy installation and maintenance in any position
  • Low operating torque for effortless switching
  • Excellent flow characteristics with straight-line tendency and good adjustment performance
  • Durable construction with up to 10,000 opening/closing cycles
  • Zero-leakage gas test performance with excellent sealing capability
Main dimensions
D371X-16Q Turbine Butterfly Valve Wafer Soft Seal Butterfly Valve 0
Boundary dimensions and connection specifications
HO A B 0.6MPa 1.0MPa 1.6MPa
DO n-d DO n-d DO n-d
3061802001104-141254-181254-18
3211802001304-141454-181454-18
3461802001504-181608-181608-18
3871802001704-181808-181808-18
4111802002008-182108-182108-18
4472702802258-182408-222408-22
5722702802808-182958-2229512-22
64627028033512-1835012-2235512-26
73838042039512-2240012-2241012-26
76138042044512-2246016-2247016-26
87745047049516-2251516-2652516-30
93848049055016-2256520-2658520-30
99348049060020-2262020-2665020-33
113148049070520-2672520-3077020-36
147664066081024-2684024-3084024-36
153364066092024-3095024-3395024-39
1655750860102024-30105028-33105028-39
1765850900112028-30116028-36117028-42
1995850900134032-33138032-39139032-48
D371X-16Q Turbine Butterfly Valve Wafer Soft Seal Butterfly Valve 1
Frequently Asked Questions
If products have some quality problem, how would you deal with?
We will be responsible for all the quality problems.
What is the connection of the turbine-to-butterfly valve?
Bolted connections.
What are the fields of work of butterfly valves?
Urban construction, chemical, petroleum, pharmaceutical and other fields.
How long will you give me the reply?
We will contact you in 6 hours as soon as we can.
Can we produce according to customer requirements?
Yes, the above specifications are standard specifications, we can design and manufacture according to requirements.
Can I choose different materials?
Yes, the material can be selected according to your requirements.
