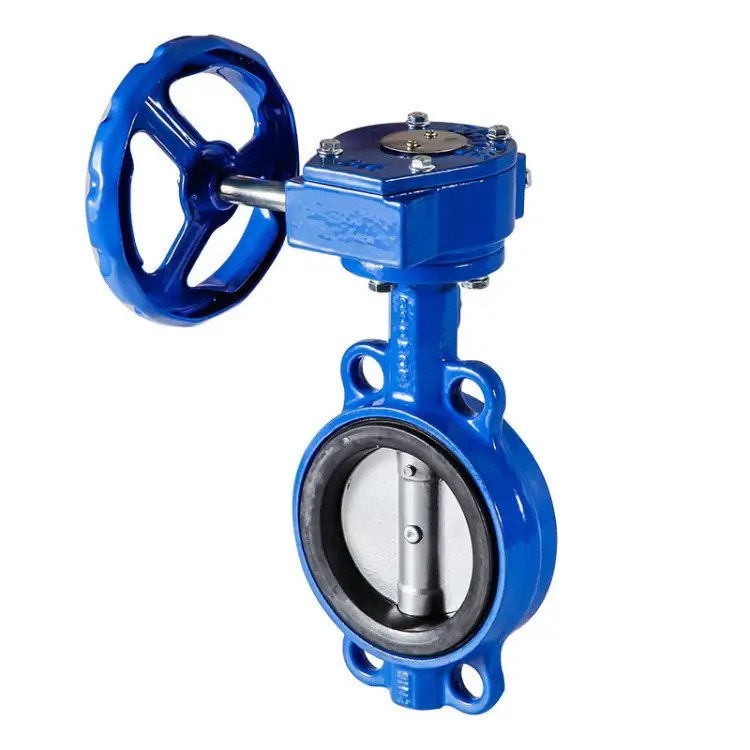

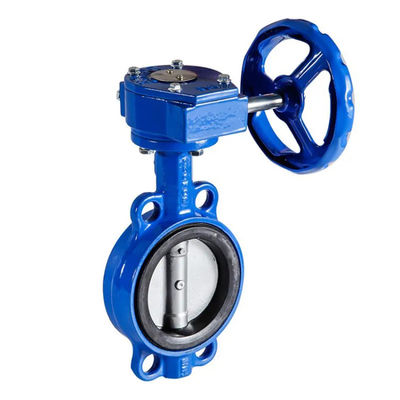

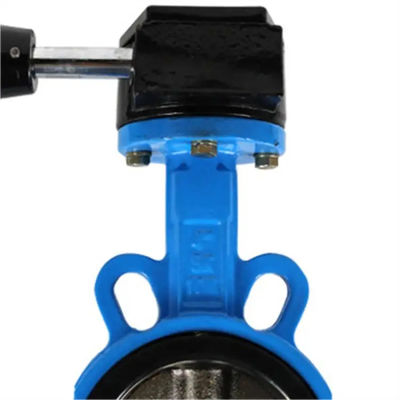

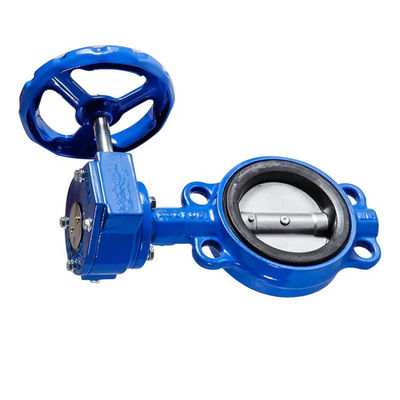

1. Butterfly Plate Positioning
The main component is a disc-shaped butterfly plate installed in the middle position of the valve through bearings, rotating around the valve shaft. When closed, the plate contacts the valve seat to prevent fluid passage. When open, it rotates perpendicular to the seat, allowing fluid flow through the central channel.
2. Fluid Regulation
Flow control is achieved by rotating the butterfly plate from 0° (fully closed) to 90° (fully open), with intermediate positions providing precise flow adjustment.
3. Tightness
The clamping device ensures tight contact between butterfly plate and valve seat when closed, creating an effective seal. Contact surfaces use wear-resistant materials like cemented carbide for durability.
4. Operation Modes
Available in manual (valve shaft rotation), electric (actuator), or pneumatic (compressed air control) operation options.
Q: What are your payment terms?
A: T/T (30% deposit, 70% before delivery) or L/C at sight.
Q: How can you guarantee the quality or any warranty?
A: We conduct pre-delivery checks of specifications, materials, and appearance. Third-party inspections are supported.
Q: Have your products been exported?
A: Yes, to USA, Canada, Australia, Russia, Chile, Panama, Nicaragua, UAE, Saudi Arabia, Egypt, Sri Lanka, Nigeria, Vietnam, Indonesia, Singapore, Greece, Netherlands, Georgia, Romania, Ireland, India and more.
Q: Are you a trading company or manufacturer?
A: We are a manufacturer with over 20 years experience producing butterfly valves, gate valves, duckbill valves, and rubber expansion joints.
Q: Do you provide samples? Is it free or charged?
A: Samples are available free of charge, but shipping costs are covered by the customer.
Q: Can products be manufactured to customer requirements?
A: Yes, we can customize designs and specifications beyond our standard product range.
