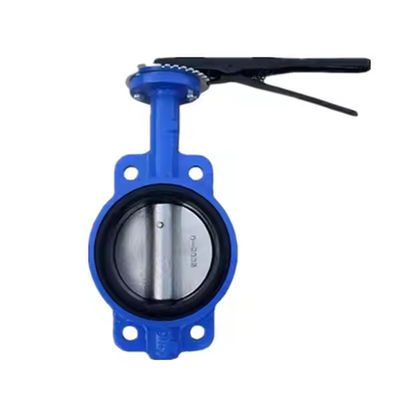

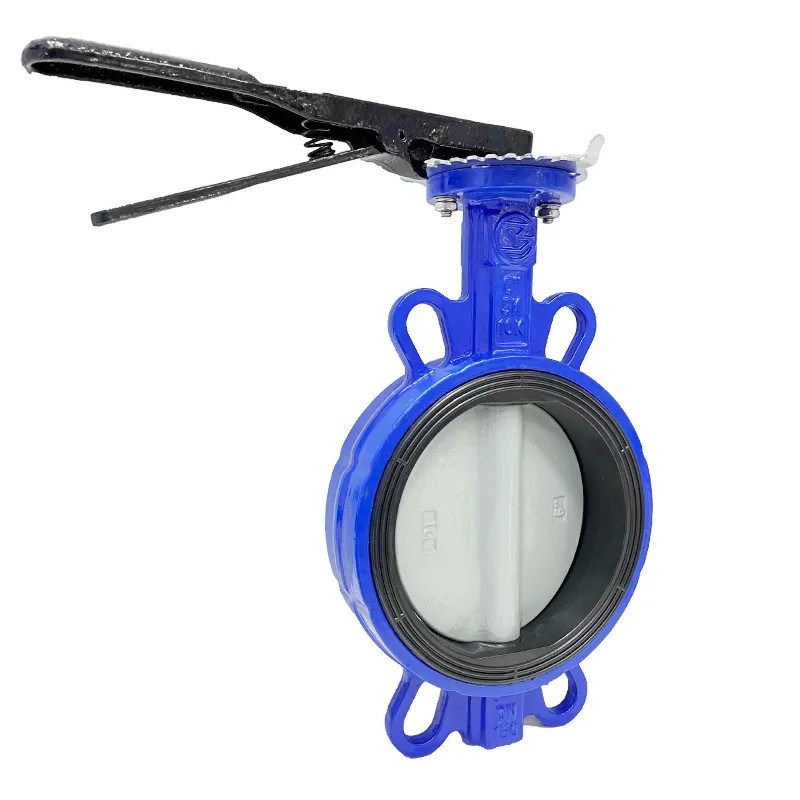

PN10 PN16 2 Inch Butterfly Valve Handle Wafer Cast Iron Manual Butterfly Valve

Large Image : PN10 PN16 2 Inch Butterfly Valve Handle Wafer Cast Iron Manual Butterfly Valve

Product Details:

Place of Origin:	Henan,China
Brand Name:	Liang He
Certification:	ISO 9001
Model Number:	D71X

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	＄13.6-61.9 per set
Packaging Details:	cartons,wooden cases
Delivery Time:	3-7day
Payment Terms:	T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability:	6000 piece per month

Contact Now Chat Now

PN10 PN16 2 Inch Butterfly Valve Handle Wafer Cast Iron Manual Butterfly Valve

Description

Application Field:	Municipal Construction, Water Treatment, Electricity	Temperature Of Media:	High Temperature, Low Temperature, Medium Temperature, Normal Temperature
Advantage:	Wear Resistance And High Performance	Colour:	Blue
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Pressure:	PN10/PN16	Material:	Ductile Iron
Type:	Butterfly Valves
Highlight:	PN16 2 Inch Butterfly Valve , PN10 2 Inch Butterfly Valve , Cast Iron Manual Butterfly Valve

PN10 PN16 2 Inch Butterfly Valve Handle Wafer Cast Iron Manual Butterfly Valve

2 Inch Handle Wafer Type Cast Iron Manual Butterfly Valve

How the product works

A handle butterfly valve is a flow control device that uses a disc as a shut-off mechanism, designed to regulate the flow of gases, liquids, and particles. By turning the handle, the attached bearing rotates the disc along the pipe axis. Adjusting the disc angle relative to the pipe enables precise flow control, allowing for complete shut-off, regulation, or adjustment of medium flow rates.

The medium for which the product is suitable

Water: Suitable for all water types including clean water and sewage
Air: Designed for ventilation and gas delivery systems
Steam: Compatible with industrial steam and heating systems
Gas: Ideal for gas pipelines and distribution systems
Oil products: Suitable for petroleum and chemical industry applications
Other media: Resistant to corrosive media including brine, nitric acid, and sodium chloride

The field of work in which the product is applicable

Water supply and drainage: Fluid control in municipal water systems
Chemical industry, petroleum: Liquid and gas control in production processes
Natural gas: Transmission pipeline control systems
Food processing: Water and gas control in food production
Electric power, light textile, papermaking: Industrial flow control applications

Product parameters

NO	Name	Material
1	Body	CI
2	Bushing	PTFE
3	Seat	NBR
4	Stem	SS410
5	Disc	CF8/DI
6	Pin	SS416
7	Bushing	PTFE
8	"O"ring	NBR
9	Nut	SS201
10	Bolt	SS201
11	Handle	Malleable Cast iron

Size	H1	H2	H3	L	L1	φ D	φ D1	φ d
50	70	145	27	43	220	65	50	8
65	76	153	27	46	220	65	50	8
80	99	161	27	46	220	65	50	8
100	108	170	27	52	255	90	70	10
125	126	190	27	56	255	90	70	10
150	137	205	27	56	255	90	70	10
200	174	237	40	60	358	125	102	12

Product Details

Inventory display

Why choose us?

1. Experienced staff ensure smooth export operations and comprehensive pre-sale, during-sale, and after-sale service

2. Custom manufacturing capabilities with regular production progress updates

3. High production output for faster delivery times

4. Factory-direct pricing eliminates middlemen for best value

5. Professional after-sales support for prompt quality issue resolution
