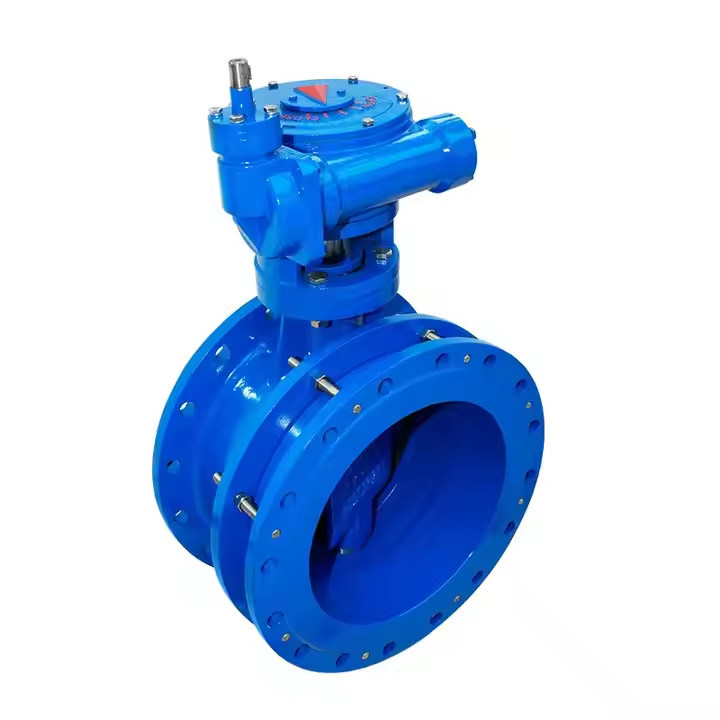

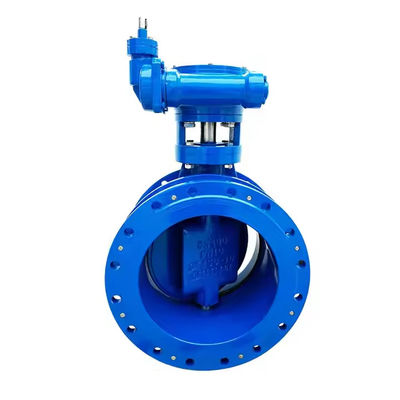

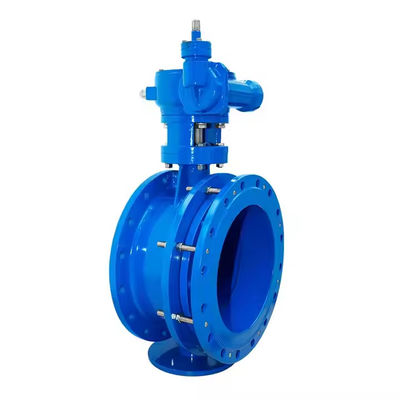

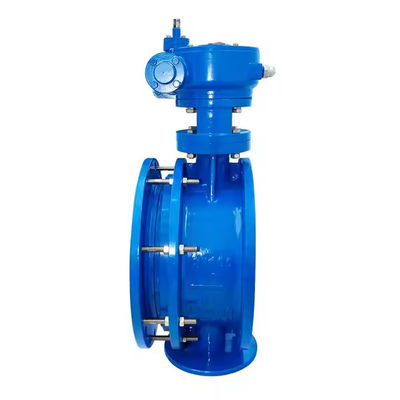

OEM Double Eccentric Flanged Butterfly Valve EPDM Seat PN16 Turbine Cast Steel

OEM Double Eccentric Flanged Butterfly Valve EPDM Seat PN16 Turbine Cast Steel
OEM Double Eccentric Flanged Butterfly Valve EPDM Seat PN16 Turbine Cast Steel OEM Double Eccentric Flanged Butterfly Valve EPDM Seat PN16 Turbine Cast Steel OEM Double Eccentric Flanged Butterfly Valve EPDM Seat PN16 Turbine Cast Steel OEM Double Eccentric Flanged Butterfly Valve EPDM Seat PN16 Turbine Cast Steel

Large Image :  OEM Double Eccentric Flanged Butterfly Valve EPDM Seat PN16 Turbine Cast Steel

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: SD343H
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄52.3-87.6 per set
Packaging Details: cartons,wooden cases
Delivery Time: 1-7 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 6000 piece per month
Contact Now Chat Now

OEM Double Eccentric Flanged Butterfly Valve EPDM Seat PN16 Turbine Cast Steel

Description
Color: Blue Standard: DIN/ANSI/JIS
Trademark: Customized Applicable Media: Water, Steam, Gas, Oil, Etc
Body Material: Ductile Iron,Stainless Steel Fastener: Carbon Steel,Stainless Steel
Connection: Flange Connection Temperature Of Media: Normal Temperature
OEM: Available
Highlight:

OEM Double Eccentric Flanged Butterfly Valve

,

Double Eccentric Flanged Butterfly Valve EPDM

,

PN16 double eccentric butterfly valve

EPDM Seat PN16 Turbine Cast Steel Manual Double Eccentric Flange Butterfly Valve
Product Introduction

Turbine flange butterfly valve (also known as turbine flange flap valve) generally adopts three eccentric multi-level metal hard seal structure. Widely used in metallurgy, electric power, petrochemical, water supply and drainage, and municipal construction industrial pipelines with medium temperatures up to 425°C, for flow regulation and fluid control.

The valve features a triple eccentric structure with valve seat and disc plate sealing surfaces made of different hardness stainless steel, offering excellent corrosion resistance and extended service life.

Product Advantages
  • Compact and lightweight design for easy installation, maintenance, and operation in any position
  • Simple structure with low operating torque and quick 90-degree rotation opening
  • Excellent flow characteristics with good regulation performance
  • Pinless structure connection between butterfly plate and valve stem eliminates potential leakage points
  • Replaceable seals ensure reliable bidirectional sealing
  • Customizable butterfly plate coatings available (nylon or PTFE upon request)
  • Multiple connection options: flange or clamp connection
  • Flexible actuation: manual, electric, or pneumatic operation
Product Details
OEM Double Eccentric Flanged Butterfly Valve EPDM Seat PN16 Turbine Cast Steel 0
Component Materials
NO Name Material
1 Valve body QT450
2 Sealing seat EPDM
3 Disc plate CF8
4 Pin 304
5 Stem 420
6 Bushing Compound material
7 Sealing sleeve NBR
8 Shaft sleeve Copper alloy
9 Key 35
10 Worm gear unit Assembly
11 Bolt 201
12 Spring washer 201
Technical Specifications
DN (mm) φ D N-φE A B L φ C
50 125 4-19 133 83 108 165
65 145 4-19 145 86.5 112 185
80 160 8-19 145.5 90 114 200
100 180 8-19 160.5 107 127 220
125 210 8-19 172.5 115.5 140 250
150 240 8-23 197.5 132.5 140 285
200 295 12-23 204.5 163 152 340
250 355 12-28 275.5 211 165 405
300 410 12-28 303 220 178 460
350 470 16-28 329.5 247.5 190 520
400 525 16-31 340 300 216 580
450 585 20-31 383 280 222 640
500 650 20-34 355 430 229 715
Product Applications
OEM Double Eccentric Flanged Butterfly Valve EPDM Seat PN16 Turbine Cast Steel 1
Frequently Asked Questions
Q: Can I request to change the form of packaging and transportation?
A: Yes, we can accommodate custom packaging and transportation requests, with any additional costs to be borne by the customer.
Q: Can I request to advance the shipment?
A: Early shipment depends on current inventory availability in our warehouse.
Q: Can you produce the products according to my own drawings?
A: Yes, we can manufacture products to your specifications based on provided drawings.
Q: Can I have my own Logo on the product?
A: Custom logos are available with customer-provided drawings, with associated costs to be covered by the customer.
Q: What are the standards for flanges?
A: We support multiple flange standards including ANSI, BS, DIN, and JIS.
Q: Can I choose a different material?
A: Yes, we offer various material options including ductile iron, cast steel, and stainless steel.
