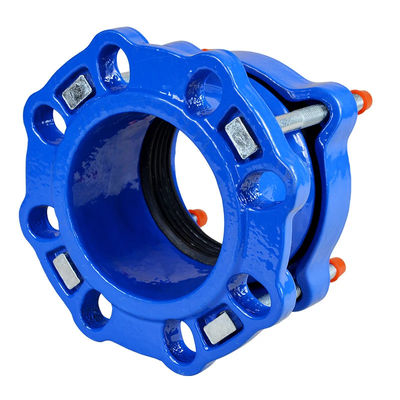

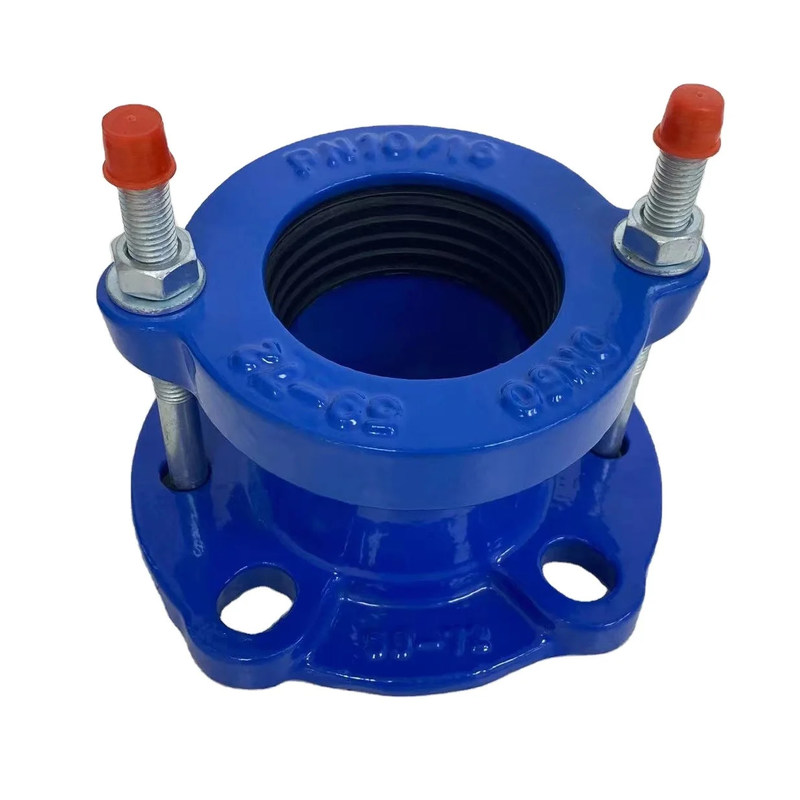

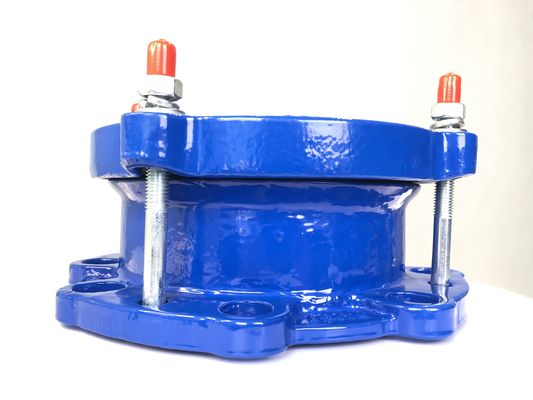

DN50-DN4000 Hdpe To Steel Flange Adapter Ductile Iron Universal Coupling Fitting

DN50-DN4000 Hdpe To Steel Flange Adapter Ductile Iron Universal Coupling Fitting
DN50-DN4000 Hdpe To Steel Flange Adapter Ductile Iron Universal Coupling Fitting DN50-DN4000 Hdpe To Steel Flange Adapter Ductile Iron Universal Coupling Fitting DN50-DN4000 Hdpe To Steel Flange Adapter Ductile Iron Universal Coupling Fitting

Large Image :  DN50-DN4000 Hdpe To Steel Flange Adapter Ductile Iron Universal Coupling Fitting

Product Details:
Place of Origin: China
Brand Name: Lianghe
Certification: ISO9001
Model Number: AF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $16.8-$28.8
Packaging Details: Carton case or Wooden case
Delivery Time: 5-15 work days
Payment Terms: T/T, D/A, D/P, Western Union, L/C, MoneyGram
Supply Ability: 8000 set per month
Contact Now Chat Now

DN50-DN4000 Hdpe To Steel Flange Adapter Ductile Iron Universal Coupling Fitting

Description
Nominal Size: DN50-4000 Body Material: Carbon Steel, Ductile Iron, Stainless Steel, Etc
Applicable Temperature: -10~70℃ Working Pressure: PN10/16
Applicable Media: Portable Waterr, Neutral Liquids, Sewage Material Of Gaskets: EPDM
Application: Connect Pipes, Valves, Etc
Highlight:

DN4000 Hdpe To Steel Flange Adapter

,

DN50 Hdpe To Steel Flange Adapter

,

DN50 Ductile Iron Universal Coupling

DN50-DN4000 HDPE to Steel Flange Adapter Ductile Iron Universal Coupling Fitting
Product Description
DN50-DN4000 Hdpe To Steel Flange Adapter Ductile Iron Universal Coupling Fitting 0

Flanged adaptors are designed for pipelines as a wide tolerance system. This universal fitting accommodates most standard pipe materials, significantly reducing the number of dedicated flanged adaptors needed for maintenance purposes. When connecting PE pipes, pipe inserts must be fitted to the PE pipes for proper installation.

Product Parameters
DN50-DN4000 Hdpe To Steel Flange Adapter Ductile Iron Universal Coupling Fitting 1
NO Name Material Quantity
1 Gland GJS500-7 1
2 Rubber sealing ring EPDM 1
3 Bolt Q235B, SS304, SS316L, etc N
4 Body GJS500-7 1
5 Plastic cap Plastic N
Main Connecting Dimensions of Flange Adaptor
Nominal diameter OD range (mm) L(mm) D(mm) Bolt Quantity
DN50 59-72 75 165 M12*130 2
DN65 72-85 75 185 M12*130 2
DN80 88-103 76 185 M12*130 4
DN100 93-117 78 218 M12*130 4
DN100 105-122 78 218 M12*130 4
DN100 108-128 78 218 M12*130 4
DN125 125-140 78 250 M12*130 4
DN125 132-146 78 250 M12*130 4
DN125 138-153 78 250 M12*130 4
DN150 155-175 80 272 M12*130 4
DN150 158-182 80 272 M12*130 4
DN175 192-210 85 312 M12*130 4
DN200 218-235 85 335 M12*130 4
DN225 235-252 85 355 M12*130 4
DN225 250-267 85 405 M12*130 4
DN250 265-280 90 405 M12*130 6
DN250 272-289 90 405 M12*130 6
DN300 315-332 90 460 M12*130 6
DN300 322-339 90 460 M12*130 6
DN350 351-368 110 510 M16*180 8
DN350 374-391 110 510 M16*180 8
DN350 386-415 110 510 M16*180 8

The above data is for reference only, and we can also customize it according to your needs.

Frequently Asked Questions
Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement.
Q: What are your payment terms?
A: T/T (30% as deposit, the rest 70% will be paid before delivery), L/C at sight.
Q: Can I visit your factory before the order?
A: Yes, welcome to our factory to check the quality.
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.
Q: Do you accept small quantity order?
A: Of course we do.
Q: Can we choose different material?
A: Yes, the material can be chosen according to your requirement.
Q: What is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 days for delivery, according to your order quantity.
Q: What's your packing?
A: Carton cases inside, export wooden cases outside.
