DN150 PN10 Ductile Iron Universal Joint Hdpe Pipe Flange Adapter Epoxy Coated

DN150 PN10 Ductile Iron Universal Joint Hdpe Pipe Flange Adapter Epoxy Coated
DN150 PN10 Ductile Iron Universal Joint Hdpe Pipe Flange Adapter Epoxy Coated DN150 PN10 Ductile Iron Universal Joint Hdpe Pipe Flange Adapter Epoxy Coated

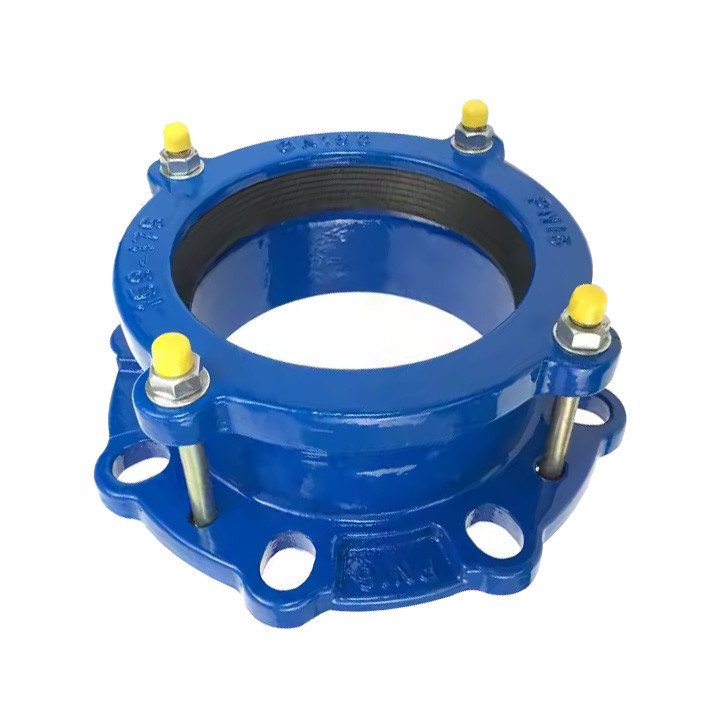

Large Image :  DN150 PN10 Ductile Iron Universal Joint Hdpe Pipe Flange Adapter Epoxy Coated

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: AF
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄23.6-68.2 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-7day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 8000 piece per month
Contact Now Chat Now

DN150 PN10 Ductile Iron Universal Joint Hdpe Pipe Flange Adapter Epoxy Coated

Description
Connection: Flange Surface Treatment: Epoxy Coated
Customized Support: OEM, ODM Working Temperature: -10°C - 70°C
Advantage: Easy To Install Form Of Company: Manufacturer
Flange Standard: EN 1092-2 Rubber Material: NBR,EPDM
Test Standard: EN12266-1
Highlight:

hdpe pipe flange adapter epoxy coated

,

dn150 Flange Adaptor

,

dn150 hdpe pipe flange adapter

DN150 PN10 Ductile Iron Universal Joint HDPE Pipe Flange Adapter (Epoxy Coated)
Product Description
The DN150 PN10 ductile iron universal joint HDPE pipe flange adapter is designed for versatile pipe connections in various industrial applications. This epoxy-coated adapter provides reliable performance and durability.
Ideal Applications
  • Connecting flanges of different materials or specifications (steel, copper, etc.)
  • Special environments including high temperature and chemical corrosion conditions
  • System repairs and retrofits requiring connection of old and new flanges
Key Features
  • Compact design with lightweight construction
  • Simple and quick installation process
  • Effective noise reduction capabilities
  • Excellent temperature adaptation
  • Superior thrust compensation
Product Images

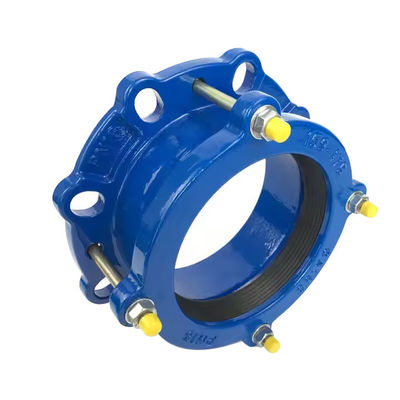

DN150 PN10 Ductile Iron Universal Joint Hdpe Pipe Flange Adapter Epoxy Coated 0 DN150 PN10 Ductile Iron Universal Joint Hdpe Pipe Flange Adapter Epoxy Coated 1
Technical Specifications
Component Specification
Body Material Ductile Iron GGG50/40
Working Pressure PN10/16/25
Working Temperature -10℃ to 70℃
Rubber Sealing Ring EPDM according to EN681-1
Bolt & Nut Galvanized carbon steel / hot dip galvanized steel/dacromet coating steel 4.8/8.8 grade
Coating Standard EN30677 (customization available)
Applications Drinking water, neutral liquids, sewage systems
Dimensional Specifications
Nominal Diameter OD Range (mm) L (mm) D (mm) Bolt Size Quantity
DN50 59-72 75 165 M12*130 2
DN65 72-85 75 185 M12*130 2
DN80 88-103 76 185 M12*130 4
DN100 93-117 78 218 M12*130 4
DN100 105-122 78 218 M12*130 4
DN125 125-140 78 250 M12*130 4
DN150 155-175 80 272 M12*130 4
DN200 218-235 85 335 M12*130 4
DN250 265-280 90 405 M12*130 6
DN300 315-332 90 460 M12*130 6
Industry Applications
DN150 PN10 Ductile Iron Universal Joint Hdpe Pipe Flange Adapter Epoxy Coated 2
  • Petrochemical Industry: Connects diverse pipeline systems for oil, gas, and chemical transmission
  • Power Industry: Ensures stable and safe power transmission through pipeline connections
  • Metallurgical Industry: Facilitates production processes with reliable pipeline connections
  • Shipbuilding: Maintains normal vessel operation through robust pipeline systems
  • Aerospace: Supports critical pipeline connections for aerospace vehicle operations
Related Products
1. Food Grade Rubber Joints
2. Threaded Rubber Joints
3. Pipe Repair Clamp
4. PTFE-Lined Flexible Metal Braided Hose
DN150 PN10 Ductile Iron Universal Joint Hdpe Pipe Flange Adapter Epoxy Coated 3
DN150 PN10 Ductile Iron Universal Joint Hdpe Pipe Flange Adapter Epoxy Coated 4
DN150 PN10 Ductile Iron Universal Joint Hdpe Pipe Flange Adapter Epoxy Coated 5
DN150 PN10 Ductile Iron Universal Joint Hdpe Pipe Flange Adapter Epoxy Coated 6
Factory Display
DN150 PN10 Ductile Iron Universal Joint Hdpe Pipe Flange Adapter Epoxy Coated 7
Customization Process
  1. Submit technical drawings
  2. Customer confirmation of specifications
  3. Receive comprehensive quote including freight
  4. Review packing list
  5. Payment processing and shipment arrangement
