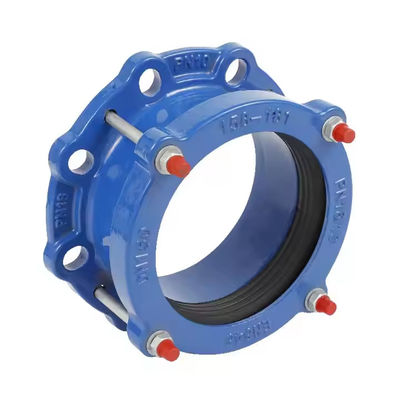

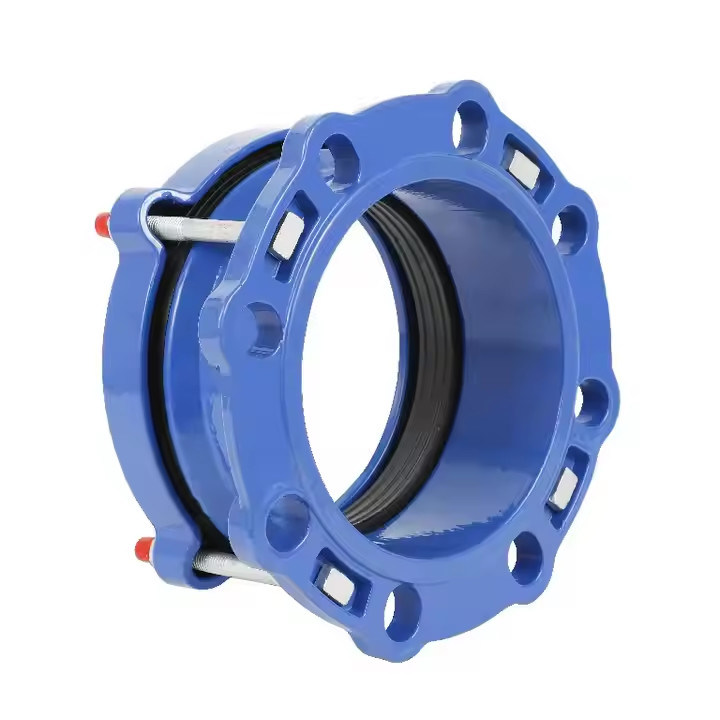

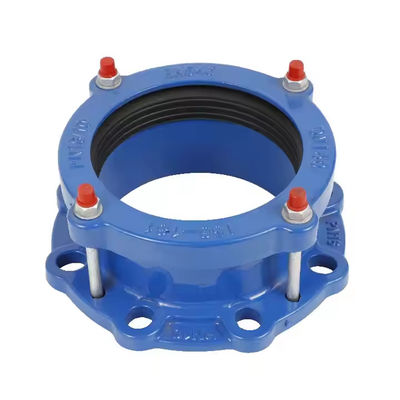

DN1600mm HDPE Flange Adapter Ductile Iron Flange Adapter Stainless Steel Connectors

DN1600mm HDPE Flange Adapter Ductile Iron Flange Adapter Stainless Steel Connectors
DN1600mm HDPE Flange Adapter Ductile Iron Flange Adapter Stainless Steel Connectors DN1600mm HDPE Flange Adapter Ductile Iron Flange Adapter Stainless Steel Connectors DN1600mm HDPE Flange Adapter Ductile Iron Flange Adapter Stainless Steel Connectors

Large Image :  DN1600mm HDPE Flange Adapter Ductile Iron Flange Adapter Stainless Steel Connectors

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: AF
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄24.3-68.2 per set
Packaging Details: cartons,wooden cases
Delivery Time: 1-7 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 10000 piece per month
Contact Now Chat Now

DN1600mm HDPE Flange Adapter Ductile Iron Flange Adapter Stainless Steel Connectors

Description
Warranty: 12 Months Nominal Size: DN50 - DN1600mm
Working Temperature: -10°C — 70°C Drawing: Offer
Material Of Gaskets: EPDM Material Of Body: Carbon Steel，Ductile Iron
Material Of Bolts: Carbon Steel Galvanized Technics: Casting
OEM: Support
Highlight:

DN1600mm HDPE Flange Adapter

,

DN1600mm ductile iron flange adapter

,

HDPE ductile iron flange adapter

DN1600mm HDPE Flange Adapter Ductile Iron Flange Adapter Stainless Steel Connectors
Wide range cast iron universal fittings HDPE and PVC pipe flange adapters stainless steel connectors
How the Product Works
The flange compensation joint is connected with the pipe by bolts to form a whole with a positioning shift. In the event of a temperature change or a subsidence of the foundation, the pipe can be freely expanded or deflected in the middle of the joint, thus achieving automatic compensation. This design not only improves work efficiency, but also has a protective effect on pumps, valves and other equipment.
Key Benefits
  • Axial expansion and contraction: Can accommodate axial expansion and contraction within a certain range to adapt to pipeline thermal expansion and contraction.
  • Offset compensation: Overcomes pipeline offset when docked on different axes, facilitating installation and disassembly.
  • Protection: Reduces blind thrust in pipeline operation and protects against vibration and deformation.
  • Easy installation: Suitable for installation, removal and replacement of water supply/drainage pipelines, pumps, water meters and valves, especially for long-distance pipeline expansion adjustment.
Product Specifications
Parameter Details
Body Ductile Iron GGG50/40
Working pressure PN10/16/25
Working temperature -10℃ to 70℃
Rubber sealing ring EPDM according to EN681-1
Bolt & Nut Galvanized carbon steel / hot dip galvanized steel/dacromet coating steel 4.8/8.8 grade
Coating standard EN30677/support customization
Application Drinking water, neutral liquids, sewage, etc.
Dimensional Specifications
Note: The following table shows partial data. Contact us for special sizes.
Nominal diameter OD range (mm) L(mm) D(mm) Bolt Quantity
DN50 59-72 75 165 M12*130 2
DN65 72-85 75 185 M12*130 2
DN80 88-103 76 185 M12*130 4
DN1600 1668 150 1860 M16*180 20
Application Fields
  • Automotive industry: Transmits engine power to wheels while ensuring stability and efficiency.
  • Agricultural machinery: Adapts to complex working environments while transmitting motor movement to various parts.
  • Industrial equipment: Connects devices while compensating for displacement and offset in industrial automation equipment.
Installation & Maintenance
  • Pre-installation: Loosen pressure plate bolt, extend to installation length, then tighten diagonally to prevent deflection.
  • Fixed bracket: Install fixed brackets at both ends for overhead applications.
  • Adjustment: Adjust according to installation size to ensure leak-free sealing.
Product Display
DN1600mm HDPE Flange Adapter Ductile Iron Flange Adapter Stainless Steel Connectors 0
Technical Drawing
DN1600mm HDPE Flange Adapter Ductile Iron Flange Adapter Stainless Steel Connectors 1
Recommended Products
DN1600mm HDPE Flange Adapter Ductile Iron Flange Adapter Stainless Steel Connectors 2
Rubber duckbill check valve
DN1600mm HDPE Flange Adapter Ductile Iron Flange Adapter Stainless Steel Connectors 3
Bellow expansion joint
DN1600mm HDPE Flange Adapter Ductile Iron Flange Adapter Stainless Steel Connectors 4
Flexible metal braided hose
DN1600mm HDPE Flange Adapter Ductile Iron Flange Adapter Stainless Steel Connectors 5
End face fully sealed rubber expansion joint
DN1600mm HDPE Flange Adapter Ductile Iron Flange Adapter Stainless Steel Connectors 6
Single sphere rubber joint
DN1600mm HDPE Flange Adapter Ductile Iron Flange Adapter Stainless Steel Connectors 7
Double sphere rubber joint
DN1600mm HDPE Flange Adapter Ductile Iron Flange Adapter Stainless Steel Connectors 8
Flange adaptor
DN1600mm HDPE Flange Adapter Ductile Iron Flange Adapter Stainless Steel Connectors 9
Gibault joint
