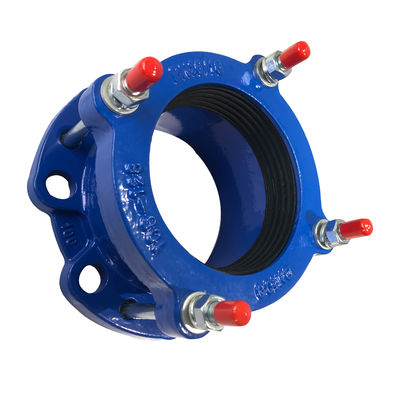

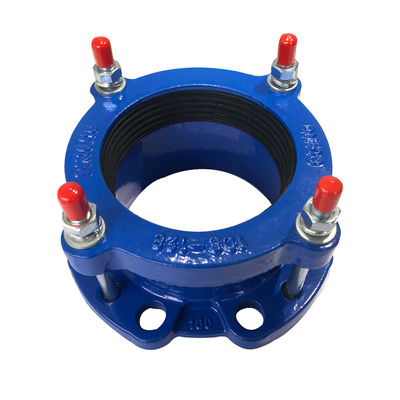

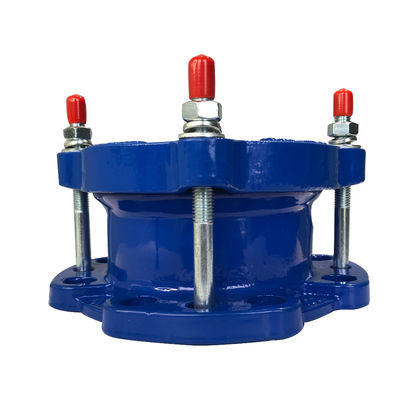

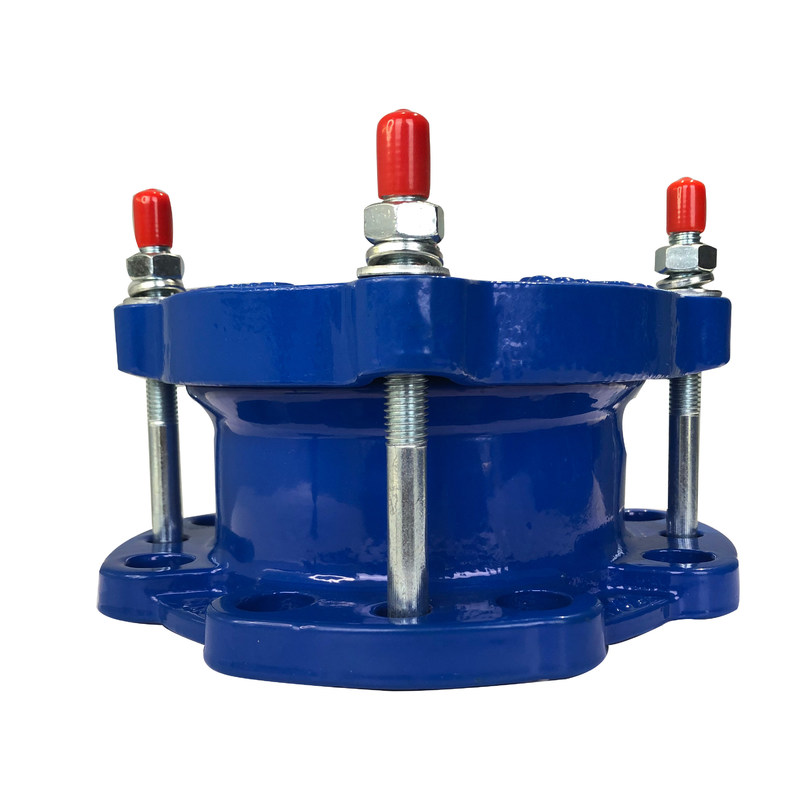

2 Inch Flange Adapter Coupling OEM ODM Cast Iron Flange Adapter

2 Inch Flange Adapter Coupling OEM ODM Cast Iron Flange Adapter
2 Inch Flange Adapter Coupling OEM ODM Cast Iron Flange Adapter 2 Inch Flange Adapter Coupling OEM ODM Cast Iron Flange Adapter 2 Inch Flange Adapter Coupling OEM ODM Cast Iron Flange Adapter

Large Image :  2 Inch Flange Adapter Coupling OEM ODM Cast Iron Flange Adapter

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: AF
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄26.9-95.7 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-7 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 6000 piece per month
Contact Now Chat Now

2 Inch Flange Adapter Coupling OEM ODM Cast Iron Flange Adapter

Description
Customized Support: OEM, ODM Connection: Flange
Application: Pipe Lines Connect Color: Blue
Usage: Water System Surface Treatment: Epoxy Coating
Body Material: Ductile Iron OEM: Provide OEM Services
Pressure: PN10/PN16/PN25
Highlight:

2 Inch Flange Adapter Coupling

,

Flange Adapter Coupling OEM

,

ODM Cast Iron Flange Adapter

2 Inch Flange Adapter Coupling OEM ODM Cast Iron Flange Adapter
Product Description

2 inch flange joint type universal quick connect hydraulic flange adapter

How the Product Works

The flange adapter connects different specifications or types of flanges through its design structure. It consists of a flange connection bolt that secures the flange in place and a gasket that prevents fluid or gas leakage while transmitting pressure and torque to ensure connection strength and reliability.

Product Structure Features
  • Connection: One end connects to pipe/equipment via welding or threading, while the other end features a flange face with bolt holes.
  • Material: Primarily cast iron (casting category), with options including carbon steel and stainless steel.
  • Sealing: Used with gaskets to ensure tight connections and prevent leakage.
  • Flexibility: Enables connection between different standard or size flanges.
  • Economy: Cost-effective solution that eliminates need for complete flange system replacement.
Product Features
  • Standardized interface
  • Multiple material options
  • High strength and durability
  • Easy installation
Product Parameters
2 Inch Flange Adapter Coupling OEM ODM Cast Iron Flange Adapter 0
NO Name Material Quantity
1 Gland GJS500-7 1
2 Rubber sealing ring EPDM 1
3 Bolt Q235B,SS304,SS316L, etc N
4 Body GJS500-7 1
5 Plastic cap Plastic N
Nominal diameter OD range (mm) L(mm) D(mm) Bolt Quantity
DN5059-7275165M12*1302
DN6572-8575185M12*1302
DN8088-10376185M12*1304
DN10093-11778218M12*1304
DN100105-12278218M12*1304
DN100108-12878218M12*1304
DN125125-14078250M12*1304
DN125132-14678250M12*1304
DN125138-15378250M12*1304
DN150155-17580272M12*1304
DN150158-18280272M12*1304
DN175192-21085312M12*1304
DN200218-23585335M12*1304
DN225235-25285355M12*1304
DN225250-26785405M12*1304
DN250265-28090405M12*1306
DN250272-28990405M12*1306
DN300315-33290460M12*1306
DN300322-33990460M12*1306
DN350351-368110510M16*1808
DN350374-391110510M16*1808
DN350386-415110510M16*1808
DN400400-429110580M16*1808
DN400410-436110580M16*1808
DN400418-435110580M16*1808
DN400425-442110580M16*1808
DN450455-472115640M16*18010
DN450476-493115640M16*18010
DN500500-532120690M16*18010
DN500527-544120690M16*18010
DN600600-630130820M16*18010
DN600630-647130820M16*18010
Product Application Scenarios
  • Chemical industry
  • Power industry
  • Metallurgical industry
  • Shipbuilding industry
  • Aerospace industry
Packaging

Inner: plastic film packaging.
Outer: standard export wooden case or pallet packaging.

Shipping
  • By Air or By Sea for batch goods for LCL/FCL; Airport/Port receiving
  • Customers specified freight forwarders or negotiable shipping methods
  • Delivery Time: a. in stock: immediately; b. sample: 2 days; c. OEM/ODM: 3-15 DAYS
Inventory Display
2 Inch Flange Adapter Coupling OEM ODM Cast Iron Flange Adapter 1
Product Composition
2 Inch Flange Adapter Coupling OEM ODM Cast Iron Flange Adapter 2
FAQ
Q: What is the experimental standard for flange adapters?
A: EN 12266-1.
Q: What are the materials of the flange adapter sealing ring?
A: There are EPDM rubber materials, nitrile rubber materials, etc.
Q: What is the coating standard for flange adapters?
A: EN 30677, which can also be customized according to customer requirements.
Q: What are the flange materials of the flange adapter?
A: The most common are ductile iron, as well as carbon steel and stainless steel.
Q: What are the standards for flanges?
A: We have ANSI, BS, JIS, DIN and other different materials.
Q: Can the caliber of the flange adapter be customized?
A: Yes, the above are standard sizes, we can customize according to customer requirements.
