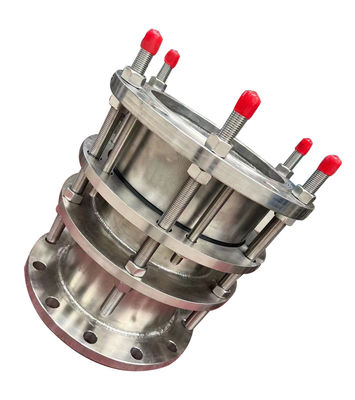

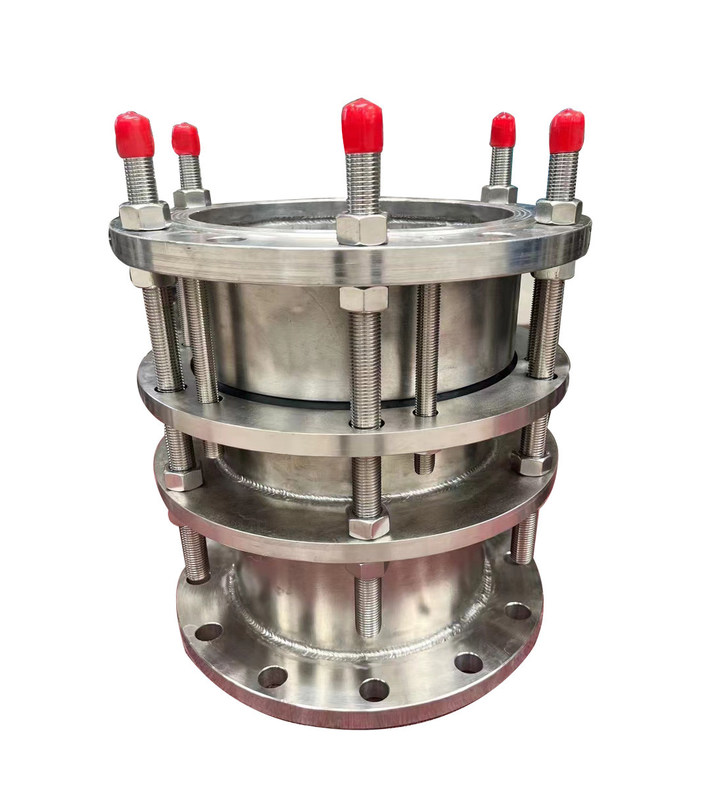

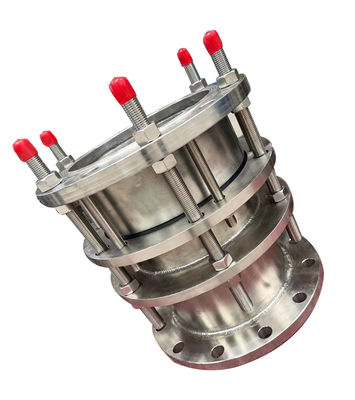

DN65-DN3200mm Stainless Steel Dismantling Joint SS316L Customized

DN65-3200mm SS316L stainless steel double flange metal expansion joint

Expansion joints are primarily used in installation and maintenance, adjusted according to on-site requirements. They return axial thrust to the piping system during operation, improving efficiency while protecting pipeline equipment such as pumps and valves.

• Gland: Features thickened pressure plate with steel ring reinforcement for enhanced sealing and aesthetics
• Middle plate: Precision-turned with straight outer circumference for superior finish
• Nuts: Custom-sized bolts and nuts designed to standard flange specifications with anti-pull-off protection
• Welding: Post-weld finishing ensures no internal sand holes or cracks for reliable operation
• Grinding: Strict welding standards with manual polishing for clean, uniform welds free of slag

Note: The above data represents partial specifications. Contact us for custom sizes.

• Drainage piping systems
• Petroleum and chemical industries
• Metallurgical applications
• Power generation and related fields

For installation, connect the double flange limit expansion joint to both side flanges. Adjust the product length to match pipe/flange connections, tighten gland bolts evenly in diagonal sequence, then set limit nuts to allow controlled pipeline expansion/contraction while maintaining safety. Consider pipeline pressure, temperature, and media characteristics to ensure proper joint performance.
