ANSI 150LB Rubber Duckbill Check Valve Back Pressure Duck Bill Valve

ANSI 150LB Rubber Duckbill Check Valve Back Pressure Duck Bill Valve
ANSI 150LB Rubber Duckbill Check Valve Back Pressure Duck Bill Valve ANSI 150LB Rubber Duckbill Check Valve Back Pressure Duck Bill Valve

Large Image :  ANSI 150LB Rubber Duckbill Check Valve Back Pressure Duck Bill Valve

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: XH-81
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄19.6-26.7 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-7day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 8000 piece per month
Contact Now Chat Now

ANSI 150LB Rubber Duckbill Check Valve Back Pressure Duck Bill Valve

Description
Technics: Casting Shape: Equal
Port Size: Customizable Temperature Of Media: Normal Temperature
Rubber Material: EPDM Or According To Your Requirements Work Locations: Coastal, Beach, Marina, Reservoir, Municipal Flooding, Sewage
Type: Drain Valve
Highlight:

150LB Rubber Duckbill Check Valve

,

ANSI 150LB Rubber Duckbill Valve

,

Back Pressure Duck Bill Valve

ANSI 150LB Rubber Duckbill Check Valve Back Pressure Duck Bill Valve
Product Description

ANSI 150LB Back-Pressure Flexible Non-Pressure Valve for Industrial Blowdown

Benefits
  • Cost-effective: Duckbill valves offer superior cost-effectiveness with durable rubber materials that often outlast metal check valves.
  • Easy installation: Flexible installation options adapt to various environments with simple repair and maintenance.
  • Light weight and small size: Compact design facilitates easy transportation and handling.
  • Automatic operation: Self-actuating mechanism operates without external power or manual intervention.
  • Corrosion resistance: Full rubber construction withstands various corrosive media.
Features
  • Stainless steel clamp type provides excellent corrosion resistance.
  • Clamp system replaces traditional flanges and bolts for easier installation.
  • Allows compensation for pipeline displacement caused by thermal expansion and contraction.
Technical Specifications
Name ANSI 150LB Back-Pressure Flexible Non-Pressure Valve for Industrial Blowdown
Size DN50-DN1600
Working temperature -20℃-150℃
Material of rubber EPDM, NR, NBR or requested
Main Connection Sizes
Model Pipe Nominal Diameter Length (mm) High (mm) Flange outside diameter
XH8150-125-X 50 125 47 150
XH8180-175-X 80 175 72 200
XH81100-225-X 100 225 97 225
XH81150-350-X 150 350 147 275
XH81200-375-X 200 375 197 338
XH81250-475-X 250 475 247 400
XH81300-560-X 300 560 297 485
XH81350-625-X 350 625 344 525
XH81400-700-X 400 700 394 588
XH81450-780-X 450 780 444 625
XH81500-880-X 500 880 494 688
XH81600-1000-X 600 1000 494 800
XH81700-1000-X 700 1000 694 969
XH81800-1260-X 800 1260 794 1080
XH81900-1400-X 900 1400 894 1150
XH811000-1520-X 1000 1520 988 1250
XH811200-1725-X 1200 1725 1188 1485

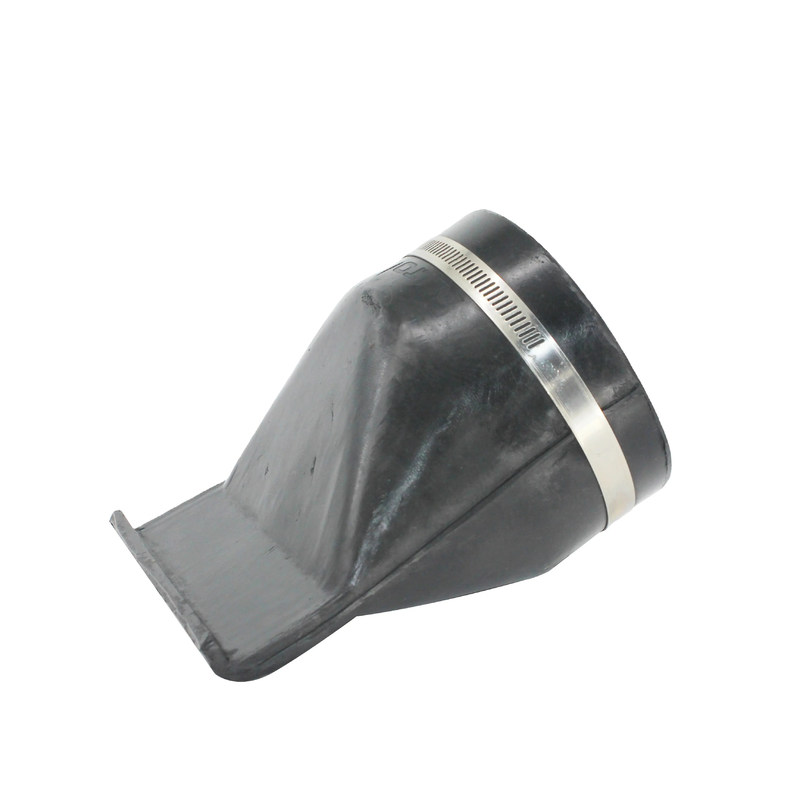

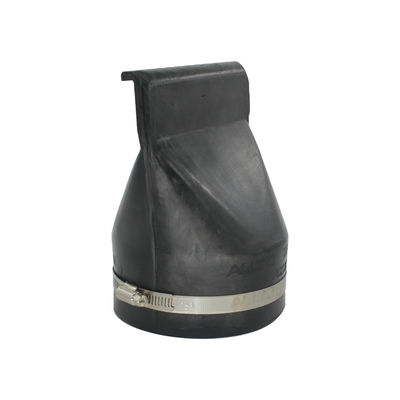

Product Images
ANSI 150LB Rubber Duckbill Check Valve Back Pressure Duck Bill Valve 0 ANSI 150LB Rubber Duckbill Check Valve Back Pressure Duck Bill Valve 1
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer of duckbill valves, rubber expansion joints, bellows, flange adapters and flanges with more than 20 years of experience.
Q: Can I choose different materials of clamp?
A: Of course, we have stainless steel, carbon steel, etc., which can be customized according to your requirements.
Q: What is the applicable temperature of the duckbill valve?
A: -20℃-150℃.
Q: In what way are duckbill valves connected?
A: It's a clamp.
Q: How much pressure can it withstand?
A: 1.0-2.5Mpa.
Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.
