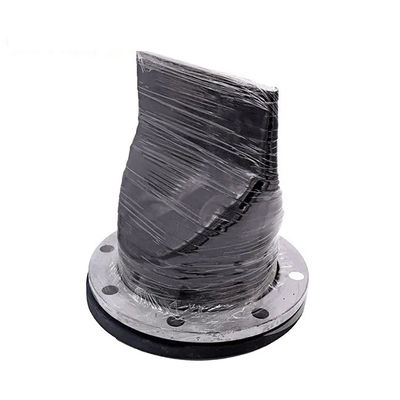

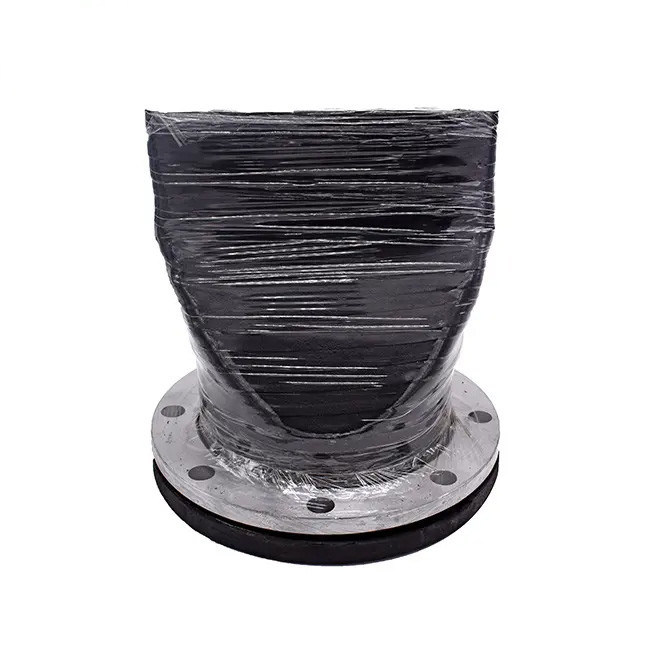

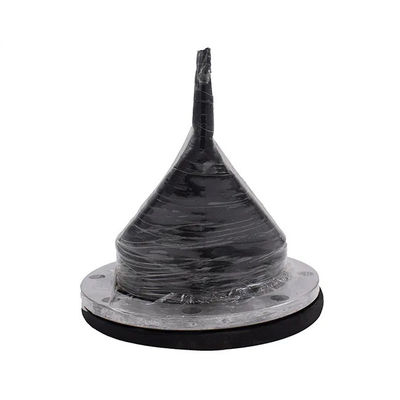

DN100mm Flanged Duckbill Check Valve OEM Rubber Duckbill Valve

DN100mm Flanged Duckbill Check Valve OEM Rubber Duckbill Valve
DN100mm Flanged Duckbill Check Valve OEM Rubber Duckbill Valve DN100mm Flanged Duckbill Check Valve OEM Rubber Duckbill Valve DN100mm Flanged Duckbill Check Valve OEM Rubber Duckbill Valve

Large Image :  DN100mm Flanged Duckbill Check Valve OEM Rubber Duckbill Valve

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: XH-41
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄14.3-18.6 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-7 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 8000 piece per month
Contact Now Chat Now

DN100mm Flanged Duckbill Check Valve OEM Rubber Duckbill Valve

Description
Warranty: 1 Year Material Of Body: NR, EPDM, NBR
Working Site: Coast, Beach, Dock, Reservoir, Municipal Flood Discharge, Sewage OEM: Support
Product Drawing: Offer Stock: A Large Of Stock
Flange Standard: EN,DIN,ANSI,JIS,GOST
Highlight:

Rubber Flanged Duckbill Check Valve

,

DN100mm Flanged Duckbill Check Valve

,

OEM Rubber Duckbill Valve

DN100mm Flanged Duckbill Check Valve OEM Rubber Duckbill Valve
EPDM flange type DN100 duckbill rubber check valve for sewage discharge corrosion abrasion weather resistance
Installation Method
  • Prepare for installation: Ensure the installation environment meets requirements, including checking flange caliber, pressure level, material, and rubber body suitability. Consider temperature, humidity, and medium factors.
  • Check the pipe end face: Ensure inclination deviation doesn't exceed 1% of pipe outer diameter or 3mm for flange connection tightness and safety.
  • Flange connection: Use a flange angle ruler to check verticality, ensure concentric connection, and free bolt penetration. Flange parallelism deviation shouldn't exceed 1.5/1000 of flange outer diameter or 2mm.
  • Increase gasket: Use gaskets matching flange sealing surface size. Avoid burying flanges in ground; provide inspection wells for buried pipelines.
  • Precautions: Avoid pressure deviation during installation to prevent medium leakage. Avoid flange connections in floors, walls, and casings.
Functions
  • Automatically opens and closes according to water pressure difference - safe and reliable
  • Low water resistance with positive opening, low starting pressure, and automatic flow rate adjustment
  • Excellent reverse check sealing with no leakage - backflow prevention improves with back pressure
  • Corrosion-resistant, weather-resistant, highly adaptable with long service life
Main Connection Sizes
Model Pipe Nominal Diameter Length (mm) High (mm) Flange Outside Diameter (mm)
XH4150-150-F50150100150
XH4180-220-F80220140200
XH41100-250-F100250200225
XH41150-340-F150340265275
XH41200-420-F200420325338
XH41250-520-F250520425400
XH41300-620-F300620525485
XH41350-700-F350700625525
XH41400-800-F400800725588
XH41450-900-F450900825625
XH41500-980-F500980925688
XH41600-1120-F60011201025800
XH41700-1180-F70011801125969
XH41800-1350-F800135014001080
XH41900-1500-F900150015251150
XH411000-1600-F1000160017251350
XH411200-1840-F1200184019501485
DN100mm Flanged Duckbill Check Valve OEM Rubber Duckbill Valve 0 DN100mm Flanged Duckbill Check Valve OEM Rubber Duckbill Valve 1
Frequently Asked Questions
Q: What is rubber material?
A: EPDM, CR, NBR, etc. This depends on the work environment and media.
Q: Is the flange galvanized?
A: Yes, we have electronic galvanized and hot-dip galvanized flanges. We also have painted flanges.
Q: Can I customize the logo?
A: Yes, we can provide OEM and ODM services for you.
Q: Can you provide drawings?
A: Yes, we can provide you with the drawings of the duckbill check valve. Please contact us to obtain the drawings.
Q: What is the pressure of work?
A: 1.0-2.5Mpa.
