EPDM Rubber Duckbill Check Valve 8 Inch CS SS304 Duck Bill Valve
Product Description

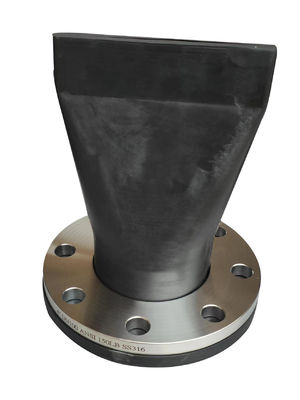

8Inch Weather Resistance Rubber EPDM Flange Duckbill Check Valve
The Rubber Duckbill check valve consists of elastic neoprene rubber and man-made fiber, manufactured through special processing. Its shape resembles a duckbill, hence the name. With no internal pressure, the duckbill remains closed due to elastic force. As internal pressure increases, the exit gradually opens, allowing high-flow-rate liquid discharge.

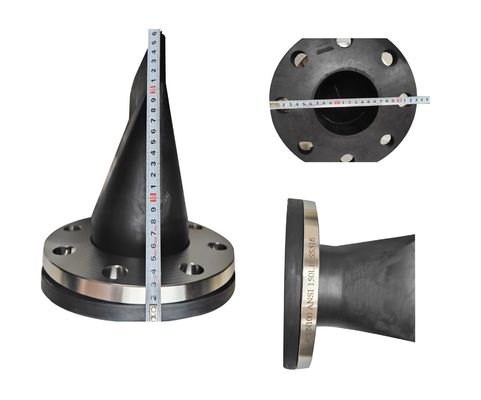

Product Structure
Connection Size of Flanged Rubber Duckbill Check Valve
| Type |
Nominal diameter of pipe |
FF(Length)mm |
Height |
External diameter of flange |
| XH4150-150-F |
50 |
150 |
100 |
150 |
| XH4180-220-F |
80 |
220 |
140 |
200 |
| XH41100-250-F |
100 |
250 |
200 |
225 |
| XH41150 -340-F |
150 |
340 |
265 |
275 |
| XH41200-420-F |
200 |
420 |
325 |
338 |
| XH41250-520-F |
250 |
520 |
425 |
400 |
| XH41300-620-F |
300 |
620 |
525 |
485 |
| XH41350-700-F |
350 |
700 |
625 |
525 |
| XH41400-800-F |
400 |
800 |
725 |
588 |
| XH41450-900-F |
450 |
900 |
825 |
625 |
| XH41500-980-F |
500 |
980 |
925 |
688 |
| XH41600-1120-F |
600 |
1120 |
1025 |
800 |
| XH41700-1180-F |
700 |
1180 |
1125 |
969 |
| XH41800-1350-F |
800 |
1350 |
1400 |
1080 |
| XH41900-1500-F |
900 |
1500 |
1525 |
1150 |
| XH411000-1600-F |
1000 |
1600 |
1725 |
1350 |
| XH411200-1840-F |
1200 |
1840 |
1950 |
1485 |
Note: The above data is for reference only. We provide customized services for special sizes and pressure requirements.
Functions
The Rubber duckbill check valve prevents floodwater intrusion into sewers and basement streets, avoiding significant losses. It controls rising water levels, prevents flooding in sewage treatment plants and drainage pumping stations, and contains sewage or fluid odor diffusion while maintaining drainage readiness.
Application Field
This valve is essential for flood prevention in urban drainage systems, sewage treatment facilities, and pumping stations, effectively managing water flow and preventing backflow contamination.

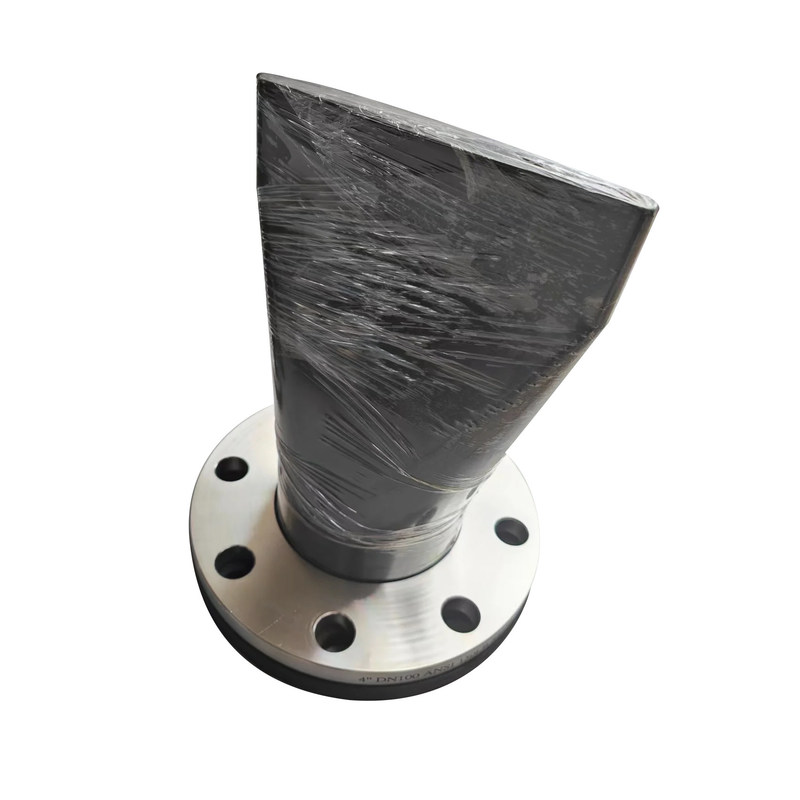

Packaging & Shipping
Frequently Asked Questions
Q: Can you make the product as per client's requirement?
A: Yes, we can manufacture according to your exact specifications.
Q: What are your payment terms?
A: T/T (30% deposit, 70% balance before delivery) or L/C at sight.
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.
Q: How can you guarantee the quality or any warranty?
A: We conduct thorough inspections of specifications, materials, and appearance before delivery. We also support third-party inspection services.
Q: Do you accept small quantity orders?
A: Yes, we accommodate orders of all sizes.
Q: What is your shipment and delivery time?
A: We ship by sea or air. Delivery typically takes 7-14 days, depending on order quantity.
