Product Details:
Place of Origin: China
Brand Name: Lianghe
Certification: ISO 9001:2015
Model Number: WTX
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $12.9-$28.9
Packaging Details: Inner: plastic film, then put into carton case. Outer: safe firmed export plywood case, marking on carton case and wooden case can be customized, or packing as per your requests.
Delivery Time: 5-10 work days
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 1200 set per month
Contact Now Chat Now

90 Degree Elbow Rubber Joint CR NBR Neoprene Rubber Flexible Joint

Description
Product Name: 90 Degree Flanged Rubber Flexible Joint Usage: Joining Pipe Lines
Keyword: Rubber Flexible Joint Flange Standard: DIN, BS, JIS, ANSI
Rubber Material: EPDM, CR, NBR, Neoprene Applicable Media: Air, Water, Sewage, Sea Water, Acid, Alkali, Oil Etc
Technic: Casting
Highlight:

90 Degree Elbow Rubber Joint

,

CR NBR Rubber Flexible Joint

,

NBR Neoprene Rubber Flexible Joint

90 Degree Elbow Rubber Joint CR NBR Neoprene Rubber Flexible Joint
Product Description

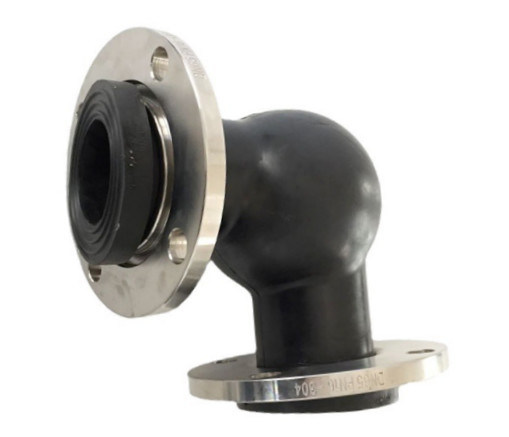

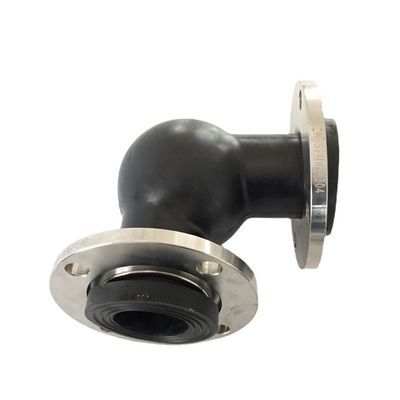

The 90 degree rubber elbow is designed for flexible connections in pipeline systems across multiple industries including water supply, HVAC, metallurgy, chemical processing, paper manufacturing, shipping, fire protection, and pharmaceuticals.

This high-elasticity, airtight rubber expansion joint effectively reduces vibration and noise while compensating for thermal expansion and contraction caused by temperature variations.

Product Specifications
90 Degree Elbow Rubber Joint CR NBR Neoprene Rubber Flexible Joint 0
NO Name Material
1 Outer and inner rubber layer NR, NBR, EPDM, FKM etc
2 Frame Nylon cord fabric
3 Flange Q235B, Stainless steel 304, 316 etc
4 Pressurized ring Steel wire strand
Connection Data
DN(mm) Inch Length(mm) Axial compression Axial extension Radial displacement
50 2 140 20 20 16
65 2 1/2 140 20 20 16
80 3 150 20 20 16
100 4 160 20 20 16
125 5 180 20 20 16
150 6 200 20 20 16
200 8 230 20 20 16
250 10 280 20 20 16
300 12 305 20 20 16

Note: Data provided is for reference only. Contact us for additional technical specifications. We maintain various molds and multiple rubber vulcanizing equipment sets to accommodate both mass production and custom requirements.

Performance Characteristics
  • Compact design with lightweight construction and excellent elasticity for easy installation and maintenance
  • Accommodates lateral, axial, and angular displacement during installation without requiring perfectly concentric pipes or parallel flanges
  • Effectively reduces structure-transmitted noise and provides superior vibration absorption
Product Inventory
90 Degree Elbow Rubber Joint CR NBR Neoprene Rubber Flexible Joint 1
Frequently Asked Questions
Can you provide drawings and technical data?

Yes, our professional technical department will design and provide drawings and technical data.

Do you provide samples? Is it free or charged?

Yes, we can offer sample free but shipping charges covered by customer.

How long is your delivery time?

Depends on QTY, but normally no more than 20 working days.

Can the products be made by customer's requirement?

Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.

Visiting factory is allowed or not?

Yes, we welcome customers visiting our factory. Our factory is located Gongyi city, Henan province, China mainland.
