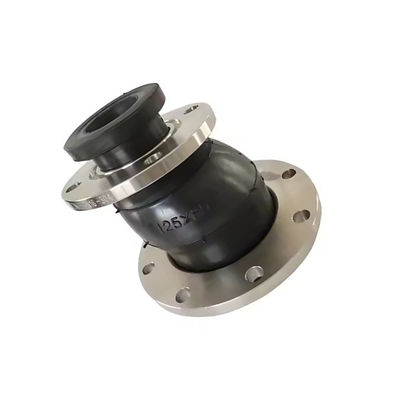

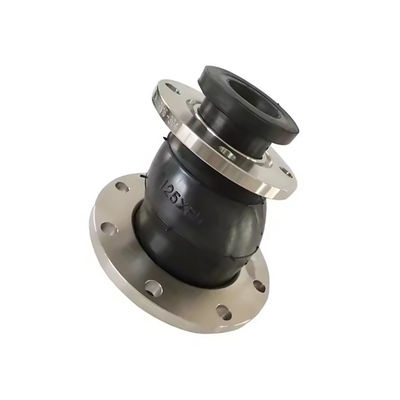

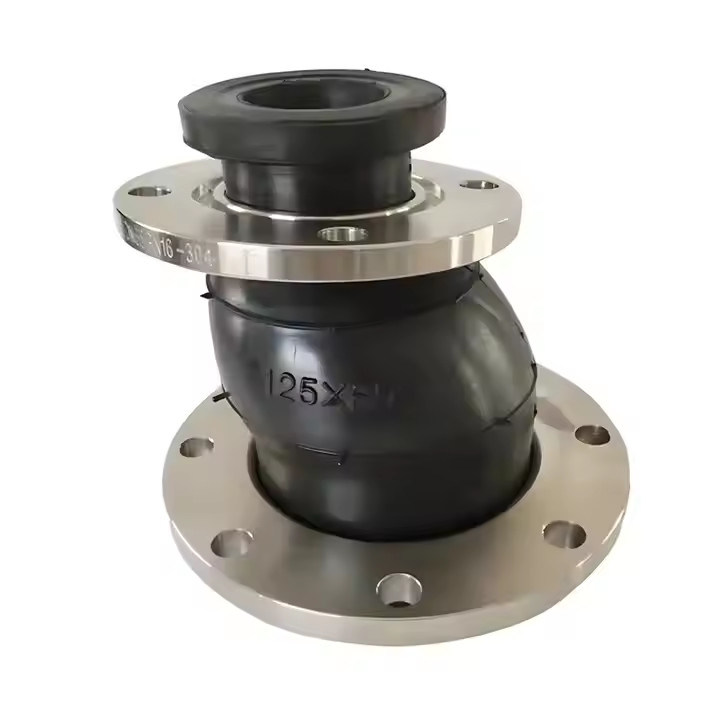

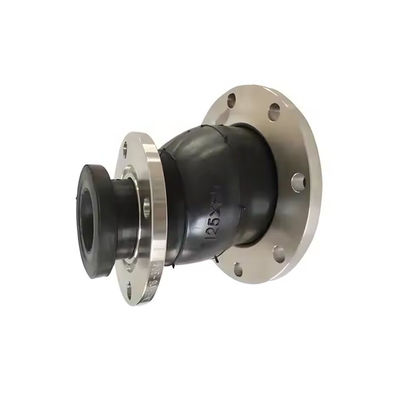

DN32-DN3000MM Flange Compensator Single Ball EPDM Flexible Expansion Joint

DN32-DN3000MM Flange Compensator Single Ball EPDM Flexible Expansion Joint
DN32-DN3000MM Flange Compensator Single Ball EPDM Flexible Expansion Joint DN32-DN3000MM Flange Compensator Single Ball EPDM Flexible Expansion Joint DN32-DN3000MM Flange Compensator Single Ball EPDM Flexible Expansion Joint DN32-DN3000MM Flange Compensator Single Ball EPDM Flexible Expansion Joint

Large Image :  DN32-DN3000MM Flange Compensator Single Ball EPDM Flexible Expansion Joint

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: KPT
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄43.20 set
Packaging Details: cartons,wooden cases
Delivery Time: 1-7 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 6000 piece per month
Contact Now Chat Now

DN32-DN3000MM Flange Compensator Single Ball EPDM Flexible Expansion Joint

Description
Application: Water Treatment Size: DN32-DN3000MM
Usage: Water Trasportation Pressure: PN10/PN16/PN25
Flange Material: Stainless Steel 304, 316 Etc Shape: Equal
Head Code: Round
Highlight:

DN32 Flange Compensator Single Ball

,

DN3000MM Flange Compensator

,

EPDM Flexible Expansion Joint

DN32-DN3000MM Flange Compensator Single Ball EPDM Flexible Expansion Joint
How the Product Works
  • Displacement compensation: Effectively compensates for horizontal, vertical and angular pipeline displacement during installation through elastic and eccentric design, preventing stress concentrations and poor connections.
  • Shock absorption and noise reduction: Absorbs vibration and impact in pipeline systems, reducing noise and vibration effects, especially important for large machinery operation.
  • Connect pipes of different diameters: Eccentric design accommodates pipe deviations, ensuring stable and tight connections between pipes of varying diameters.
Product Structure Composition
  • Inner rubber layer: Main elastic component made of natural rubber, neoprene, nitrile rubber or EPDM for elasticity and corrosion resistance.
  • Textile improvement layer: Reinforced with nylon cord fabric for increased strength and stability.
  • Middle rubber layer: Provides cushioning and support between inner and outer layers.
  • Outer rubber layer: Protects inner components from environmental factors while offering wear resistance.
  • Top structure steel ring: Enhances overall joint strength and stability.
  • Metal flange: Connects to pipeline system ensuring firm, tight connections.
Product Parameters
Nominal diameter DN×DN Length (mm) D D0 n-φ D D0 n1-φ1
50×401801801651254-φ181501104-φ18
65×401801851454-φ181501104-φ18
65×501801851454-φ181651254-φ18
80×501802001608-φ181651254-φ18
80×651802001608-φ181851454-φ18
100×501802201808-φ181651254-φ18
100×651802201808-φ181851454-φ18
100×801802201808-φ182001608-φ18
125×651802502108-φ181851454-φ18
125×801802502108-φ182001608-φ18
125×1001802502108-φ182201808-φ18
150×802002652408-φ222001608-φ18
150×1252002852408-φ222502108-φ18
200×1002203402958-φ222201808-φ18
200×1502203402958-φ222852408-φ22
250×12522039535012-φ222502108-φ18
250×15022039535012-φ222852408-φ22
250×20022039535012-φ223402958-φ22
300×12522044540012-φ222852408-φ22
300×20022044540012-φ223402958-φ22
Product Features
  • High pressure resistance: Suitable for various piping systems under high pressure conditions
  • Good elasticity: Adapts to pipeline displacement and vibration
  • Large displacement capacity: Absorbs significant displacement and balances pipeline deviation
  • Shock absorption and noise reduction: Effectively minimizes vibration and noise
  • Easy installation: Simple structure for straightforward installation and maintenance
Product Display
DN32-DN3000MM Flange Compensator Single Ball EPDM Flexible Expansion Joint 0 DN32-DN3000MM Flange Compensator Single Ball EPDM Flexible Expansion Joint 1
Our Services
  • Competitive pricing with quality assurance and large spot inventory
  • Custom non-standard specifications with short production lead times
  • One-year warranty with reliable after-sales support and technical guidance
  • Available standard and VAT invoices
  • Export packaging options including wooden boxes, cartons, and bubble wrap pallets
Workshop Display
DN32-DN3000MM Flange Compensator Single Ball EPDM Flexible Expansion Joint 2
Frequently Asked Questions
Q: Can the logo on the rubber ball be customized?
A: Yes, we can mark it with your company logo and provide OEM/ODM services.
Q: What are the parts of your rubber joints?
A: Consists of two flanges and a rubber sphere made of nylon cord fabric, steel wire rope, and compound rubber.
Q: Can the length of the rubber ball be customized?
A: Yes, we have various mold specifications and can customize according to your requirements.
Q: What are your flange standards?
A: We support ANSI, DIN, BS, JIS and other international standards.
Q: Can I choose a rubber ball made of different materials?
A: Absolutely, we can manufacture according to your specific material requirements.
