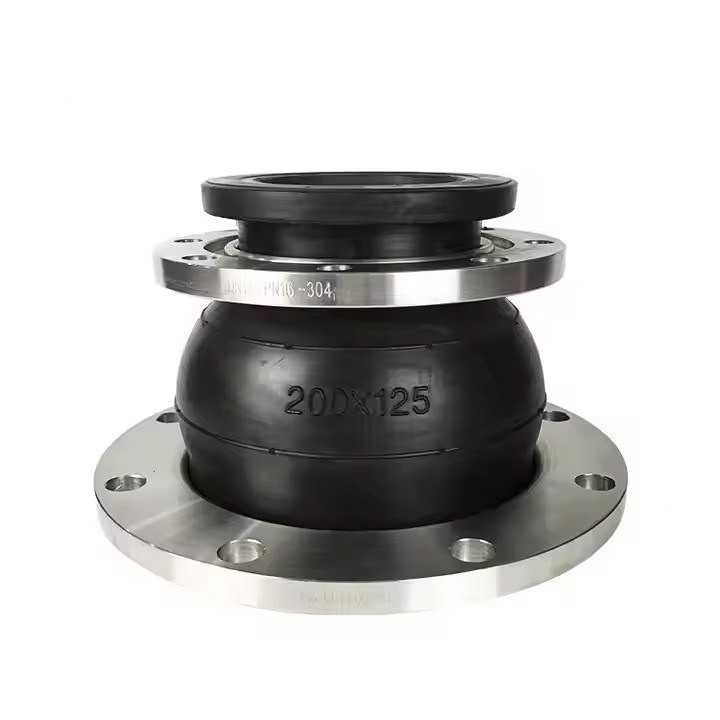

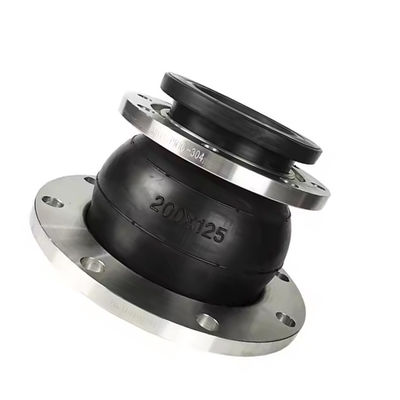

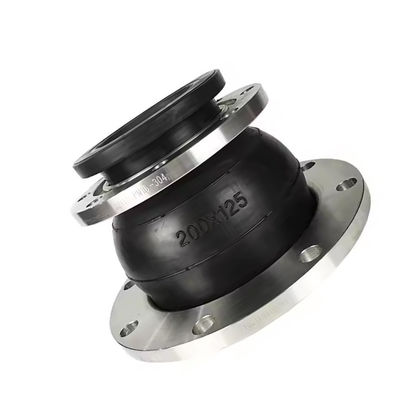

SS304 Flange Rubber Expansion Joint DN200 PN16 Pipe Compensator

SS304 Flange Rubber Expansion Joint DN200 PN16 Pipe Compensator
SS304 Flange Rubber Expansion Joint DN200 PN16 Pipe Compensator SS304 Flange Rubber Expansion Joint DN200 PN16 Pipe Compensator SS304 Flange Rubber Expansion Joint DN200 PN16 Pipe Compensator

Large Image :  SS304 Flange Rubber Expansion Joint DN200 PN16 Pipe Compensator

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: KYT
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄59.00 set
Packaging Details: cartons,wooden cases
Delivery Time: 1-7 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 10000 piece per month
Contact Now Chat Now

SS304 Flange Rubber Expansion Joint DN200 PN16 Pipe Compensator

Description
Operating Temperature: -15~+80 ℃ (special:-20~+150℃ ) Working Pressure: PN10/PN16
Application: Pipe Lines Connect Flange Material: Carbon Steel, SS304, SS316L
Rubber Material: EPDM,NR,NBR,PTFE,etc Connection: Flange
Customized Support: OEM, ODM Technology: Forged, Casting
Product Name: Rubber Expansion Joint
Highlight:

SS304 Flange Rubber Expansion Joint

,

Flange Rubber Expansion Joint DN200

,

DN200 PN16 Pipe Compensator

SS304 Flange Rubber Expansion Joint DN200 PN16 Pipe Compensator
Product Description
DN200 PN16 factory custom large diameter pipe concentric reducer Ss304 flange connector rubber expansion joint
How the Product Works
  • Flexible connection: Compensates for pipeline displacement due to thermal expansion, cold contraction, and vibration through elastic deformation of the rubber ball, ensuring stable pipeline system operation.
  • Shock absorption and noise reduction: Effectively absorbs vibration and noise in pipeline systems, reducing equipment resonance and noise pollution.
  • Absorption displacement: Accommodates axial, transverse, and angular displacement to protect pipelines from stress concentration and extend service life.
Manufacturing Process and Material Characteristics
During production, the inner layer undergoes high pressure to better combine nylon cord fabric with adhesive layers, improving working pressure and quality. Materials include natural rubber, nitrile rubber, and EPDM, offering excellent elasticity, wear resistance, aging resistance, and tear resistance for temperatures ranging from -45°C to +60°C.
Product Advantages
  • Excellent corrosion resistance
  • Superior high and low temperature resistance
  • High elasticity and flexibility
  • Wide range of applications
  • Easy installation and maintenance
  • Environmentally friendly and cost-effective
Product Parameters
SS304 Flange Rubber Expansion Joint DN200 PN16 Pipe Compensator 0
NO Name Material
1 Inner and outer rubber layer NR, EPDM, NBR, Neoprene
2 Frame Nylon cord fabric
3 Pressurized ring Hard steel wire
4 Flange Carbon steel galvanized, SS304
DN*DN Length (mm) Axial displacement (mm) Lateral displacement (mm) Angular displacement
32*25 115 20 30 35°
40*25 115 20 30 35°
40*32 115 20 30 35°
50*32 180 20 30 35°
50*40 180 20 30 35°
65*32 180 20 30 35°
65*50 180 20 30 35°
80*40 180 20 30 35°
80*65 180 20 30 35°
100*40 180 22 30 35°
100*80 180 22 30 35°
125*50 180 22 30 35°
125*100 200 22 30 35°
150*50 200 22 30 35°
150*125 200 25 35 30°
200*80 200 25 35 30°
200*150 200 25 35 30°
The above data is only part of the data. If you need a special size, please contact us.
Product Applications
  • Water supply and drainage systems: Buffers pipeline vibration and pressure fluctuations, especially effective in high-rise buildings with high water pressure.
  • Chemical and petroleum industries: Withstands harsh environments including high temperatures, pressures, and corrosive media.
  • Pharmaceutical and food processing: Ensures tightness and meets sanitary standards with food-grade or pharmaceutical-grade rubber options.
  • Thermal & HVAC systems: Absorbs pipe deformation from thermal expansion/contraction while reducing noise and vibration.
Different Types of Rubber Joints
SS304 Flange Rubber Expansion Joint DN200 PN16 Pipe Compensator 1 SS304 Flange Rubber Expansion Joint DN200 PN16 Pipe Compensator 2
Single ball rubber joints / Double ball rubber joints
SS304 Flange Rubber Expansion Joint DN200 PN16 Pipe Compensator 3 SS304 Flange Rubber Expansion Joint DN200 PN16 Pipe Compensator 4
Eccentric reducer rubber joints / Concentric reducer rubber joints
Drawings of Different Types of Rubber Joints
SS304 Flange Rubber Expansion Joint DN200 PN16 Pipe Compensator 5
Product Inventory
SS304 Flange Rubber Expansion Joint DN200 PN16 Pipe Compensator 6
FAQ
Q: Do you have products catalog?
A: Yes, we have. Please tell us your email or instant messenger, and we will send our catalog.
Q: Can the products be manufactured by customer's requirement?
A: Yes, the specifications stated above are standard. We can design and manufacture according to your requirements.
Q: What are your rubber materials?
A: We offer natural rubber, butyl rubber, nitrile rubber, EPDM rubber, neoprene, fluorine rubber, food grade rubber, and more.
Q: Can the length of the ball be customized?
A: Yes, we have various specifications and models of molds to accommodate custom lengths.
Q: Can the logo on the rubber ball be customized?
A: Yes, we can mark it with your company's logo. We provide OEM and ODM services.
