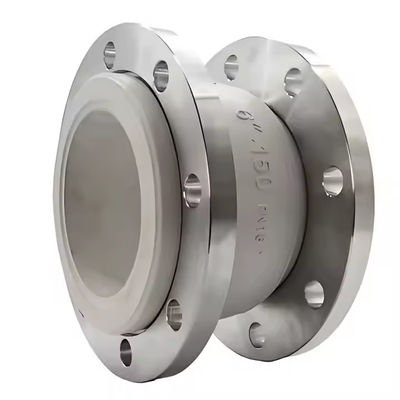

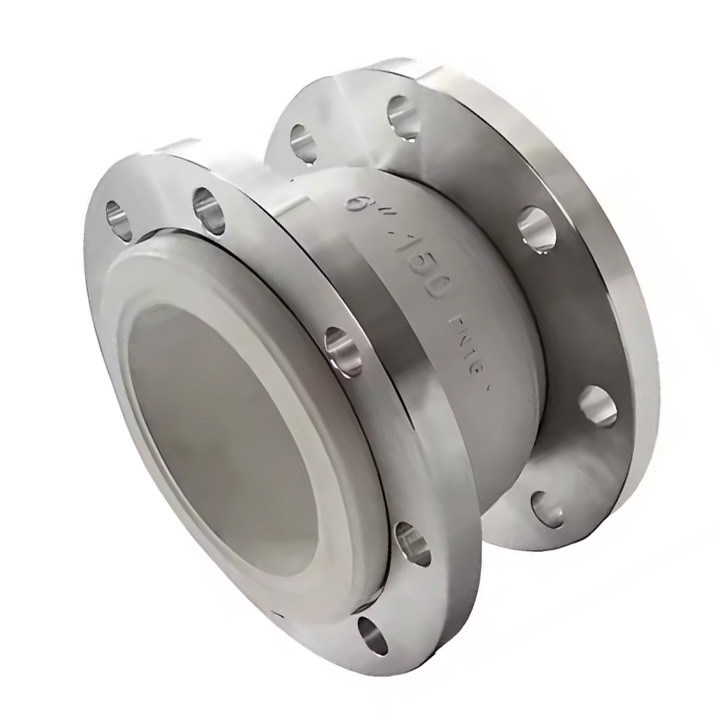

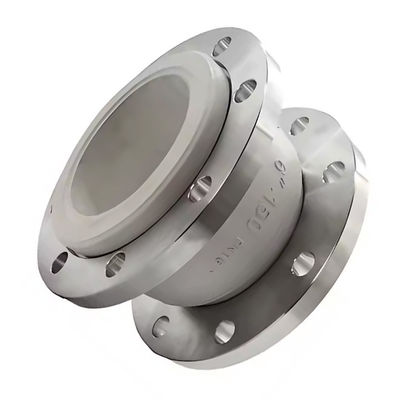

Food Grade SS316 Connection Single Bellow Rubber Expansion Joint DN150mm PN10

Food Grade SS316 Connection Single Bellow Rubber Expansion Joint DN150mm PN10
Food Grade SS316 Connection Single Bellow Rubber Expansion Joint DN150mm PN10 Food Grade SS316 Connection Single Bellow Rubber Expansion Joint DN150mm PN10 Food Grade SS316 Connection Single Bellow Rubber Expansion Joint DN150mm PN10

Large Image :  Food Grade SS316 Connection Single Bellow Rubber Expansion Joint DN150mm PN10

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: REJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄65.00 set
Packaging Details: cartons,wooden cases
Delivery Time: 1-7 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 8000 piece per month
Contact Now Chat Now

Food Grade SS316 Connection Single Bellow Rubber Expansion Joint DN150mm PN10

Description
Model Number: DN32-3000 Rubber Material: EPDM, NR, NBR, Etc
OEM: Support Flange Standard: ANSI, DIN, JIS, Etc
Application: Air, Water, Sea Water, Oil, Acid, Etc Pressure: PN6 - PN16
Drawing: Offer Shape: Equal
Head Code: Round
Highlight:

Food Grade SS316 Rubber Expansion Joint

,

Single Bellow Rubber Expansion Joint DN150mm

,

DN150mm PN10 Expansion Joint

Food Grade SS316 Connection Single Bellow Rubber Expansion Joint DN150mm PN10
Product Description

DN150 DIN PN10 SS316 food grade flange connection flexible single bellow rubber expansion joint

Performance characteristics of food-grade rubber joints
  • High safety: Made of non-toxic, tasteless and non-polluting materials that meet national and international food safety standards.
  • Strong corrosion resistance: Resists acid, alkali, salt and other chemical erosion for long service life in harsh environments.
  • Good elasticity: Provides excellent sealing and cushioning, reducing pipeline vibration and noise.
  • Excellent temperature resistance: Maintains stable performance across wide temperature ranges for various food production processes.
  • Easy to install and maintain: Standardized design enables quick installation and simple maintenance.
  • Good sealing performance: Prevents liquid leakage effectively, reducing production costs.
  • Long service life: High tear strength with resistance to extreme temperatures ensures durability.
  • Food safety compliance: Made from FDA, LFGB compliant materials like EPDM and silicone rubber.
Product Parameters
Nominal diameter Length (mm) Axial displacement (mm) Horizontal displacement (mm) Deflection angle
32 mm (1 1/4") 95 6 9 15°
40 mm (1 1/2") 95 6 10 15°
50 mm (2") 105 7 10 15°
65 mm (2 1/2") 115 7 13 15°
80 mm (3") 135 8 15 15°
100 mm (4") 150 10 19 15°
125 mm (5") 165 12 19 15°
150 mm (6") 180 12 20 15°
Different Forms of Rubber Joint Products
Food Grade SS316 Connection Single Bellow Rubber Expansion Joint DN150mm PN10 0
PTFE lined rubber joint
Flange material: SS304, ductile iron, carbon steel, etc.
Rubber material: Natural rubber, EPDM rubber, etc.
Food Grade SS316 Connection Single Bellow Rubber Expansion Joint DN150mm PN10 1
Concentric reducing rubber joint
Flange material: SS304, SS316, carbon steel, etc.
Rubber material: Nitrile rubber, EPDM rubber, etc.
Food Grade SS316 Connection Single Bellow Rubber Expansion Joint DN150mm PN10 2
Tie rod limit rubber joint
Flange material: Ductile iron, carbon steel, stainless steel.
Rubber material: NR, NBR, EPDM, etc.
Food Grade SS316 Connection Single Bellow Rubber Expansion Joint DN150mm PN10 3
Union threaded rubber joint
Flange material: SS304, SS316 stainless steel, carbon steel, etc.
Rubber material: Natural rubber, EPDM rubber, etc.
Application Fields
  • Food industry: Beverage, dairy, meat production and processing pipelines.
  • Pharmaceutical industry: Medicine production, packaging and transportation systems.
  • Chemical industry: Acid, alkali and chemical substance transportation.
  • Electronics industry: Cooling systems for computers and servers.
  • Other fields: Aerospace and automotive applications.
Product Packaging
Food Grade SS316 Connection Single Bellow Rubber Expansion Joint DN150mm PN10 4
FAQ
Q: How can we guarantee quality?
A: We offer samples before mass production and final inspection before shipping.
Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and technical data.
Q: What else can we buy from you?
A: Rubber expansion joints, metal expansion joints, metal braided hoses, bellows expansion joints, duckbill valves, gate valves, etc.
Q: Is quality warranty offered?
A: Yes, our company offers free warranty for 1 year, and supports third-party testing.
Q: Can I only buy ball without the flange?
A: Yes, and the price will be cheaper. For small diameter rubber joints, we have goods in stock for testing.
Q: Is the flange galvanized?
A: Yes, carbon steel flanges are galvanized (electronic or hot dip) to prevent rusting.
