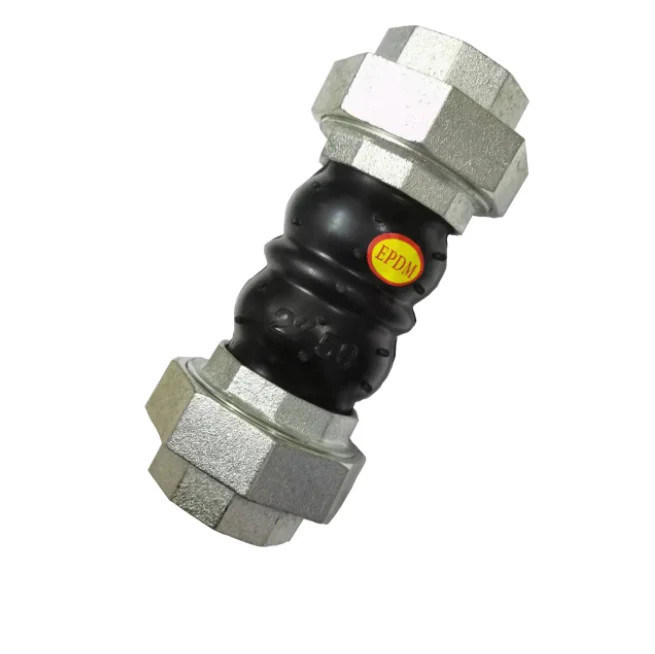

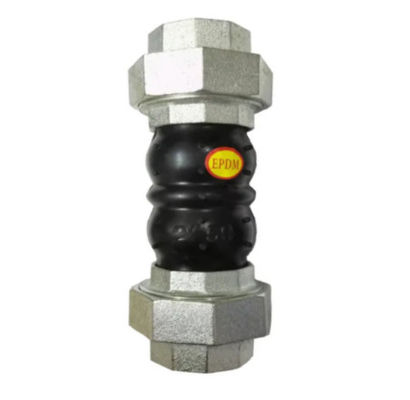

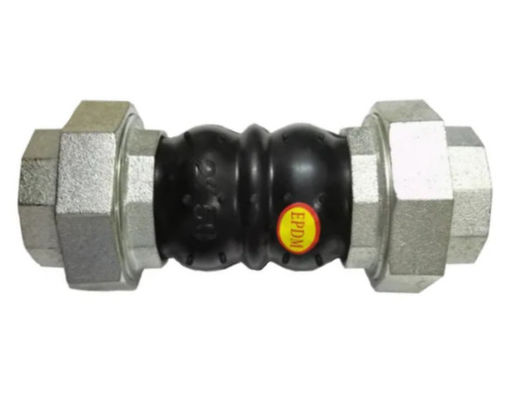

Union Custom Rubber Expansion Joint Screw Threaded Coupling SS304 DN15-DN80

Union Custom Rubber Expansion Joint Screw Threaded Coupling SS304 DN15-DN80
Union Custom Rubber Expansion Joint Screw Threaded Coupling SS304 DN15-DN80 Union Custom Rubber Expansion Joint Screw Threaded Coupling SS304 DN15-DN80 Union Custom Rubber Expansion Joint Screw Threaded Coupling SS304 DN15-DN80

Large Image :  Union Custom Rubber Expansion Joint Screw Threaded Coupling SS304 DN15-DN80

Product Details:
Place of Origin: China
Brand Name: Lianghe
Certification: ISO 9001
Model Number: JGD
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $12.8
Packaging Details: Carton case packing or wooden case packing
Delivery Time: 5-12 work days
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 12000 set per week
Contact Now Chat Now

Union Custom Rubber Expansion Joint Screw Threaded Coupling SS304 DN15-DN80

Description
Size: DN15-DN80 Rubber Material: NR, EPDM, NBR, Neoprene Etc
Threaded Joint Material: Malleable Iron,SS304 Warranty: 1 Year
Customized Support: OEM, ODM Media: Water, Gas, Acid
Connection: Union
Highlight:

Union Custom Rubber Expansion Joint

,

Expansion Joint Screw Threaded Coupling

,

SS304 DN15 Rubber Expansion Joint

Union Custom Rubber Expansion Joint Screw Threaded Coupling SS304 DN15-DN80
Screw Threaded Coupling Union Type Custom Rubber Flexible Expansion Joint
Material Composition

Constructed with an inner layer, reinforced with multilayer nylon cord fabric, and an outer rubber composite tube.

Available in various rubber materials depending on application requirements:

  • Natural rubber (NR)
  • Styrene butadiene rubber (SBR)
  • Butyl rubber (IIR)
  • Nitrile rubber (NBR)
  • Ethylene propylene rubber (EPDM)
  • Chloroprene rubber (CR)
  • Silicone rubber
  • Fluorocarbon rubber (FKM)
Key Features
  • High pressure resistance with elastic deformation capability
  • Excellent vibration reduction and noise dampening
  • Lightweight construction
  • Resistant to heat, acids, alkalis, corrosion, abrasion, and oils
Union Custom Rubber Expansion Joint Screw Threaded Coupling SS304 DN15-DN80 0
Main Connection Dimensions
Nominal Diameter Length (mm) Axial Displacement (mm) Lateral Displacement (mm)
15mm (1/2") 200 5-6 22
20mm (3/4") 200 5-6 22
25mm (1") 200 5-6 22
32mm (1 1/4") 200 5-6 22
40mm (1 1/2") 200 5-6 22
50mm (2") 200 5-6 22
65mm (2 1/2") 265 8-10 24
80mm (3") 285 8-10 24
Product Structure
Union Custom Rubber Expansion Joint Screw Threaded Coupling SS304 DN15-DN80 1
Part No. Component Name Material
1 Union Malleable iron, SS304
2 Inner rubber EPDM
3 Outer rubber EPDM
4 Pressurized ring Carbon steel, SS304
Technical Specifications
  • Size range: 1/2" to 3" (DN15 to DN80mm)
  • Material options: NR, CR, NBR, EPDM, IIR, FKM
  • Compatible media: Water, seawater, sewage, petroleum, acids, alkalis
  • Temperature range: -15°C to 115°C (custom higher temperature options available)
Alternative Product Types
Union Custom Rubber Expansion Joint Screw Threaded Coupling SS304 DN15-DN80 2
Frequently Asked Questions
Can you make the product as per client's requirement?
Yes, we can manufacture according to your exact specifications.
What are your payment terms?
T/T (30% deposit, 70% balance before delivery) or L/C at sight.
Where is your nearest loading port?
Shanghai, Qingdao or Tianjin, China - or as per customer requirements.
How do you guarantee quality?
Products can be returned if quality issues arise, with solutions tailored to customer needs.
Do you accept small quantity orders?
Yes, we accommodate orders of all sizes.
What are your shipment and delivery times?
Shipping by sea or air. Delivery typically within 7-14 days, depending on order quantity.
