JIS 5K Flanged Expansion Joint SS316 Single Sphere Rubber Compensator

JIS 5K Flanged Expansion Joint SS316 Single Sphere Rubber Compensator
JIS 5K Flanged Expansion Joint SS316 Single Sphere Rubber Compensator JIS 5K Flanged Expansion Joint SS316 Single Sphere Rubber Compensator JIS 5K Flanged Expansion Joint SS316 Single Sphere Rubber Compensator

Large Image :  JIS 5K Flanged Expansion Joint SS316 Single Sphere Rubber Compensator

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: REJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄36.5-95.2 per set
Packaging Details: cartons,wooden cases
Delivery Time: 1-7 day
Payment Terms: T/T,D/A,D/P,Western Union,MoneyGram,L/C
Supply Ability: 8000 piece per month
Contact Now Chat Now

JIS 5K Flanged Expansion Joint SS316 Single Sphere Rubber Compensator

Description
OEM: Support Working Temperature: -15℃-80℃(in Special -20℃-150℃)
Stock: A Large Of Stock Advantage: Easy To Install
Function: Good Sealing Product Name: Hot Selling Single Sphere Rubber Expansion Joint
Product Drawings: Offer
Highlight:

JIS 5K Flanged Expansion Joint

,

Single Sphere Rubber Compensator

,

Flanged Expansion Joint SS316

JIS 5K Flanged Expansion Joint SS316 Single Sphere Rubber Compensator
JIS 5K Stainless Steel 316 Flanged Rubber Expansion Joint - Food Grade, Leak-Proof Design

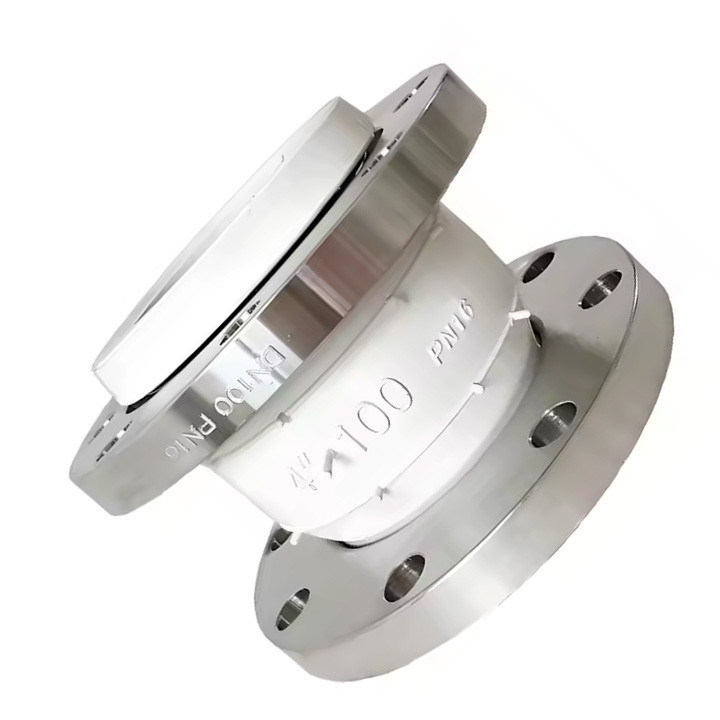

JIS 5K Flanged Expansion Joint SS316 Single Sphere Rubber Compensator 0
Food-Grade Rubber Joint Composition
  • Inner rubber layer: Made of food-grade rubber with excellent elasticity and corrosion resistance.
  • Reinforcement layer: Constructed with nylon cord fabric or polyester curtains for enhanced strength and pressure resistance.
  • Outer rubber layer: Protective synthetic rubber covering with weather and chemical resistance.
  • Loose Sleeve Metal Flange: Stainless steel or corrosion-resistant metal connection for stable joint performance.
Key Features
Our food-grade rubber joints feature non-toxic, tasteless construction with high transparency, elasticity, and resistance to deformation. They offer excellent temperature resistance (-20℃ to +150℃), long service life, high tear strength, and maintain clarity without yellowing or scaling in water.
Applications
Ideal for liquid food processing including milk, beverages, juices, and alcoholic drinks (up to 96%). Suitable for food tankers, processing plants, and filling operations. Not recommended for compressor lines or fluids containing animal/vegetable fats.
Technical Specifications
Type 1 2 3
Working Pressure (Kg f/cm²) 1.0(10) 1.6(16) 2.5(25)
Explosion Pressure (Kg f/cm²) 2.0(20) 3.0(30) 4.5(45)
Vacuum Value (mmHg) 2.0(20) 86.7(650) 100(750)
Temperature Range -15℃ ~ +80℃ (-20℃~+150℃ special)
Compatible Media Water, liquid foods, beverages, edible oils, process gases, clean steam
Dimensional Specifications
Nominal Diameter Length (mm) Axial Displacement (mm) Horizontal Displacement (mm) Deflection Angle
32 mm (1 1/4") 95 6 9 15°
2000 mm (80") 420 25 35 10°
Installation Guidelines
  • Avoid over-tension or compression to prevent deformation and maintain joint functionality.
  • Select compatible sealing materials to prevent leaks and ensure proper connection.
  • Ensure proper alignment between joint and pipeline to distribute forces evenly.
Maintenance Requirements
  • Regularly inspect seals and replace aged components to maintain system integrity.
  • Utilize vibration damping properties to reduce equipment wear and noise.
  • Monitor temperature and chemical resistance in demanding processing environments.
Product Views

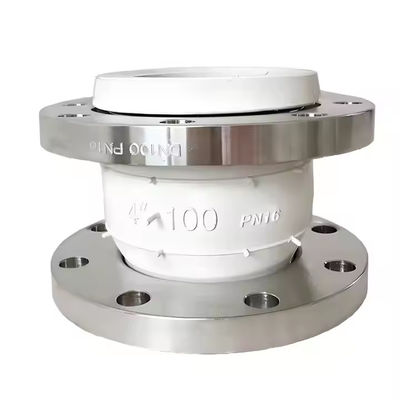

JIS 5K Flanged Expansion Joint SS316 Single Sphere Rubber Compensator 1

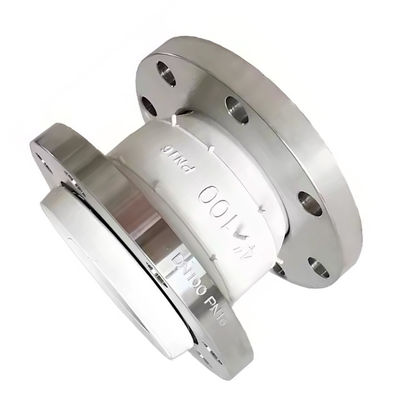

JIS 5K Flanged Expansion Joint SS316 Single Sphere Rubber Compensator 2
Why Choose Our Products?
  • Large-scale manufacturing facility with 200+ production machines
  • Diverse product range with 24/7 customer support
  • Competitive pricing with 1-year warranty and technical support
  • Global exports to 35 countries with proven quality and fast delivery
  • Extensive industry experience and reliable performance
