PTFE Rubber Pipe Joint DN32mm-DN1200mm Rubber Bellows Expansion Joints
High-quality PTFE pipe rubber joints connecting pipe fittings flanges soft connections expanded rubber joints
Product Introduction
The PTFE rubber joint model features a PTFE lining inside the rubber ball, combining the flexibility of rubber with PTFE's superior properties. This design offers exceptional temperature resistance (+250°C to -180°C), corrosion resistance, friction resistance, shock absorption, and noise reduction capabilities, making it ideal for various pipeline applications.
Product Structure Composition
- Rubber Body: Constructed from various rubber materials (natural rubber, EPDM, nitrile, etc.) selected for specific environmental and media resistance properties.
- Lined PTFE: Polytetrafluoroethylene layer providing unmatched chemical resistance and low friction surface for media contact.
- Limit Rod: Safety feature preventing joint separation under excessive tension.
- Flange: Connection component available in carbon steel or stainless steel for secure installation.
Product Parameters
| mm |
Inch |
Length (mm) |
Axial displacement (mm) |
Horizontal movement |
Deflection angle |
Special length |
| 32 |
1 1/4 |
95 |
9 |
6 |
15° |
130/150/200 |
| 40 |
1 1/2 |
95 |
10 |
6 |
15° |
130/150/200 |
| 50 |
2 |
105 |
10 |
7 |
15° |
130/150/200 |
| 65 |
2 1/2 |
115 |
13 |
7 |
15° |
130/150/200 |
| 80 |
3 |
135 |
15 |
8 |
15° |
130/150/200 |
| 100 |
4 |
150 |
19 |
10 |
15° |
130/200 |
| 125 |
5 |
165 |
19 |
12 |
15° |
130/150/200 |
| 150 |
6 |
180 |
20 |
12 |
15° |
130/150/200 |
Note: Complete size range up to DN1200mm available. Contact us for custom dimensions.

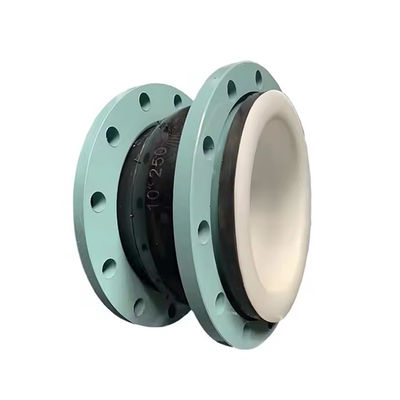

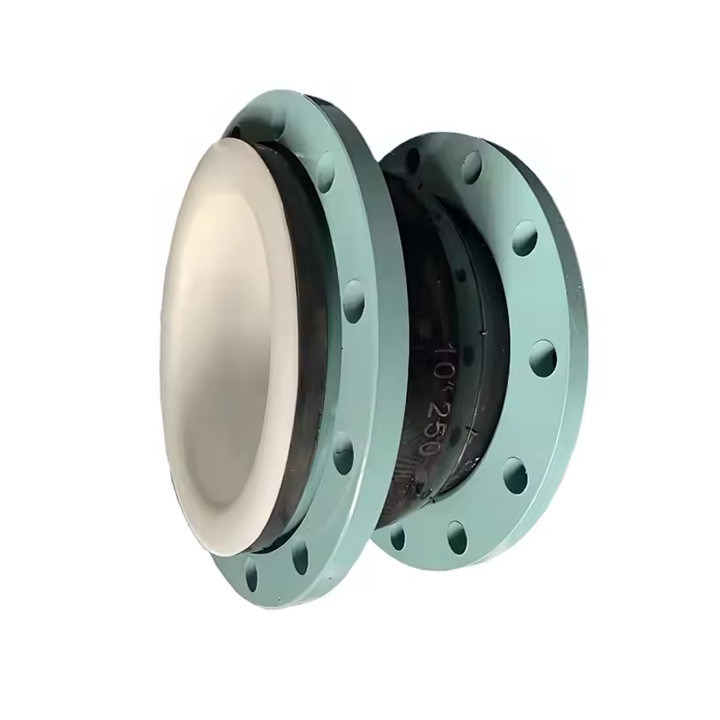

Product Display
Maintenance Guidelines
- Regular Inspection: Check for surface cracks, aging, and flange leaks periodically.
- Avoid Overload: Never exceed rated pressure/temperature specifications.
- Cleaning: Maintain clean piping systems to prevent fouling and corrosion.
Usage Precautions
- Ensure proper flange bolt tightening during installation.
- Regularly verify joint sealing performance.
- Select appropriate joint specifications for high-temperature/pressure applications.
- Handle with care during installation/removal to avoid lining damage.
- Store in dry conditions away from direct sunlight.

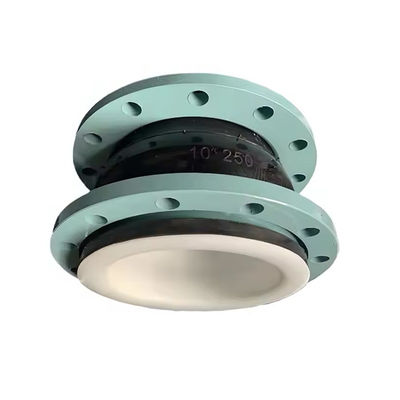

Product Details
Frequently Asked Questions
Can products be manufactured to customer requirements?
Yes, we offer custom design and manufacturing services beyond standard specifications.
Do you have a product catalog?
Yes, we can provide our complete catalog upon request.
Have your products been exported?
Our products have been successfully exported to over 20 countries worldwide including USA, Canada, Australia, and throughout Europe and Asia.
What media are suitable for PTFE-lined rubber fittings?
Ideal for air, water, seawater, and various industrial media.
What are the advantages of PTFE-lined rubber fittings?
Superior corrosion resistance, excellent wear resistance, and effective vibration/noise reduction properties.
