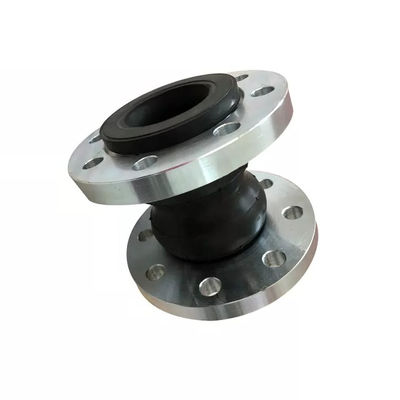

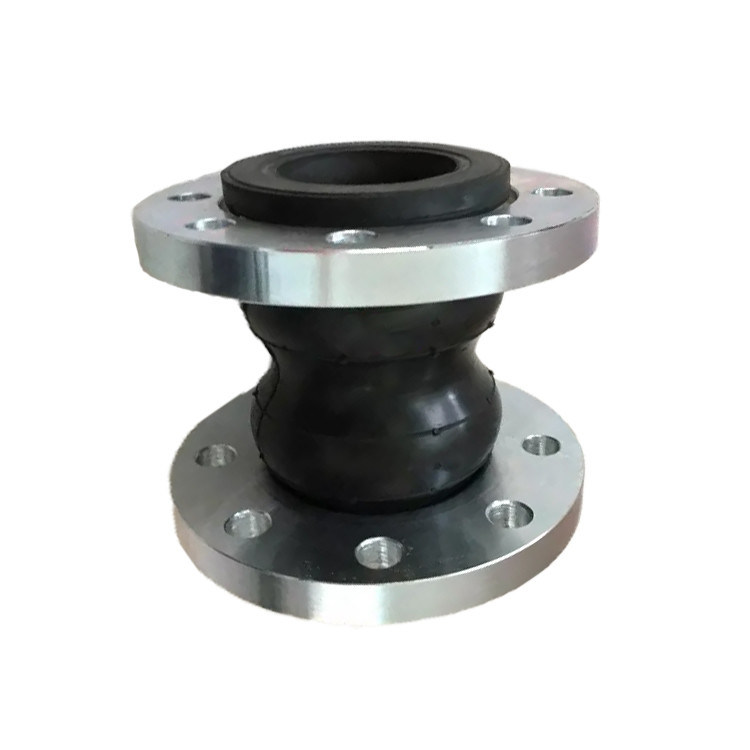

Galvanized Epdm Connector DN40-DN1200 Twin Sphere Flex Connector

Galvanized Epdm Connector DN40-DN1200 Twin Sphere Flex Connector
Galvanized Epdm Connector DN40-DN1200 Twin Sphere Flex Connector Galvanized Epdm Connector DN40-DN1200 Twin Sphere Flex Connector

Large Image :  Galvanized Epdm Connector DN40-DN1200 Twin Sphere Flex Connector

Product Details:
Place of Origin: China
Brand Name: Lianghe
Certification: ISO 9001
Model Number: KST
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $58.9-120.8 per set
Packaging Details: Wooden case (1.1*1.1*1.1m)
Delivery Time: 5-12 work days
Payment Terms: T/T, Western Union, D/A, D/P, MoneyGram, L/C
Supply Ability: 6000 set per month
Contact Now Chat Now

Galvanized Epdm Connector DN40-DN1200 Twin Sphere Flex Connector

Description
Product Name: Connector Double Ball Bellows Flanged Rubber Joint Size: DN40-DN1200
Style: Double Stock: Meet Urgent Needs
Working Temperature: -15~80℃(-30~150℃) Angular Deflection: ≥ 15°
Lateral Deflection: ≥ 20mm
Highlight:

Galvanized Epdm Connector DN40

,

DN1200 Twin Sphere Flex Connector

,

DN40 Twin Sphere Flex Connector

Galvanized EPDM Connector DN40-DN1200 Twin Sphere Flex Connector
Custom DN150 JIS Galvanized Carbon Steel EPDM Connector Double Ball Bellows Flanged Rubber Joint
High-performance double-sphere flexible rubber joint designed for industrial pipeline applications, offering superior vibration absorption and displacement compensation.
Technical Advantages
  • Compact design with lightweight construction for easy installation and maintenance
  • Absorbs lateral, axial, and angular displacement caused by pipeline vibration
  • Tolerates pipeline eccentricity and flange non-parallelism
  • Reduces noise from pipeline water pumps and vibration sources
  • Seamless high-pressure design resists corrosive media in demanding environments
  • Extended service life in high-temperature, acid, alkali, and oil-resistant applications
Product Specifications
  • Product Names: Flexible rubber joint, double ball soft joint, rubber soft joint, shock absorber, flange soft joint
  • Size Range: DN25mm-DN3000mm
  • Pressure Rating: 0.6-2.5MPa
  • Certifications: ISO9001:2008, CE
  • Compatible Media: Acid, alkali, corrosive substances, oil, hot/cold water, compressed natural gas, compressed air
Technical Parameters
Nominal Diameter Length (mm) Center Distance Holes-Diameter Axial Displacement (mm) Lateral Displacement Angular Displacement
40 | 1 1/2" 165 110 4-18 30 | 50 45 35°
50 | 2" 165 125 4-18 30 | 50 45 35°
65 | 2 1/2" 175 145 4-18 30 | 50 45 35°
80 | 3" 175 160 8-18 35 | 50 45 35°
100 | 4" 225 180 8-18 35 | 50 40 35°
125 | 5" 230 210 8-18 35 | 50 40 35°
150 | 6" 325 240 8-22 35 | 50 40 35°
200 | 8" 325 295 8-22 35 | 50 40 35°
250 | 10" 325 350 12-22 35 | 60 35 30°
300 | 12" 325 400 12-22 35 | 60 35 30°
350 | 14" 350 460 16-22 35 | 60 35 30°
400 | 16" 350 515 16-26 35 | 60 35 30°
450 | 18" 350 565 20-26 35 | 60 35 30°
500 | 20" 350 620 20-26 35 | 60 35 30°
600 | 24" 400 725 20-30 35 | 60 35 30°
700 | 28" 400 840 24-30 35 | 60 35 30°
800 | 32" 400 950 24-30 35 | 60 35 30°
Double Ball Detailed Parameters
Galvanized Epdm Connector DN40-DN1200 Twin Sphere Flex Connector 0
Installation Notes
  • Never exceed the specified displacement limits during installation
  • Tighten installation bolts symmetrically and gradually to prevent local leakage
  • For pressures above 1.6MPa, use elastic pressure pads with bolts to prevent loosening
  • In vertical installations, provide vertical force support at both ends and consider anti-pull-off devices
