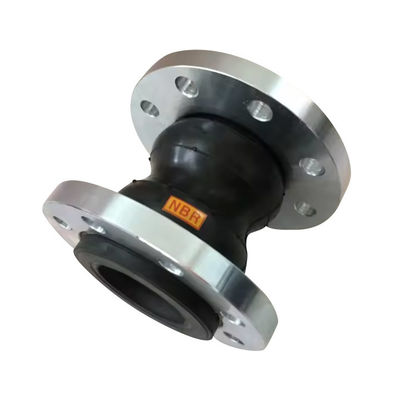

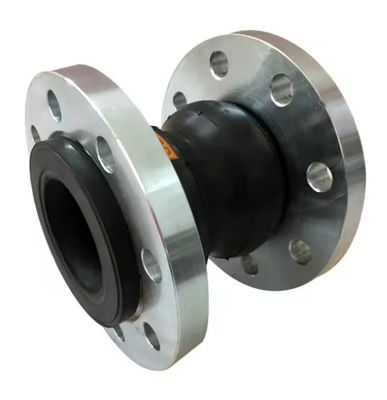

Double Ball EPDM Rubber Compensator Dn200 PN16 Expansion Joint Flange Type

Double Ball EPDM Rubber Compensator Dn200 PN16 Expansion Joint Flange Type
Double Ball EPDM Rubber Compensator Dn200 PN16 Expansion Joint Flange Type Double Ball EPDM Rubber Compensator Dn200 PN16 Expansion Joint Flange Type

Large Image :  Double Ball EPDM Rubber Compensator Dn200 PN16 Expansion Joint Flange Type

Product Details:
Place of Origin: China
Brand Name: Lianghe
Certification: ISO 9001:2015
Model Number: KST
Payment & Shipping Terms:
Minimum Order Quantity: 10 set
Price: $25.8-99.9 per set
Packaging Details: loading wooden cases (1.1m*1.1m*1.1m)
Delivery Time: 7-15 work days
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 9000 set per month
Contact Now Chat Now

Double Ball EPDM Rubber Compensator Dn200 PN16 Expansion Joint Flange Type

Description
Product Name: Dn200 PN16 Double Ball Compensator Flexible Rubber Joint Size: 1 1/2~32inch (DN40~DN800mm)
Corrosion Resistance: Yes Lateral Deflection: 20mm
Temperature Range: -20℃ To 115℃ Marks On Body: Size And Pressure
Marks On Flange: Size,pressure And Standard Etc.
Highlight:

Double Ball EPDM Rubber Compensator

,

EPDM Rubber Compensator Dn200 PN16

,

PN16 Expansion Joint Flange Type

Double Ball EPDM Rubber Compensator Dn200 PN16 Expansion Joint Flange Type
Product Description

Dn200 PN16 Double Ball Compensator Flexible Rubber Joint EPDM Rubber Flange Joint

Rubber joints, also known as flexible rubber joints, rubber soft joints, or rubber compensators, are essential components for piping systems. Available in various connection types including loose flange, fixed flange, and threaded types, as well as structural variations like single sphere, double sphere, and elbow sphere designs.

Construction

The tubular rubber components consist of inner and outer rubber layers, reinforced with cord layers and wire rings, vulcanized together with metal flanges or parallel joints for superior durability.

Installation Method

For optimal performance, installation bolts should be tightened symmetrically and gradually to prevent leaks. Keep the joint away from heat sources during installation. The double ball design ensures minimal deformation under pressure while maintaining excellent pulse performance.

Key Features
  • Compact size and lightweight construction for easy installation and maintenance
  • Accommodates horizontal, vertical, and angular displacements without flange alignment restrictions
  • Effective vibration dampening and noise reduction capabilities
  • Exceptional corrosion resistance for extended service life
Technical Specifications
Nominal Diameter Length (mm) Center Distance (mm) Number of Holes-Diameter Axial Displacement (mm) Lateral Displacement Angular Displacement
40 | 1 1/2" 165 110 4-18 30 | 50 45 35°
50 | 2" 165 125 4-18 30 | 50 45 35°
65 | 2 1/2" 175 145 4-18 30 | 50 45 35°
80 | 3" 175 160 8-18 35 | 50 45 35°
100 | 4" 225 180 8-18 35 | 50 40 35°
125 | 5" 230 210 8-18 35 | 50 40 35°
150 | 6" 325 240 8-22 35 | 50 40 35°
200 | 8" 325 295 8-22 35 | 50 40 35°
250 | 10" 325 350 12-22 35 | 60 35 30°
300 | 12" 325 400 12-22 35 | 60 35 30°
350 | 14" 350 460 16-22 35 | 60 35 30°
400 | 16" 350 515 16-26 35 | 60 35 30°
450 | 18" 350 565 20-26 35 | 60 35 30°
500 | 20" 350 620 20-26 35 | 60 35 30°
600 | 24" 400 725 20-30 35 | 60 35 30°
Product Packaging
Double Ball EPDM Rubber Compensator Dn200 PN16 Expansion Joint Flange Type 0
Frequently Asked Questions
Q1: What's the face to face length?
A1: Standard lengths include L130, L150, and L230. Custom lengths are available upon request.
Q2: Are you trading company or manufacturer?
A2: We are a manufacturer with over 20 years of experience producing rubber expansion joints, metal bellows, flexible hoses, and related piping components.
Q3: Can you provide drawings and technical data?
A3: Yes, our technical department can provide detailed drawings and specifications.
Q4: What are the flange standards?
A4: We support ANSI 150Lb, DIN PN16, BS4504, JIS 10K standards, and can customize to your specific flange requirements.
