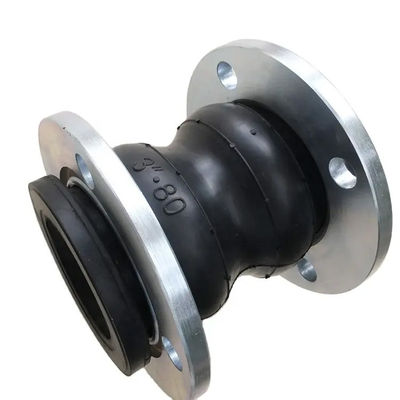

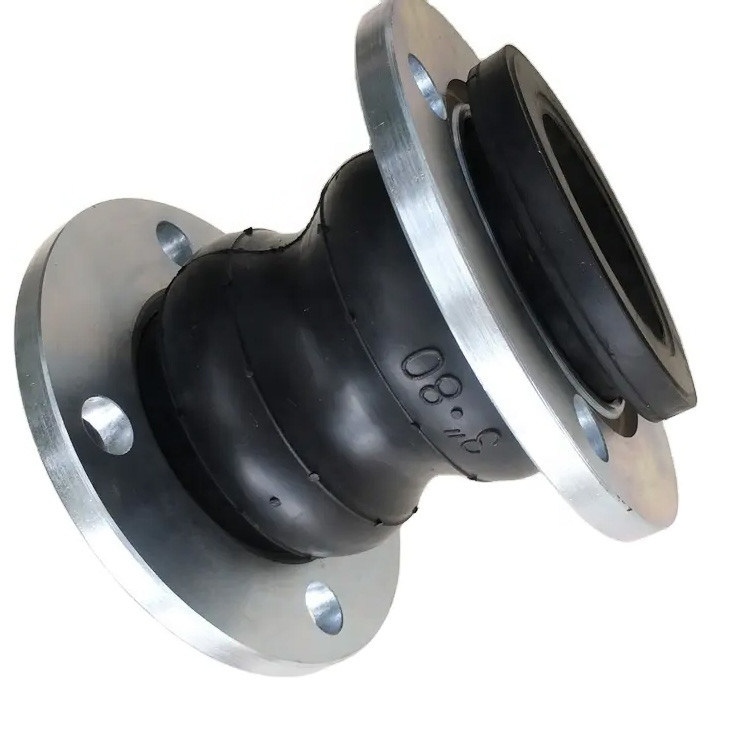

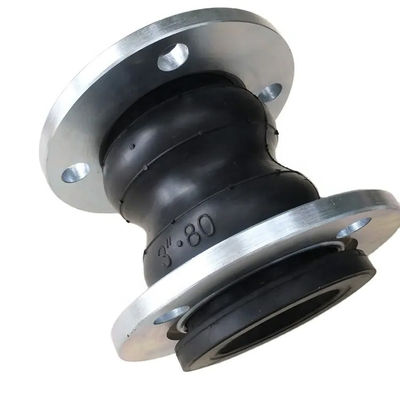

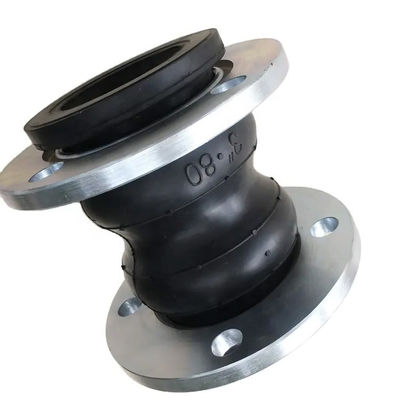

NBR Flanged Rubber Expansion Joint Customizable Corrugated Compensator

NBR Flanged Rubber Expansion Joint Customizable Corrugated Compensator
NBR Flanged Rubber Expansion Joint Customizable Corrugated Compensator NBR Flanged Rubber Expansion Joint Customizable Corrugated Compensator NBR Flanged Rubber Expansion Joint Customizable Corrugated Compensator NBR Flanged Rubber Expansion Joint Customizable Corrugated Compensator

Large Image :  NBR Flanged Rubber Expansion Joint Customizable Corrugated Compensator

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: KST
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄25.6-32.9 per set
Packaging Details: cartons,wooden cases
Delivery Time: 1-7 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 6000 piece per month
Contact Now Chat Now

NBR Flanged Rubber Expansion Joint Customizable Corrugated Compensator

Description
Usage: Air, Water, Oil, Weak Acid Body Material: SS304/SS316 Etc
Rubber Material: NR, EPDM, NBR, PTFE,Neoprene Size: DN32 - 3000mm
Pressure: PN10/PN16/PN25/PN40 Installation Manual: Offer
Technics: Forged/casting/vulcanization
Highlight:

NBR Flanged Rubber Expansion Joint

,

Flanged Rubber Expansion Joint Customizable

,

Customizable Corrugated Compensator

NBR Flanged Rubber Expansion Joint Customizable Corrugated Compensator
JIS 10K Customizable Stainless Steel Flanged NBR Corrugated Compensator Rubber Expansion Joints
Product Features
  • Flexibility: Double-sphere design enhances flexibility to accommodate displacements from earthquakes, temperature changes, or ground subsidence, protecting pipelines and ensuring system stability.
  • Weather Resistance: Specially formulated rubber maintains stable properties across extreme temperatures, from arctic cold to tropical heat.
  • Superior Sealing: Smooth inner wall reduces fluid resistance, lowers energy consumption, and minimizes noise pollution while facilitating easy installation and maintenance.
  • Vibration Dampening: Effectively absorbs pipeline vibrations, reducing mechanical impact on surrounding equipment and improving work environment conditions.
  • High Performance: Features high pressure resistance, excellent elasticity, and large displacement capacity to balance pipeline deviations and absorb vibrations.
  • Wide Applications: Suitable for chemical/petroleum, power generation, metallurgy, shipbuilding, construction, and other industrial applications with complex requirements.
Product Parameters
Nominal Diameter Length (mm) Axial Displacement (mm) Lateral Displacement (mm) Angular Displacement
mm inch Elongation Compression
401 1/216530504535°
50216530504535°
652 1/217530504535°
80317535504535°
100422535504035°
125523035504035°
150632535504035°
200832535504035°
2501032535603530°
3001232535603530°
3501435035603530°
4001635035603530°
4501835035603530°
5002035035603530°
6002440035603530°
Note: The above data represents standard sizes. Contact us for custom dimensions.
NBR Flanged Rubber Expansion Joint Customizable Corrugated Compensator 0
Workshop Display
NBR Flanged Rubber Expansion Joint Customizable Corrugated Compensator 1
Frequently Asked Questions
Can the length of the double ball be customized?
Yes, we have various specification molds and can customize lengths to your requirements.
What about the warranty period?
Most products come with a one-year warranty.
What are the parts of your rubber joints?
Each joint consists of two flanges and a rubber sphere made of nylon cord fabric, steel wire rope, and compound rubber.
Do you receive customized orders?
Yes, we welcome ODM & OEM custom orders.
Can I request to change the form of packaging and transportation?
Yes, we can accommodate special packaging/transport requests with associated cost coverage by the customer.
What are our rubber materials?
We use natural rubber, butyl rubber, nitrile rubber, EPDM, neoprene, fluorine rubber, and food-grade rubber compounds.

Tag:

twin sphere rubber expansion joint,

double sphere flex connector,

flanged rubber expansion joint
