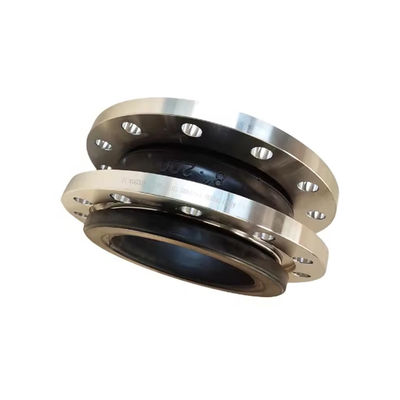

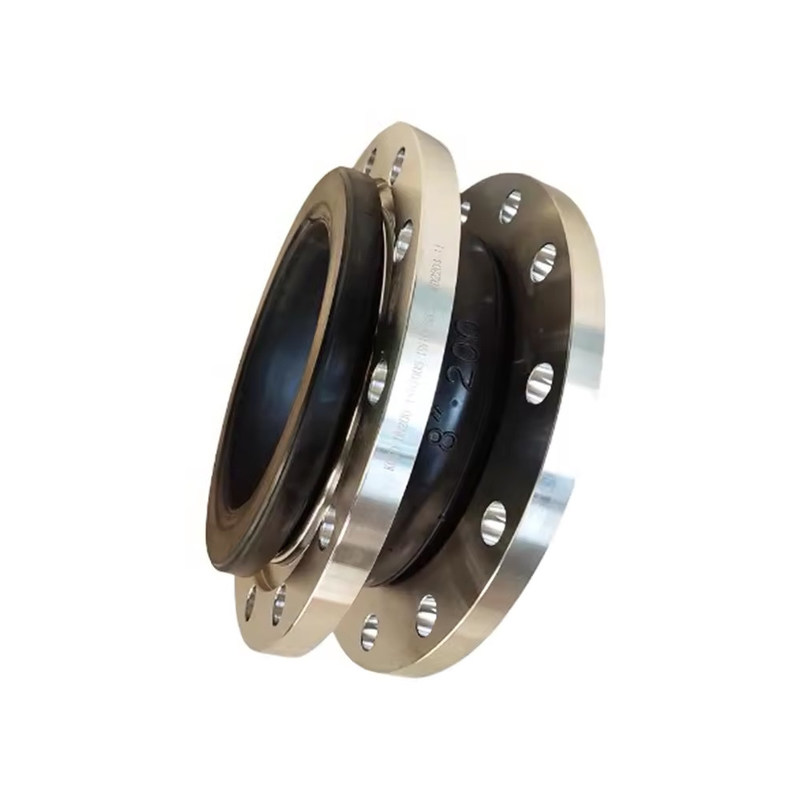

Rubber Flanged Rubber Expansion Joint Ss316 Flexible Rubber Joint Flange Of Single Ball

Rubber Flanged Rubber Expansion Joint Ss316 Flexible Rubber Joint Flange Of Single Ball
Rubber Flanged Rubber Expansion Joint Ss316 Flexible Rubber Joint Flange Of Single Ball Rubber Flanged Rubber Expansion Joint Ss316 Flexible Rubber Joint Flange Of Single Ball

Large Image :  Rubber Flanged Rubber Expansion Joint Ss316 Flexible Rubber Joint Flange Of Single Ball

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: KXT
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄26.54-63.8 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-7day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 12000 piece per month
Contact Now Chat Now

Rubber Flanged Rubber Expansion Joint Ss316 Flexible Rubber Joint Flange Of Single Ball

Description
Test: 100% Tested Customized Support: OEM, ODM
Size: DN32-DN3000 Technics: EPDM Rubber Joint
Material: Q235 Application: Pipeline
Surface Treatment: Cold Galvanized
Highlight:

Single Ball flanged rubber expansion joint

,

Ss316 flexible rubber joint flange

,

Single Ball rubber bellow joint

Rubber Flanged Rubber Expansion Joint Ss316 Flexible Rubber Joint Flange Of Single Ball
Product Description

Rubber Compensator Expansion Joint Ss316 Flexible Rubber Expansion Joint EPDM Flexible Rubber Joint Of Single Ball

Product Structure Features
  • The single-ball flexible rubber joint can significantly reduce pipeline system vibration and noise while solving interface displacement, axial expansion, and misalignment issues.
  • Constructed from polar rubber material with excellent sealing properties, lightweight design, easy installation/maintenance, and long service life (avoid contact with sharp metal instruments).
  • For overhead installations, can be equipped with elastic brackets (bolts should be tightened diagonally during installation).
  • For high-pressure pipelines, limit bolts should connect the flanges at both ends.
Product Performance Characteristics
  • Compact size, lightweight, excellent elasticity, and easy installation/maintenance
  • Accommodates transverse, axial, and angular displacement during installation, unaffected by non-concentric pipelines or non-parallel flanges
  • Reduces structural noise transmission during operation with strong vibration absorption capability
Product Usage Instructions
  • For high-rise water supply applications, pipelines must have fixed supports or anti-pull support devices (support force must exceed axial force)
  • Available pressure ratings: 0.25Mpa, 1.0Mpa, 1.6Mpa, 2.5Mpa, 4.0Mpa (connection sizes refer to flange dimension table)
Main Connection Dimensions
Nominal Diameter Length (mm) Axial Displacement (mm) Horizontal Displacement (mm) Deflection Angle
mm inch Elongation Compression
321 1/49569915°
401 1/295610915°
5021057101015°
652 1/21157131115°
8031358151215°
100415010191315°
125516512191315°
150618012201415°
200821016252215°
2501023016252215°
3001224516252215°
3501425516252215°
4001625516252215°
4501825516252215°
5002025516252215°
6002426016252215°
7002826016252215°
8003226016252215°
9003626016252215°
10004026018262415°
12004826018262415°
14005635020282615°
16006435025353010°
18007235025353010°
20008042025353010°
22008842025353010°
24009642025353010°
260010445025353010°
280011245025353010°
300012050025353010°
Product Applications
Rubber Flanged Rubber Expansion Joint Ss316 Flexible Rubber Joint Flange Of Single Ball 0
Inventory
Rubber Flanged Rubber Expansion Joint Ss316 Flexible Rubber Joint Flange Of Single Ball 1
Frequently Asked Questions
Q: Do you accept small quantity orders?
A: Yes, we accept small quantity orders.
Q: What are your payment terms?
A: T/T (30% deposit, 70% balance before delivery) or L/C at sight.
Q: Can we choose different materials?
A: Yes, materials can be customized according to your requirements.
Q: What's your packaging?
A: Carton cases inside with export wooden cases outside.
Q: What is your shipment and delivery time?
A: By sea or air. Typically 7-14 days for delivery, depending on order quantity.
