Epdm Nbr Single Sphere Flange Rubber Expansion Joint For Pipe / Rubber Flexible Joint Flange Type

Epdm Nbr Single Sphere Flange Rubber Expansion Joint For Pipe / Rubber Flexible Joint Flange Type
Epdm Nbr Single Sphere Flange Rubber Expansion Joint For Pipe / Rubber Flexible Joint Flange Type Epdm Nbr Single Sphere Flange Rubber Expansion Joint For Pipe / Rubber Flexible Joint Flange Type Epdm Nbr Single Sphere Flange Rubber Expansion Joint For Pipe / Rubber Flexible Joint Flange Type

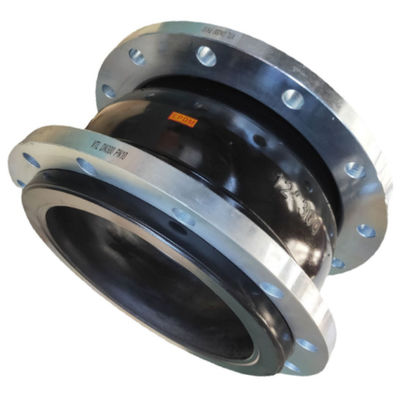

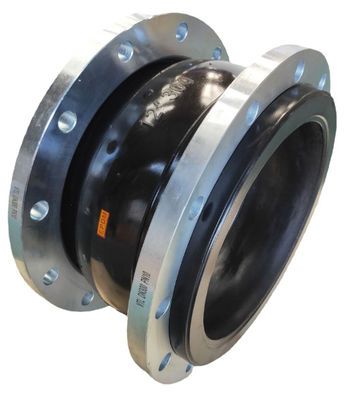

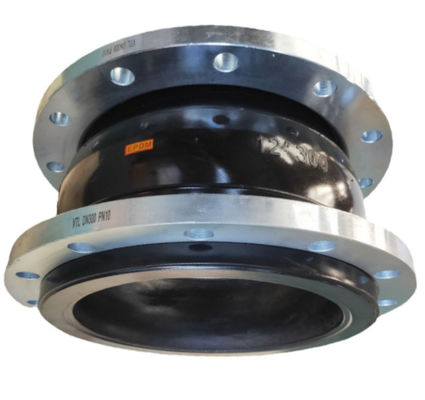

Large Image :  Epdm Nbr Single Sphere Flange Rubber Expansion Joint For Pipe / Rubber Flexible Joint Flange Type

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: KXT
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $24-58.7 per set
Packaging Details: cartons,wooden cases
Delivery Time: 5-10 work days
Payment Terms: T/T, D/A, D/P, Western Union, L/C, MoneyGram
Supply Ability: 10000 per set
Contact Now Chat Now

Epdm Nbr Single Sphere Flange Rubber Expansion Joint For Pipe / Rubber Flexible Joint Flange Type

Description
Product Name: Single Ball Rubber Joint Rubber Material: NR, EPDM, NBR, FKM Etc
Flange Joint Material: Q235B, SS304, SS316 Etc Customized Support: OEM,ODM Support
Warranty: 1 Year Connection: Flange
Antirust Process: Galvanized
Highlight:

Single Sphere rubber expansion joint for pipe

,

Epdm Nbr rubber expansion joint for pipe

,

Rubber flexible joint flange type

EPDM NBR Single Sphere Flange Rubber Expansion Joint
EPDM NBR Single Sphere Flange Connector Flexible Bellow Rubber Compensator Expansion Joint is designed for low pressure applications with a pressure rating of up to 150 PSI.
Product Features
  • Constructed from durable EPDM and NBR rubber materials
  • Flanged connection type for easy installation and maintenance
  • Excellent performance in extreme temperature conditions
  • Superior resistance to corrosion, abrasion, and aging
  • High durability for long service life
Manufacturing Advantages
  • Factory direct pricing
  • 20 years of manufacturing expertise
  • Quality exceeds industry standards with strict inspection
  • Multiple specifications available with custom and OEM support
  • Free samples available
Technical Specifications
Nominal Diameter Length (mm) Axial Displacement (mm) Horizontal Displacement (mm) Deflection Angle
mm inch Elongation Compression
321 1/4956915°
401 1/29561015°
50210571015°
652 1/211571315°
80313581515°
1004150101915°
1255165121915°
1506180122015°
2008210162515°
25010230162515°
30012245162515°
35014255162515°
40016255162515°
45018255162515°
50020255162515°
60024260162515°
70028260162515°
80032260162515°
90036260162515°
100040260182615°
120048260182615°
140056350202815°
160064350253510°
180072350253510°
200080420253510°
220088420253510°
240096420253510°
2600104450253510°
2800112450253510°
3000120500253510°
Application Fields
Epdm Nbr Single Sphere Flange Rubber Expansion Joint For Pipe / Rubber Flexible Joint Flange Type 0
Frequently Asked Questions
Q: What's the rubber material of single sphere rubber joint?
A: Available in EPDM, CR, NBR, FKM, and other materials depending on working environment and media requirements.
Q: What's the working pressure of flanged rubber flexible joint?
A: Available in 1.0Mpa, 1.6Mpa, and 2.5Mpa pressure ratings.
Q: What are the flange materials of single ball rubber joints?
A: Options include ductile iron, carbon steel, SS304, and SS316.
Q: What are the flange standards for single ball rubber joints?
A: Compliant with ANSI 150LB, DIN PN16, JIS 5K, JIS 10K, and ASME B16.47 standards.
