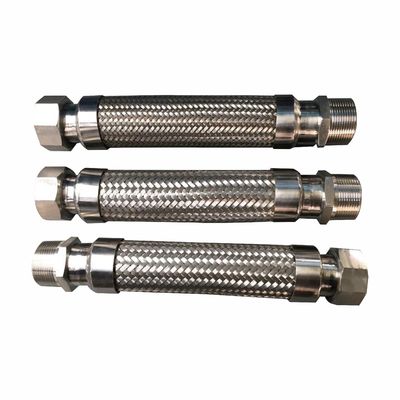

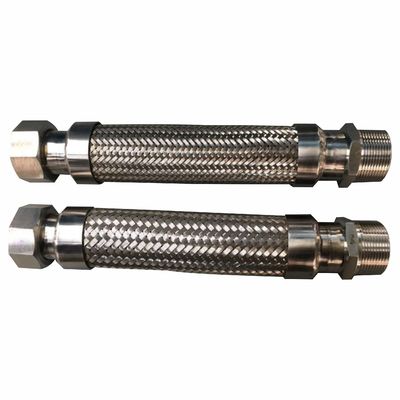

Stainless Steel 304 Threaded Flexible Hose Multiuse Union Type Pipe Fitting

Large Image : Stainless Steel 304 Threaded Flexible Hose Multiuse Union Type Pipe Fitting

Product Details:

Place of Origin:	Henan,China
Brand Name:	Liang He
Certification:	ISO 9001
Model Number:	JTW

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	＄3.50-24.20 per set
Packaging Details:	cartons,wooden cases
Delivery Time:	1-7 day
Payment Terms:	T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability:	6000 piece per month

Contact Now Chat Now

Stainless Steel 304 Threaded Flexible Hose Multiuse Union Type Pipe Fitting

Description

Technics:	Forged	Customized Support:	OEM, ODM
Feature:	Corrosion Resistance	Product Type:	Stainless Steel 304 Threaded Type Flexible Hose Multiuse Union Type Pipe Fitting
Material:	304/316 Stainless Steel	Temperature Of Media:	Medium Temperature
Media:	Gas，Water，Oil，Acid，Base
Highlight:	stainless steel threaded flexible hose , 304 threaded flexible hose , Union Type threaded flexible hose

Stainless Steel 304 Threaded Flexible Hose Multiuse Union Type Pipe Fitting

Product Description

The threaded metal hose is composed of a soft metal bellows with threaded joints at both ends. Made from stainless steel or other high-strength metals, it offers excellent corrosion resistance and compression resistance. The standard threaded connectors enable quick and easy installation.

Key Features

Flexible Design: Adapts to complex installation environments with excellent bending and stretching capabilities
High Temperature & Pressure Resistance: Stable performance in extreme temperature conditions and high-pressure applications
Superior Corrosion Resistance: Metal braid and lining resist various chemical media for corrosive liquid transfer
Easy Installation: Threaded connections eliminate need for welding or special tools
Low Maintenance: Simple inspection procedures ensure long service life

Technical Specifications

DN	Length (mm)	Axial Compression (mm)	Axial Extension (mm)	Horizontal Displacement (mm)	Deflection Angle (°)
15	280	10	5	20	450
20	280	10	5	20	450
25	280	10	5	20	450
32	280	10	5	20	450
40	300	10	5	20	450
50	300	10	5	20	450
65	300	10	5	20	450

Product Variants

Flange Metal Hose (Movable flange)

Flange Metal Hose (Fixed flange)

PTFE Lined Metal Hose

Threaded Metal Hose

Installation & Maintenance Guidelines

Purchase Considerations:

Select appropriate model and size
Choose material based on environment
Verify pressure rating for application

Installation:

Clean hose surface before installation
Ensure tight pipe end connections
Avoid excessive bending or stretching

Maintenance:

Regularly clean hose and fittings
Check for leaks at joints
Replace if deformed or cracked

Applications

Why Choose Our Products?

Large-scale manufacturing facility with 200+ production machines

Extensive product range with 1000+ models available

30+ years of specialized production experience

24/7 customer support with technical assistance

Competitive pricing with volume discounts

Reliable on-time delivery with production updates

1-year product warranty included

Global exports to 35+ countries
