DN200mm Stainless Steel Convoluted Hose PN16 Stainless Steel Braided Flex Tubes

Large Image : DN200mm Stainless Steel Convoluted Hose PN16 Stainless Steel Braided Flex Tubes

Product Details:

Place of Origin:	Henan,China
Brand Name:	Liang He
Certification:	ISO 9001
Model Number:	JTW

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	＄5.20-123.20 per set
Packaging Details:	cartons,wooden cases
Delivery Time:	3-7day
Payment Terms:	T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability:	6000 piece per month

Contact Now Chat Now

DN200mm Stainless Steel Convoluted Hose PN16 Stainless Steel Braided Flex Tubes

Description

Working Pressure:	1.0-2.5Mpa	Material:	Stainless Steel
Stock:	A Large Of Stock	Application:	General
Function:	Industry Application	Length:	Customized
Surface:	Smooth	Color:	Sliver
Warranty:	12 Months
Highlight:	DN200mm Stainless Steel Convoluted Hos , Stainless Steel Convoluted Hose PN16 , PN16 Stainless Steel Braided Flex Tubes

DN200mm Stainless Steel Convoluted Hose PN16 Stainless Steel Braided Flex Tubes

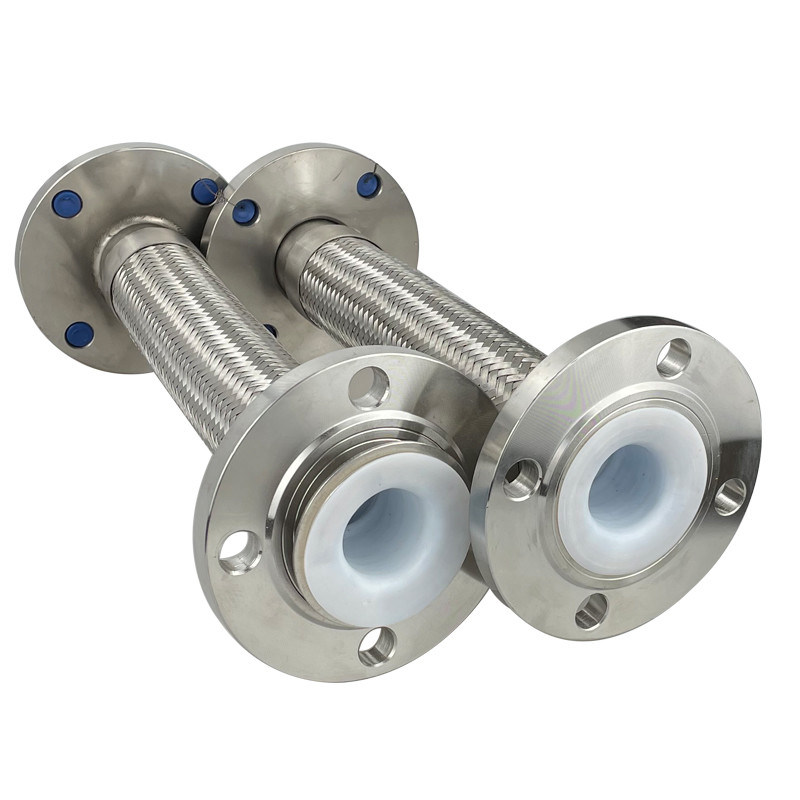

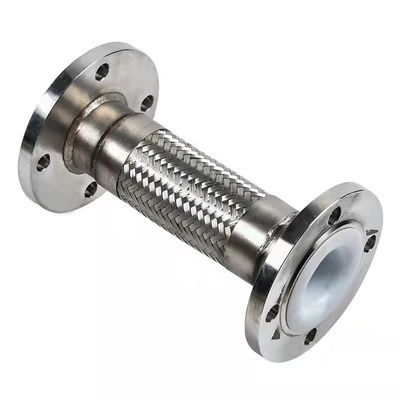

DN200 PN16 stainless steel flange connection lined with PTFE metal hose 304 stainless steel metal bellows

Product Performance Characteristics

Excellent corrosion resistance
Superior high and low temperature resistance
Outstanding anti-aging performance
Exceptional vacuum and high pressure resistance
Reliable sealing performance
High fatigue resistance
Effective anti-vibration capability
Easy installation
Strong insulation properties
Excellent non-stick and self-smoothing characteristics

Product Application Fields

Chemical Industry: Transporting corrosive media like acids, alkalis, and salts; used in heat exchangers and pipeline systems for oil refining, petrochemical, and fertilizer production.

Pharmaceutical Field: Ideal for hygienic piping systems in pharmaceutical and bioengineering due to superior corrosion resistance and safety.

Petroleum Industry: Suitable for drilling, transportation, and refining processes including oil/gas transmission pipelines and refinery systems.

Power Generation: Used in thermal systems, power stations, and nuclear plants to ensure safe and stable power system operation.

Environmental Protection: Withstands corrosive media in wastewater treatment and exhaust gas discharge equipment, reducing costs and extending equipment life.

Product Parameters

Nominal Diameter DN	Inner Diameter	Outer Diameter	Minimum Bending Radius	Working Pressure
8	8.8	13.2 \| 14.4	50 \| 110	15 \| 20
10	11.7	16.5 \| 17.7	65 \| 145	185 \| 20
15	13.5	19.5 \| 21.1	80 \| 180	18 \| 20
20	20.0	27 \| 28.6	120 \| 270	10 \| 15
25	27.0	34.5 \| 36.1	160 \| 360	6.3 \| 10
32	32.0	40 \| 41.6	175 \| 400	4.0 \| 6.3
40	39.6	52 \| 53.6	225 \| 510	4.0 \| 6.3
50	49.7	62 \| 63.6	280 \| 640	3.0 \| 5.0
65	61.2	80.2 \| 81.8	410 \| 915	3.0 \| 5.0
80	79.0	96.3 \| 97.9	486 \| 1030	3.0 \| 5.0
100	101.2	119.6 \| 121.2	610 \| 1340	2.5 \| 4.0
125	124.1	145.3 \| 146.9	700 \| 1540	2.5 \| 4.0
150	149.4	180.8 \| 182.4	810 \| 1780	2.5 \| 4.0
200	176.0	240 \| 243.2	1000 \| 2000	2.5 \| 4.0
250	248.0	290 \| 294	1250 \| 2500	2.5 \| 4.0
300	298.0	350 \| 354	1500 \| 3000	1.6 \| 2.5
350	347.0	400 \| 404.8	1750 \| 3500	1.6 \| 2.5
400	397.6	460 \| 464.8	2000 \| 4000	1.6 \| 2.5

Product Installation Precautions

Use specialized tools for assembly and pay attention to component orientation to prevent damage to bearings and seals
Avoid tipping or collisions during installation to maintain equipment lifespan
Follow torque specifications precisely when tightening bolts to prevent over/under tightening
Prevent impurities from entering equipment during installation to maintain proper sealing
Ensure proper pipe connections and verify check/gate valve orientations
Conduct leak tests post-installation and perform secondary grouting/fastening as required

Post-Installation Inspection & Maintenance

Perform comprehensive inspection and trial operation before commissioning
Thoroughly clean equipment and pipelines to remove all impurities before use
Apply anti-corrosion treatment and conduct regular inspections for long-term unused equipment

Product Display

Workshop Display

Why Choose Our Products?

Third-party tested quality assurance

20+ years of manufacturing expertise

Competitive pricing structure

24/7 customer support availability

Fast and reliable shipping

Small order acceptance and custom solutions

Global exports to 30+ countries

Comprehensive 1-year warranty
