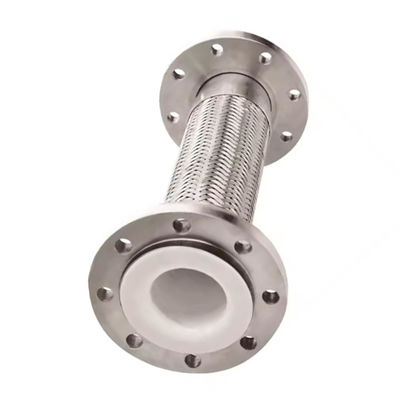

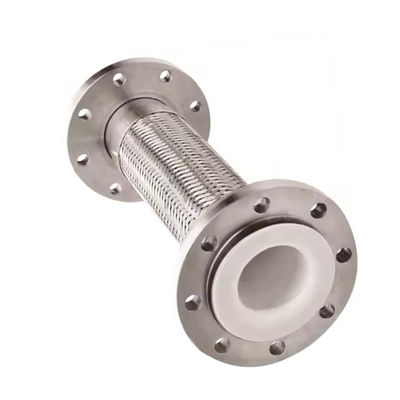

Flexible Stainless Steel Braided Hose DN8-DN400 316 Stainless Steel Braided Hose

Flexible Stainless Steel Braided Hose DN8-DN400 316 Stainless Steel Braided Hose
Flexible Stainless Steel Braided Hose DN8-DN400 316 Stainless Steel Braided Hose Flexible Stainless Steel Braided Hose DN8-DN400 316 Stainless Steel Braided Hose

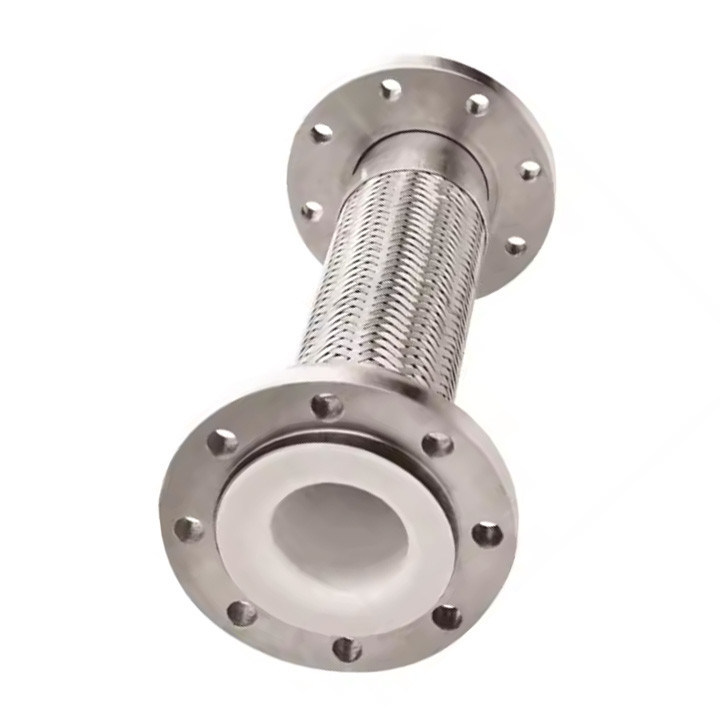

Large Image :  Flexible Stainless Steel Braided Hose DN8-DN400 316 Stainless Steel Braided Hose

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: JTW
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄23.6-69.2 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-7day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 8000 piece per month
Contact Now Chat Now

Flexible Stainless Steel Braided Hose DN8-DN400 316 Stainless Steel Braided Hose

Description
Shape: Equal Head Code: Round
Surface: Smooth Color: Sliver
Quality: High-quality Standard: DIN/ANSI/JIS/BS
Nominal Diameter: DN8-DN400
Highlight:

Flexible Stainless Steel Braided Hose DN8

,

Flexible Stainless Steel Braided Hose DN400

,

DN400 316 Stainless Steel Braided Hose

Flexible Stainless Steel Braided Hose DN8-DN400 316 Stainless Steel Braided Hose
1-12 inch fittings connect stainless steel large diameter SS304 and SS316 corrugated metal hoses
Product Features
  • Pressure resistance: Within the specified temperature range, the PTFE-lined metal hose can withstand the use pressure of up to 3MPa.
  • Flexibility and bending performance: Due to the use of metal hose as the base material, PTFE-lined metal hose has good flexibility and bending performance, which can adapt to different installation environments and complex pipeline layouts.
  • Sealing performance: The connection method is usually flange connection, and PTFE material is used as the sealing gasket, so it has good sealing performance and leakage prevention ability.
  • Permeation resistance: Through high-quality PTFE resin and advanced lining technology, PTFE metal lined hose has superior permeation resistance.
Product Application Field
  • Chemical industry
  • Environmental protection field
  • Pharmaceutical, food processing industry
  • Semiconductor manufacturing industry
  • Aerospace industry
  • Electronic equipment industry
Product Parameters
Flexible Stainless Steel Braided Hose DN8-DN400 316 Stainless Steel Braided Hose 0
Nominal diameter DN Inner diameter Outer diameter Minimum bending radius Working pressure
Bellows Braid mesh Static Dynamic Single braid mesh
8 8.8 13.2 14.4 50
10 11.7 16.5 17.7 65
15 13.5 19.5 21.1 80
20 20.0 27 28.6 120
25 27.0 34.5 36.1 160
32 32.0 40 41.6 175
40 39.6 52 53.6 225
50 49.7 62 63.6 280
65 61.2 80.2 81.8 410
80 79.0 96.3 97.9 486
100 101.2 119.6 121.2 610
125 124.1 145.3 146.9 700
150 149.4 180.8 182.4 810
200 176.0 240 243.2 1000
250 248.0 290 294 1250
300 298.0 350 354 1500
350 347.0 400 404.8 1750
400 397.6 460 464.8 2000
Preparation Before Product Installation
  • Check the equipment and tools: Make sure that all tools such as cutting tools, welding equipment, sealing materials, marking tools, etc. are fully prepared, and the equipment is working properly and without failure.
  • Check the size and specifications of the pipeline: Confirm that the size and specifications of all pipes and fittings are consistent with the design requirements.
  • Check the material and surface condition of the pipeline: Ensure that the metal surface is flat, smooth, free of porosity, depression and dead angle, and the weld part should be ground and show a smooth transition.
  • Selection of sealing materials: Choose appropriate sealing materials, such as sealant, gaskets, etc., to ensure the sealing performance of the joint.
Our Service
  • Strict quality control system up to ISO9001:2015, regular stress testing, third-party testing if required
  • Fast delivery - Varieties are in stock and ordered urgently.
  • Competitive factory price
  • Full technical support from drawing design to after-sales
  • Product customization/packaging customization/pattern and logo customization
  • Accept small quantity orders/OEM orders.
Product Applications
Flexible Stainless Steel Braided Hose DN8-DN400 316 Stainless Steel Braided Hose 1
Factory Display
Flexible Stainless Steel Braided Hose DN8-DN400 316 Stainless Steel Braided Hose 2
FAQ
Q: Can the length of the metal hose be customized?
A: Of course, we have many different specifications and models of molds, which can be customized according to your length.
Q: What is the working pressure of a metal hose?
A: 0.6-2.5Mpa.
Q: Can I choose a flange made of different materials?
A: Yes, we have stainless steel SS304, PTFE, which can be made according to customer's requirements.
Q: How about the quality of your products?
A: The quality of our products is very good, and they are all third-party inspected.
Q: Do you accept small order quantities?
A: Yes, we accept.
