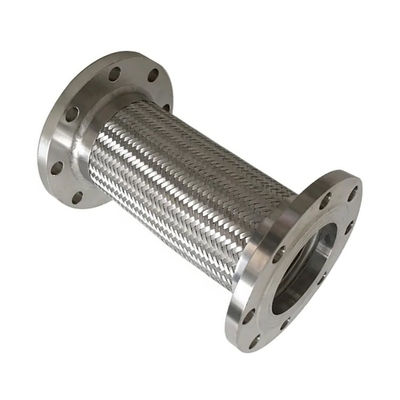

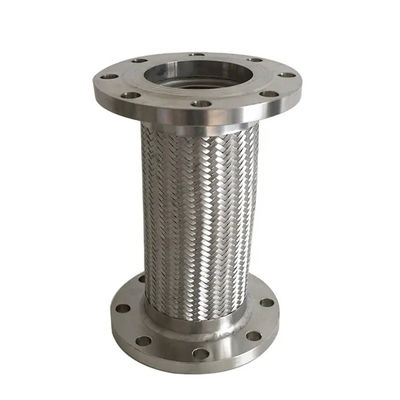

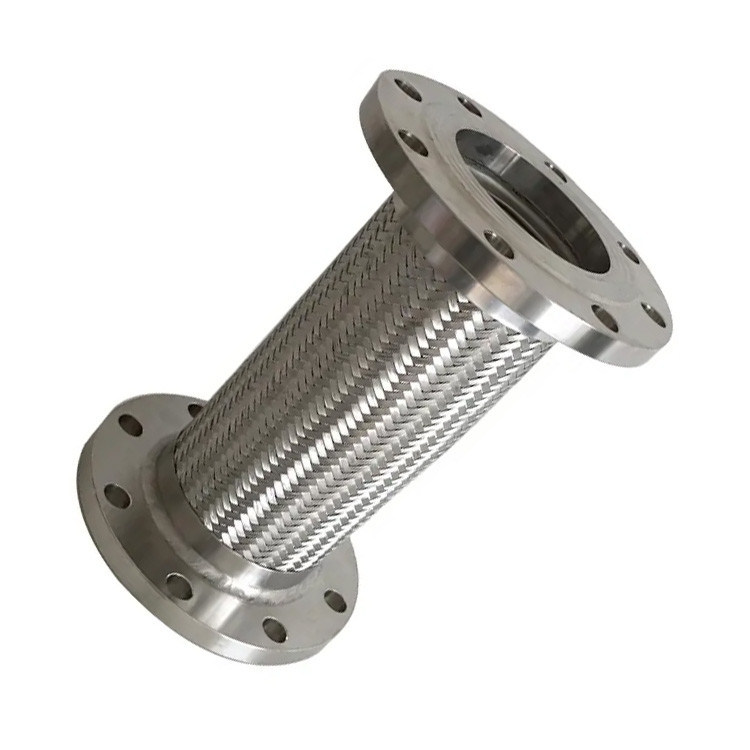

DN125 PN16 Flange Expansion Joint Flexible Metal Braided Hose

DN125 PN16 Flange Expansion Joint Flexible Metal Braided Hose
DN125 PN16 Flange Expansion Joint Flexible Metal Braided Hose DN125 PN16 Flange Expansion Joint Flexible Metal Braided Hose DN125 PN16 Flange Expansion Joint Flexible Metal Braided Hose

Large Image :  DN125 PN16 Flange Expansion Joint Flexible Metal Braided Hose

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: JTW
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄10.2-18.3 per set
Packaging Details: cartons,wooden cases
Delivery Time: 1-7 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 10000 piece per month
Contact Now Chat Now

DN125 PN16 Flange Expansion Joint Flexible Metal Braided Hose

Description
Application: Construction, Agriculture, Steam Equipment, Etc Working Pressure: 6-40bars
Sample: Free Offer Installation Length: Support Customization
Applicable Media: Water,hot Water,steam,oil,air Technics: Forged
Warranty: 1 Year Customized Support: OEM, ODM
Connection: Flange
Highlight:

DN125 PN16 Flange Expansion Joint

,

PN16 Flexible Metal Braided Hose

,

DN125 Flexible Metal Braided Hose

DN125 PN16 Flange Expansion Joint Flexible Metal Braided Hose
DN125 PN16 Flange Connection Stainless Steel 316 Wire Braided Flexible Flange Metal Fitting Hose
Product Role
  • Connection: Flanged metal hose can connect pipes and equipment of different sizes or types between pipes and equipment to achieve flexible connection of pipelines.
  • Buffering effect: It can buffer the vibration and impact of the pipeline during normal operation, prevent the stress concentration caused by the expansion or deformation of the pipeline, so as to prolong the service life of the pipeline and equipment.
  • Compensation: Through the expansion and contraction deformation of the bellows, the changes in temperature, vibration or installation error of the pipeline are compensated to ensure the normal operation of the pipeline system.
Product Structure Features
Flanged metal hoses are made of stainless steel or other corrosion-resistant metal materials and are typically connected to the piping system by flanges at both ends. Its structure is composed of inner and outer layers: the inner layer is a metal bellows, which is responsible for transferring the fluid medium; the outer layer is reinforced by a mesh structure with good compressive and tensile properties.
Product Application Scenarios
  • Petrochemical industry: Used to transport corrosive media with high temperature and high pressure to ensure the smooth flow of fluids, and to prolong the life of the equipment by absorbing shock and absorbing the displacement of thermal expansion and contraction.
  • Building and HVAC system: Next to the equipment with strong vibration, reduce the vibration transmission of the equipment and ensure the smooth operation of the system.
  • Ship and marine engineering: When the ship equipment is in operation, the vibration is large, and the flanged metal hose can effectively reduce the vibration and noise.
Product Parameters
Nominal diameter DN Inner diameter Outer diameter Minimum bending radius Working pressure
8 8.8 13.2 14.4 50
10 11.7 16.5 17.7 65
15 13.5 19.5 21.1 80
20 20.0 27 28.6 120
25 27.0 34.5 36.1 160
32 32.0 40 41.6 175
40 39.6 52 53.6 225
50 49.7 62 63.6 280
65 61.2 80.2 81.8 410
80 79.0 96.3 97.9 486
100 101.2 119.6 121.2 610
125 124.1 145.3 146.9 700
150 149.4 180.8 182.4 810
200 176.0 240 243.2 1000
250 248.0 290 294 1250
300 298.0 350 354 1500
350 347.0 400 404.8 1750
400 397.6 460 464.8 2000
Product Installation Steps
  1. Check the hose and flange
  2. Clean the pipe interface
  3. Install the clamp
  4. Connect the hose to the pipe
  5. Check the installation quality
Maintenance of the Product
  • Avoid twisting: Twisting of the metal hose should be avoided during installation, otherwise its service life will be significantly shortened.
  • Regular inspection: Regularly check whether the bolts, washers and other components at the flange connection are loose or damaged to ensure the sealing performance of the hose.
  • Replacement cycle: Replace the metal hose regularly according to the use environment and frequency to avoid the reduction of material toughness due to long-term exposure to high temperature, acid and alkali and other harsh conditions.
Product Display
DN125 PN16 Flange Expansion Joint Flexible Metal Braided Hose 0
Product Applications
DN125 PN16 Flange Expansion Joint Flexible Metal Braided Hose 1
FAQ
What is your shipment and delivery time?
By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
What are your payment terms?
T/T (30% as deposit, the rest 70% will be paid before delivery), L/C at sight.
Can you make the product as per client's requirement?
Yes, we can make it with your exact requirement.
Can I visit your factory before the order?
Yes, welcome to our factory to check the quality.
Where is your nearest loading port?
Shanghai, Qingdao or Tianjin in China.
