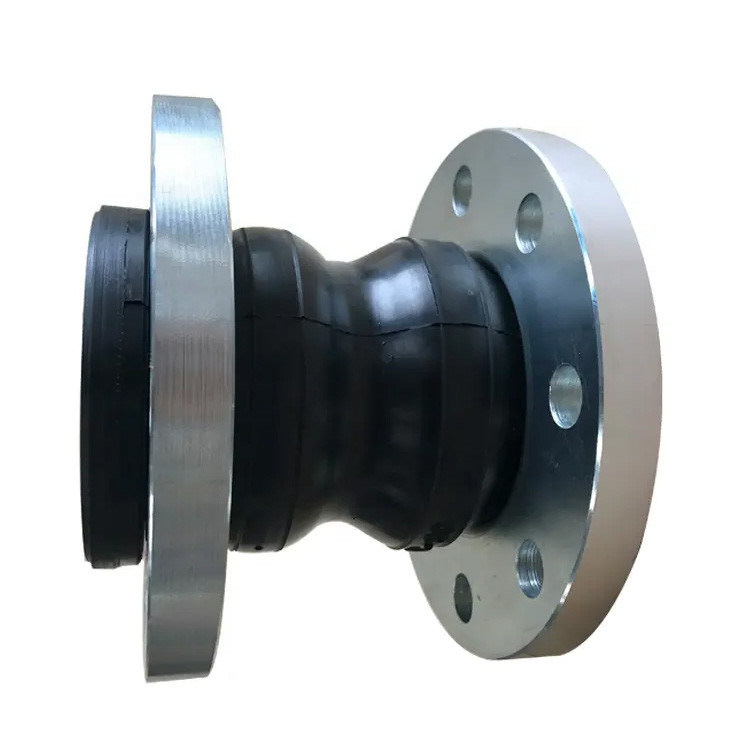

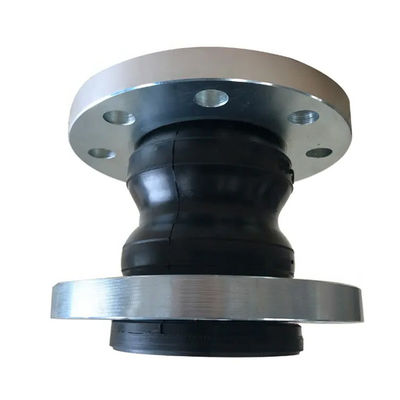

6 Inch Expansion Joint PN10 PN25 Flanged Expansion Joint Pipe Fitting

6 Inch Expansion Joint PN10 PN25 Flanged Expansion Joint Pipe Fitting
6 Inch Expansion Joint PN10 PN25 Flanged Expansion Joint Pipe Fitting 6 Inch Expansion Joint PN10 PN25 Flanged Expansion Joint Pipe Fitting

Large Image :  6 Inch Expansion Joint PN10 PN25 Flanged Expansion Joint Pipe Fitting

Product Details:
Place of Origin: China
Brand Name: Lianghe
Certification: ISO 9001:2015
Model Number: KXT
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $8-$11
Packaging Details: Inside: Plastic Film ，Outside: Wooden Case
Delivery Time: 7-15 work days
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 5000 set per month
Contact Now Chat Now

6 Inch Expansion Joint PN10 PN25 Flanged Expansion Joint Pipe Fitting

Description
Product Name: Shock-absorbing Rubber Expansion Joint Double Sphere Overall Length: According To Requirements
Flange Material: Stainless Steel Rubber Material: EPDM,NR,NBR,PTFE,etc
Flange Standard: DIN JIS GB,etc Pipe Features: Flexible
Working Pressure: PN6,PN10,PN16,PN25
Highlight:

6 Inch Expansion Joint PN10

,

6 Inch Expansion Joint PN25

,

PN25 Flanged Expansion Joint Pipe Fitting

6 Inch Expansion Joint PN10 PN25 Flanged Expansion Joint Pipe Fitting
6inch PN10 PN25 Water Plant Flexible Stainless Steel Shock-absorbing Rubber Expansion Joint double sphere
Double ball rubber joint:

Used for displacement compensation, vibration reduction, noise reduction, and installation error absorption in piping systems, featuring a double corrugated design; suitable for high-pressure, large displacement, and strong vibration critical pipelines.

6 Inch Expansion Joint PN10 PN25 Flanged Expansion Joint Pipe Fitting 0
Advantages of Double Ball Rubber Joints
  • Superior Displacement Compensation
    Three-dimensional compensation: axial ±15 mm + lateral ±10 mm + angular ±5° (under DN100 conditions)
    Comparative Advantage: 40% improvement in compensation capacity compared to single-ball joints, no additional hinge brackets required
  • Excellent Vibration Damping and Noise Reduction
    Vibration transmission rate ≤5% (tested data, single-ball joints approximately 15%)
    Case Study: Noise levels in a power plant's pump room reduced from 95 dB to 75 dB
  • Long-Term Fatigue Resistance
    Dynamic Lifespan: ≥5,000 full displacement cycles (GB/T 26121 standard)
    Enhanced Design: Double-layer steel wire skeleton
Connection data table for double sphere rubber expansion joints
Nominal diameter Length(mm) Axial displacement(mm) Lateral displacement Angular displacement
40 | 1 1/2 165 30 50 | 45 35°
50 | 2 165 30 50 | 45 35°
65 | 2 1/2 175 30 50 | 45 35°
80 | 3 175 35 50 | 45 35°
100 | 4 225 35 50 | 40 35°
125 | 5 230 35 50 | 40 35°
150 | 6 325 35 50 | 40 35°
200 | 8 325 35 50 | 40 35°
250 | 10 325 35 60 | 35 30°
300 | 12 325 35 60 | 35 30°
350 | 14 350 35 60 | 35 30°
400 | 16 350 35 60 | 35 30°
450 | 18 350 35 60 | 35 30°
500 | 20 350 35 60 | 35 30°
600 | 24 400 35 60 | 35 30°
The data above is only for reference, please contact us for exact data and price.
Displacement diagram of double ball rubber joint
6 Inch Expansion Joint PN10 PN25 Flanged Expansion Joint Pipe Fitting 1
Details of double ball rubber joints
6 Inch Expansion Joint PN10 PN25 Flanged Expansion Joint Pipe Fitting 2
Double ball rubber joint with different rubber materials
6 Inch Expansion Joint PN10 PN25 Flanged Expansion Joint Pipe Fitting 3
Core application areas of double ball rubber joints
  • Municipal water supply: vibration reduction at pump inlets and outlets, compensation for thermal expansion and contraction of pipes
  • Electricity/nuclear power: turbine circulating water pipes, nuclear power plant cooling systems
  • HVAC: Central air conditioning chilled water circulation, boiler steam pipes
  • Metallurgy/Mining: Blast furnace cooling systems, slurry transport pipelines
6 Inch Expansion Joint PN10 PN25 Flanged Expansion Joint Pipe Fitting 4
