Dn150 Double Sphere Expansion Joint Stainless Steel Flanged Rubber Bellows

Dn150 Double Sphere Expansion Joint Stainless Steel Flanged Rubber Bellows
Dn150 Double Sphere Expansion Joint Stainless Steel Flanged Rubber Bellows Dn150 Double Sphere Expansion Joint Stainless Steel Flanged Rubber Bellows Dn150 Double Sphere Expansion Joint Stainless Steel Flanged Rubber Bellows Dn150 Double Sphere Expansion Joint Stainless Steel Flanged Rubber Bellows

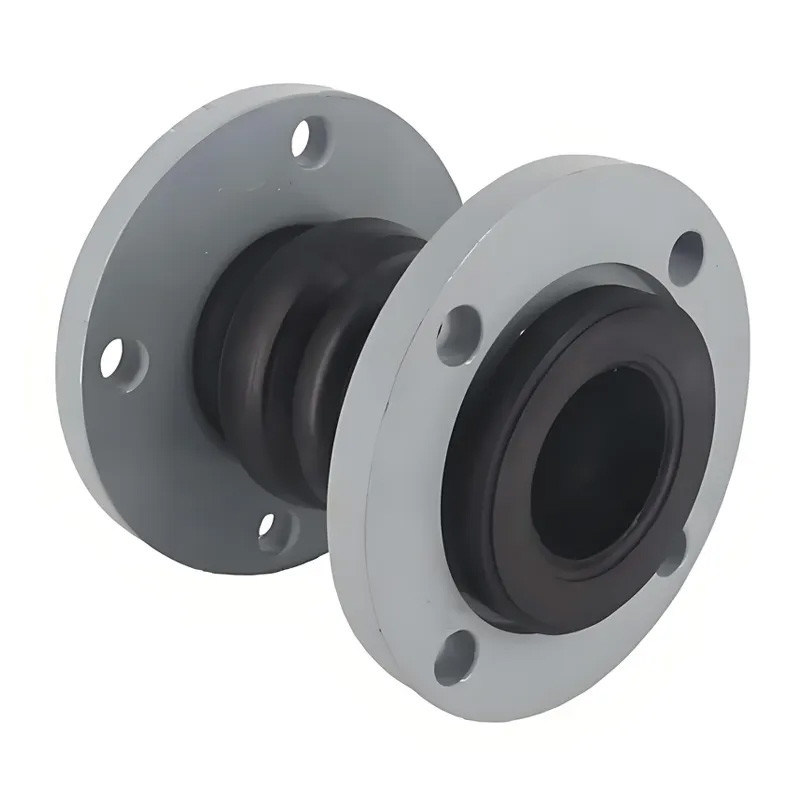

Large Image :  Dn150 Double Sphere Expansion Joint Stainless Steel Flanged Rubber Bellows

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: KST
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄6.88-59.6 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-7 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 8000 piece per month
Contact Now Chat Now

Dn150 Double Sphere Expansion Joint Stainless Steel Flanged Rubber Bellows

Description
Customized Support: OEM, ODM Connection: Flange
Technology: Forged, Casting, Vulcanization Working Pressure: 1.0-2.5Mpa
Working Temperature: -20℃~150℃ Material Of Flange: Carbon Steel, Stainless Steel 304,316 Etc.
Product Drawings: Offer
Highlight:

Dn150 Double Sphere Expansion Joint

,

Dn150 Flanged Rubber Bellows

,

Stainless Steel Flanged Rubber Bellows

DN150 Double Sphere Expansion Joint Stainless Steel Flanged Rubber Bellows
Product Description
DN150 Flange Type Double Ball Flexible Stainless Steel Thread Expansion Joint
Key Benefits
  • Excellent sealing and easy installation: Features superior sealing properties with convenient installation and maintenance, protecting against sharp equipment damage.
  • Extended service life: Durable construction reduces replacement frequency and maintenance costs.
  • Superior corrosion resistance: Compatible with various media for stable pipeline system operation.
  • High temperature resistance: Maintains stability with minimal compression deformation in high-temperature environments.
  • Enhanced elasticity: Uniform foam density ensures stability and safety during operation.
  • Environmentally friendly: Made from 100% high-quality rubber materials meeting strict environmental standards.
  • Cost-effective solution: Economical pricing with long lifespan and low maintenance requirements.
Installation Method
  • Pre-installation preparation
  • Special case handling
  • Optimal location selection
  • Transportation and handling precautions
  • Pipeline connection
  • Proper fixing and support
Technical Specifications
Model KST-1 KST-2 KST-3
Working Pressure (MPa/kgf/cm²) 1(10) 1.6(16) 2.5(25)
Burst Pressure (MPa/kgf/cm²) 2(20) 3(30) 4.5(45)
Vacuum Degree (kPa/mmHg) 53.3(400) 86.7(650) 100(750)
Temperature Range -20℃ to 150℃
Material Composition
Component Material
Inner/Outer Rubber Layers NR, NBR, EPDM, etc.
Frame Nylon Cord Fabric
Pressurized Ring Steel Wire Strand
Flange Ductile Iron, Carbon Steel, Stainless Steel

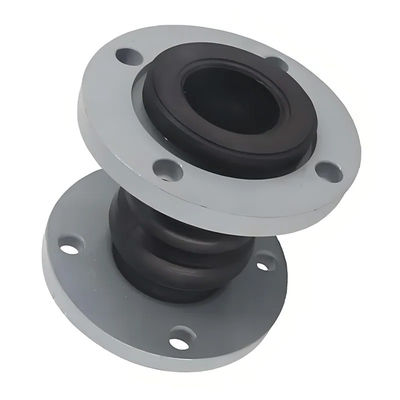

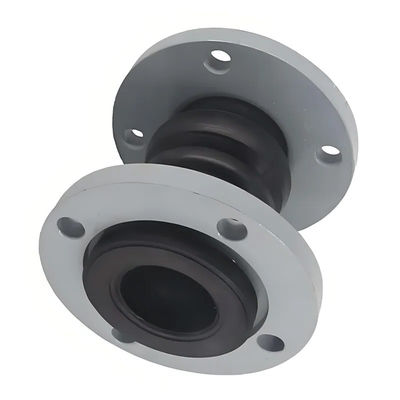

Dn150 Double Sphere Expansion Joint Stainless Steel Flanged Rubber Bellows 0 Dn150 Double Sphere Expansion Joint Stainless Steel Flanged Rubber Bellows 1
Frequently Asked Questions
What are the typical applications for these rubber joints?
Commonly used in water plants, power plants, sewage treatment facilities, and fire protection systems.
How are the rubber joints connected?
Standard flange connection method.
What is the packaging method?
Plastic film wrapping followed by carton and wooden case packaging. Custom packaging available upon request.
What size range is available?
Available in DN32 to DN3200mm sizes.
Can the length be customized?
Yes, we offer custom lengths using our extensive range of molds.
What flange standards do you support?
Compatible with DIN, ANSI, BS, ISO, JIS, and EN 1092 standards.

Tag:

twin sphere rubber expansion joint,

double sphere flex connector,

flanged rubber expansion joint
