DN65mm-DN2000mm Flexible Rubber Joint Flange Compensator For Water Pipe

DN65mm-DN2000mm Flexible Rubber Joint Flange Compensator For Water Pipe
DN65mm-DN2000mm Flexible Rubber Joint Flange Compensator For Water Pipe DN65mm-DN2000mm Flexible Rubber Joint Flange Compensator For Water Pipe DN65mm-DN2000mm Flexible Rubber Joint Flange Compensator For Water Pipe

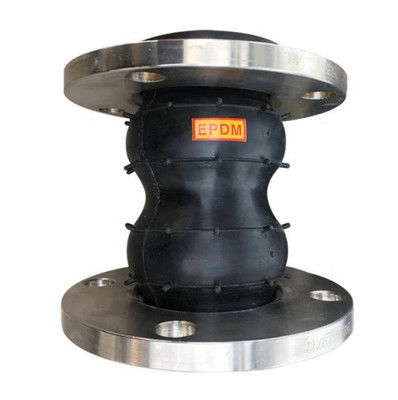

Large Image :  DN65mm-DN2000mm Flexible Rubber Joint Flange Compensator For Water Pipe

Product Details:
Place of Origin: China
Brand Name: Lianghe
Certification: ISO 9001 : 2015
Model Number: KST
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: ＄28-75 per set
Packaging Details: Fumigation-free wooden box（1.1*1.1*1.1m)
Delivery Time: 5-15work days
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 7000 set per month
Contact Now Chat Now

DN65mm-DN2000mm Flexible Rubber Joint Flange Compensator For Water Pipe

Description
Size: DN25-DN2000 Connection: Flange, Tie Rods
Application: Water, Sewage, Chemicals, Etc. Installation Type: Horizontal/Vertical
Shock Absorption: Yes Flange Material: Carbon Steel,cast Steel,cast Iron
Sample: Free Sample
Highlight:

DN2000mm Flexible Rubber Joint Flange

,

DN65mm Flexible Rubber Joint Flange

,

DN65mm Rubber Joint Flange Compensator

DN65mm-DN2000mm Flexible Rubber Joint Flange Compensator For Water Pipe
Twin Sphere Neoprene Rubber Joint Dn65 Water Pipe Coupling Carbon Steel Din Galvanized Flange Compensator
Product Information
  • Product Alias: Flexible Rubber Joint, Rubber Joint, Rubber Soft Connection, Shock Absorber, Flange Soft Connection, Rubber Pipe Joint, double arch rubber absorb shock expansion joint, Rubber Bellow Joint, flexible flange ball joint etc.
  • Product Specification: DN25mm-DN2000mm
  • Product Pressure: 0.6-2.5MPa
  • Level of shock Absorption: A level, shock absorption is very high
  • Product Certification: ISO9001:2015
  • Scope of Application: acid, alkali, corrosion, oil, hot and cold water, compressed natural gas, compressed air
The double ball rubber joint is composed of inner rubber layer, nylon cord fabric reinforcing layer, outer composite rubber ball and metal flange. The multi wave design increases the length of the double ball rubber joint and the amount of compensation.
This double sphere rubber expansion joint uses the high air tightness of rubber elastic medium resistance of weathering and radiation resistance, high strength and a little cold and heat stability of polyester cord skew and the composite by high pressure, high temperature mold vulcanization.
Product Advantages
  • The sphere is longer and has better vibration and noise reduction effects
  • Good telescopic displacement performance and longer service life than single ball rubber joints
  • Small size, light weight, good flexibility, and convenient installation and maintenance
  • Absorbable displacement after installation
  • Reduce noise
General Parameters
Nominal Diameter DN25-DN800
Working Pressure PN6, PN10, PN16, PN25
Working Temperature -20℃-130℃
Working Medium Water, Oil, Acid, Alkali, etc
Material Data Sheet
NO Name Material Remarks
1 Outer/inner rubber EPDM, NR, NBR, PTFE, BR, CR, BR+CR, FKM, Sylopute Select different materials according to the media.
2 Frame Nylon cord fabric The density and number of layers determine the pressure.
3 Pressurized ring Steel wire strand Prevent pressure bearing deformation from being pulled off.
4 Flange Stainless steel, carbon steel, ductile iron Choose different materials according to your requirements.
Double Ball Joints with Different Rubber Materials

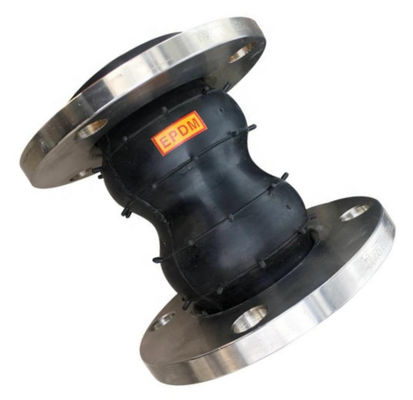

DN65mm-DN2000mm Flexible Rubber Joint Flange Compensator For Water Pipe 0
Packing and Shipping
Double rubber absorb shock expansion joint:
  • Inner package: plastic bag + carton cases one pcs/box
  • Outer package: wooden cases (usually size of 1100mm*1100mm*1100mm, 20 feet container can hold 18 wooden cases)

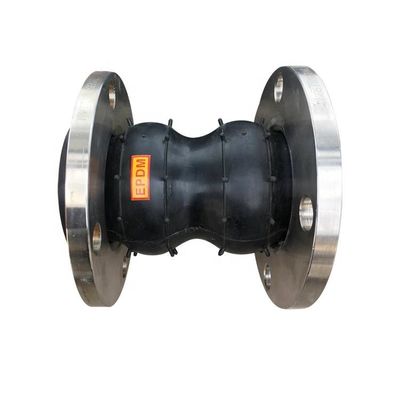

DN65mm-DN2000mm Flexible Rubber Joint Flange Compensator For Water Pipe 1
Frequently Asked Questions
Q: What is the MOQ of the double arch rubber absorb shock expansion joint?
A: 1 Piece, You can also get it as a sample to test our product quality, then you can purchase order to us.
Q: Can I get a sample?
A: Of course you can. For small order, express will be best; And for bulk order, sea ship way is best but take much time; For urgent orders, we suggest via air to airport plus, then ship partner send to your door.
Q: Can I visit your factory before the order?
A: Yes, welcome to our factory to check the quality.
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.
Q: And what's your packing?
A: Carton cases inside, export wooden cases outside.
