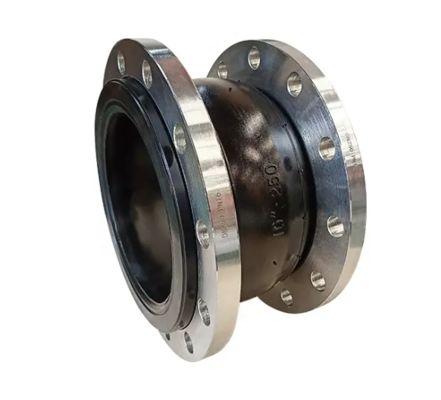

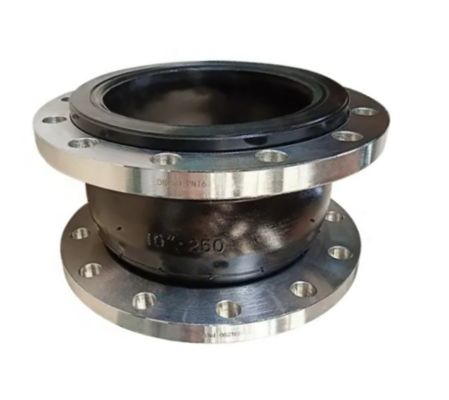

DN300 Flange Type NBR Single Sphere Flexible Expansion Connection Rubber Compensator Joint

DN300 Flange Type NBR Single Sphere Flexible Expansion Connection Rubber Compensator Joint
DN300 Flange Type NBR Single Sphere Flexible Expansion Connection Rubber Compensator Joint DN300 Flange Type NBR Single Sphere Flexible Expansion Connection Rubber Compensator Joint

Large Image :  DN300 Flange Type NBR Single Sphere Flexible Expansion Connection Rubber Compensator Joint

Product Details:
Place of Origin: China
Brand Name: Lianghe
Certification: ISO 9001:2015
Model Number: KXT
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $15.40-47.8/Sets
Packaging Details: Inside: Plastic Film ，Outside: Wooden Case
Delivery Time: 5-7day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 6000 set per month
Contact Now Chat Now

DN300 Flange Type NBR Single Sphere Flexible Expansion Connection Rubber Compensator Joint

Description
Product Name: DN300 Flange Type NBR Single Sphere Flexible Expansion Size: DN25-DN4000
Pressure: PN6 - PN40 Drawing Service: Free Offer
Test Pressure: 1.5 Times Of Working Pressure Explosion Pressure: 2 Times Of Working Pressure
Stock: Sufficient
Highlight:

DN300 flange type rubber expansion joint

,

NBR single sphere compensator joint

,

flexible rubber expansion joint with flange

DN300 Flange Type NBR Single Sphere Flexible Expansion Connection Rubber Compensator Joint

A Single Sphere Rubber Expansion Joint (also known as a rubber compensator, flexible rubber joint, or rubber bellows) is a highly flexible piping component designed to absorb movement, reduce vibration, and compensate for misalignment in pipelines while maintaining a leak-proof seal.

Key Features
  • Nominal Diameter (DN): 300 mm
  • Structure Type: Single Sphere Rubber Expansion Joint
  • Flange Type: Carbon steel or galvanized steel, drilled to ANSI, DIN, JIS or custom standards
  • Rubber Material: NBR (Nitrile Butadiene Rubber) - Excellent oil resistance
  • Reinforcement: Multi-layer nylon cord and steel wire for pressure resistance
  • Design Pressure: Usually PN10 / PN16 / PN25 (confirm as per project)
  • Movement Capability: Axial compression/extension, lateral offset, angular deflection
  • Temperature Range: -10°C to +80°C (depending on fluid compatibility)
DN300 Flange Type NBR Single Sphere Flexible Expansion Connection Rubber Compensator Joint 0
Product Parameters
Name of product DN300 flange type NBR single sphere flexible expansion connection rubber compensator joint
Structure of product Inner and outer rubber, nylon cord fabric, steel wire and flange
Material of rubber EPDM, NR, NBR, PTFE, FKM, etc
Material of flange SS304, SS316, carbon steel, ductile iron, etc
Standard of flange DIN, BS, ANSI, JIS, etc.
Product classification Single sphere, Double sphere, Union type, etc
Construction Details

The single sphere rubber expansion joint consists of:

  • Rubber Body (Elastomer): Typically made of NBR (Nitrile Rubber), EPDM, Neoprene, or FKM (Viton) depending on the application.
  • Reinforcement Layers: Embedded fabric or steel wire to enhance pressure resistance.
  • Flanges or Pipe Ends: Available in flanged (ANSI, DIN, JIS, etc.) or threaded/sleeve-type connections.
  • Single Arch (Sphere) Design: Provides flexibility for axial, lateral, and angular movement.
DN300 Flange Type NBR Single Sphere Flexible Expansion Connection Rubber Compensator Joint 1
Key Functions
✔
Vibration & Noise Damping: Reduces stress from pumps, compressors, and machinery.
✔
Shock Absorption: Protects pipelines from water hammer and pressure surges.
✔
Misalignment Compensation: Allows slight pipe deviations without rigid connections.
✔
Thermal Expansion Compensation: Accommodates temperature-induced pipe expansion/contraction.
✔
Chemical & Corrosion Resistance: Depending on rubber material (e.g., EPDM for acid, NBR for oils).
DN300 Flange Type NBR Single Sphere Flexible Expansion Connection Rubber Compensator Joint 2
Rubber Expansion Joint Product Processing
DN300 Flange Type NBR Single Sphere Flexible Expansion Connection Rubber Compensator Joint 3

Tag:

general rubber expansion joints,

Single Sphere Flex Connector,

flanged rubber expansion joint
