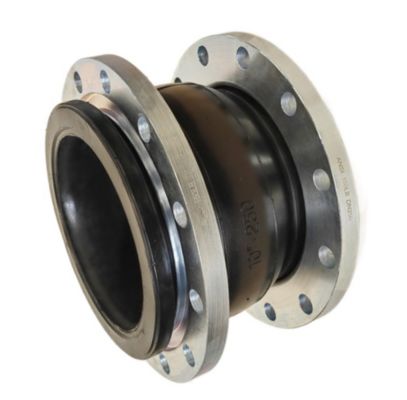

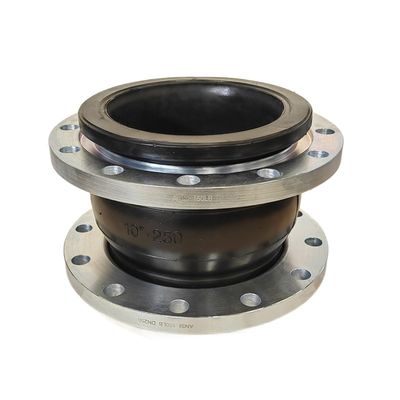

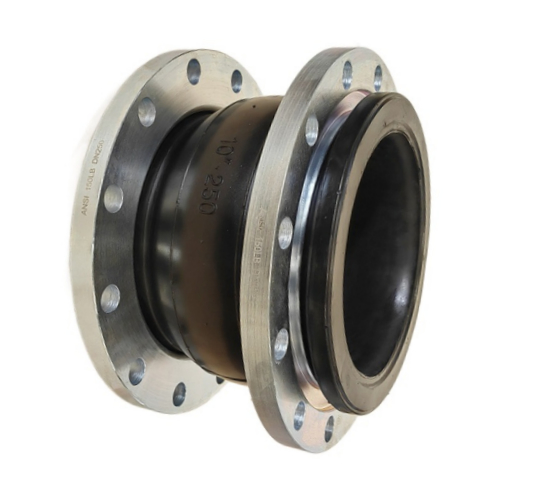

Single Sphere EPDM Rubber Expansion Joint with Carbon Steel galvanized Flange Pipe Fittings

Single Sphere EPDM Rubber Expansion Joint with Carbon Steel galvanized Flange Pipe Fittings
Single Sphere EPDM Rubber Expansion Joint with Carbon Steel galvanized Flange Pipe Fittings Single Sphere EPDM Rubber Expansion Joint with Carbon Steel galvanized Flange Pipe Fittings Single Sphere EPDM Rubber Expansion Joint with Carbon Steel galvanized Flange Pipe Fittings

Large Image :  Single Sphere EPDM Rubber Expansion Joint with Carbon Steel galvanized Flange Pipe Fittings

Product Details:
Place of Origin: China
Brand Name: Lianghe
Certification: ISO 9001:2015
Model Number: KXT
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $29-$89
Packaging Details: Inside: Plastic Film ，Outside: Wooden Case
Delivery Time: 7-15 work days
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 6000 set per month
Contact Now Chat Now

Single Sphere EPDM Rubber Expansion Joint with Carbon Steel galvanized Flange Pipe Fittings

Description
Specifications: DN20-DN3000 Body Material: EPDM
Flange Material: Carbon Steel / SS304 / SS316 Working Temperature Of The Condition: - 20°C To + 120°C
Usage: Fresh Water And Drinking Water Medium: Air, Water, Sewage, Acid, Oil, Etc.
Standard: JIS, DIN, ANSI, ASME, Etc
Highlight:

EPDM rubber expansion joint

,

galvanized flange pipe fittings

,

carbon steel rubber expansion joint

Single Sphere EPDM Rubber Expansion Joint with Carbon Steel Galvanized Flange Pipe Fittings
A flexible connector used in piping systems to absorb movement, reduce vibration, and compensate for misalignment.
Single Sphere EPDM Rubber Expansion Joint with Carbon Steel galvanized Flange Pipe Fittings 0
Product Features
1. Single Sphere Design
Features a single spherical arch in the rubber body that allows for axial, lateral, and angular movement. More flexible than spool-type joints, making it ideal for systems requiring superior movement absorption in all directions.
2. EPDM Rubber Body
Material: Ethylene Propylene Diene Monomer (EPDM) rubber.
  • Excellent resistance to weathering, ozone, UV, and aging
  • Handles a wide range of water, steam, acids, and alkalis
  • Not suitable for oils, fuels, or hydrocarbons
3. Carbon Steel Galvanized Flanges
Material: Carbon steel with hot-dip galvanizing or zinc plating for corrosion protection.
  • Conforms to ANSI, DIN, JIS, or BS standards
  • Customizable drilling patterns to match pipe flanges
4. Pipe Fittings
The flanges act as the main fittings and are bolted to mating pipe flanges. Can be customized for threaded or welded connections if required.
Feature Specification
Size Range DN25 (1") to DN1200 (48") or more
Pressure Rating PN10, PN16, or ANSI 150#
Temperature Range -20°C to +120°C (for EPDM)
Movement Absorption Axial, Lateral, Angular
Installation Between two pipe flanges, bolted
Single Sphere EPDM Rubber Expansion Joint with Carbon Steel galvanized Flange Pipe Fittings 1
Key Advantages
  • Reduces stress on pipes and equipment
  • Absorbs vibration and noise
  • Compensates for misalignment and thermal expansion
  • Easy to install and maintain
Manufacturing Capabilities
Single Sphere EPDM Rubber Expansion Joint with Carbon Steel galvanized Flange Pipe Fittings 2
Product Inventory
Single Sphere EPDM Rubber Expansion Joint with Carbon Steel galvanized Flange Pipe Fittings 3

Tag:

general rubber expansion joints,

Single Sphere Flex Connector,

flanged rubber expansion joint
