10° 15° Deflection Angle Large Diameter Rubber Expansion Joint

10° 15° Deflection Angle Large Diameter Rubber Expansion Joint
10° 15° Deflection Angle Large Diameter Rubber Expansion Joint 10° 15° Deflection Angle Large Diameter Rubber Expansion Joint

Large Image :  10° 15° Deflection Angle Large Diameter Rubber Expansion Joint

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: KXT
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄35.25-288.7 per set
Packaging Details: cartons,wooden cases
Delivery Time: 2-7 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 8000 piece per month
Contact Now Chat Now

10° 15° Deflection Angle Large Diameter Rubber Expansion Joint

Description
Product Category: Large Diameter Single Bellow Rubber Expansion Joint Nominal Diameter: 32mm - 1800mm
Working Temperature: -15~+80 ℃ (special:-30~+150℃ ) Rubber Material: Natural Rubber, EPDM Rubber, NBR Rubber, FKM Rubber, Nitrile Rubber
Burst Pressure: 2 Times Of Working Pressure Application: Oil, Air, Water, Acid And Alkali, Etc
Horizontal Displacement: 9mm - 35mm
Highlight:

10° deflection rubber expansion joint

,

large diameter rubber expansion joint

,

single sphere rubber expansion joint

10° 15° Deflection Angle Large Diameter Rubber Expansion Joint
Product Description

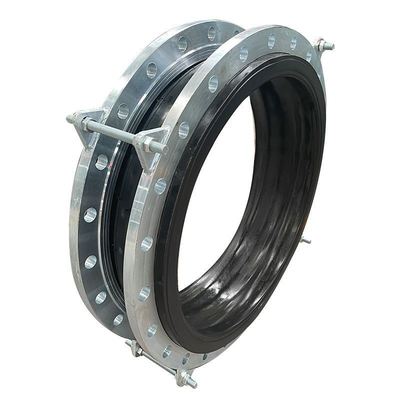

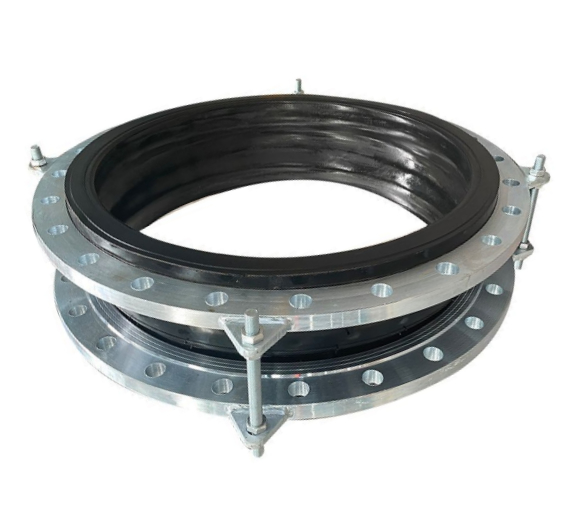

The 10° 15° Deflection Angle Large Diameter Single Bellow Rubber Expansion Joint with Carbon Steel Flange is a high-quality single sphere expansion joint designed to provide efficient and reliable piping system solutions. This product is ideal for various applications that require flexibility, vibration absorption, and noise reduction.
10° 15° Deflection Angle Large Diameter Rubber Expansion Joint 0
With flange standards including DIN PN10, DNI PN16, ANSI 150LB, BS4504, JIS5K, and JIS10K, this single sphere expansion joint offers versatility and compatibility with different piping systems. Available in sizes ranging from DN15 to DN4000, the joint features horizontal displacement capability of 9mm to 35mm for flexible installation and optimal performance.
Key Features
  • Product Name: Large Diameter Single Bellow Rubber Expansion Joint
  • Equipment Usage: Lifting and transportation of raw water and sewage, water supply and cooling circulation water in various industries
  • Flange Standards:
    • DIN PN10
    • DIN PN16
    • ANSI 150LB
    • BS4504
    • JIS5K
    • JIS10K
  • Material Of Flange: Carbon Steel, Stainless Steel, etc.
  • Manufacturer capabilities include custom production, technical drawings, and samples available
Technical Parameters
Parameter Specification
Horizontal Displacement 9mm - 35mm
Axial Displacement 6mm - 25mm
Test Pressure 1.5 Times Of Working Pressure
Application Oil, Air, Water, Acid And Alkali, etc
Product Classification Single sphere, Double sphere, Union type, etc
Rubber Material Nature rubber, EPDM rubber, NBR rubber, FKM rubber, Nitrile rubber
Deflection Angle 10° - 15°
Nominal Diameter 32mm - 1800mm
10° 15° Deflection Angle Large Diameter Rubber Expansion Joint 1
Applications
The Liang He KXT Single Sphere Rubber Expansion Joint is suitable for various industrial applications:
  • HVAC Systems: Absorbs vibrations and reduces noise in heating, ventilation, and air conditioning systems
  • Water Treatment Plants: Accommodates movement and misalignment in piping systems
  • Industrial Processes: Handles thermal expansion and contraction in chemical plants and refineries
  • Power Plants: Provides flexibility to piping systems in demanding conditions
  • Construction Projects: Accommodates movement due to settling or external forces
10° 15° Deflection Angle Large Diameter Rubber Expansion Joint 2
Support and Services
Our product comes with comprehensive technical support including installation guidance, maintenance advice, and troubleshooting assistance from our team of experts.
Packing and Shipping
The Single Sphere Rubber Expansion Joint is carefully packed in sturdy cardboard boxes with protective materials to ensure safe transportation. Orders are processed within 1-2 business days with tracking information provided.
10° 15° Deflection Angle Large Diameter Rubber Expansion Joint 3

Tag:

general rubber expansion joints,

Single Sphere Flex Connector,

flanged rubber expansion joint
