DN65 Nitrile Rubber Expansion Joint CL150 Flange Coupling

DN65 Nitrile Rubber Expansion Joint CL150 Flange Coupling
DN65 Nitrile Rubber Expansion Joint CL150 Flange Coupling DN65 Nitrile Rubber Expansion Joint CL150 Flange Coupling DN65 Nitrile Rubber Expansion Joint CL150 Flange Coupling

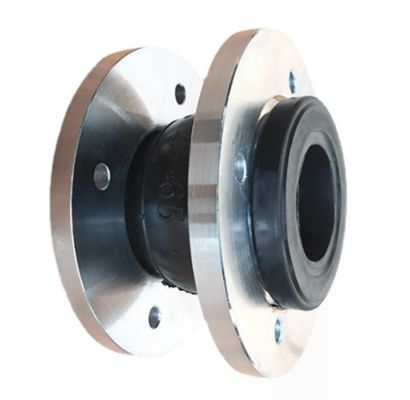

Large Image :  DN65 Nitrile Rubber Expansion Joint CL150 Flange Coupling

Product Details:
Place of Origin: China
Brand Name: Lianghe
Certification: ISO 9001:2015
Model Number: KXT
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $13.00-37.8/Sets
Packaging Details: Inner: plastic film, then put into carton case. Outer: safe firmed export plywood case, marking on carton case and wooden case can be customized, or packing as per your requests.
Delivery Time: 5-10 work days
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 6000 set per month
Contact Now Chat Now

DN65 Nitrile Rubber Expansion Joint CL150 Flange Coupling

Description
Product Name: Nitrile Soft Rubber Expansion Joints Size: DN15-DN4000
Material Of Flange: Carbon Steel,Stainless Steel Etc. Flange Standard: DIN,JIS,ANSI,GB,etc
Working Temperature: -15~+80 ℃ (special:-30~+150℃ ) Application: Oil,Air,Water,Acid And Alkali,etc
Test Pressure: 1.5 Times Of Working Pressure
Highlight:

DN65 nitrile rubber expansion joint

,

CL150 flange coupling expansion joint

,

single sphere rubber flange coupling

DN65 Nitrile Rubber Expansion Joint CL150 Flange Coupling
Product Overview

DN65 Flexible Connector CL150 Coupling Turntable Flange Nitrile Soft Rubber Expansion Joints effectively reduce vibration and noise in piping systems while solving interface displacement and axial expansion issues.

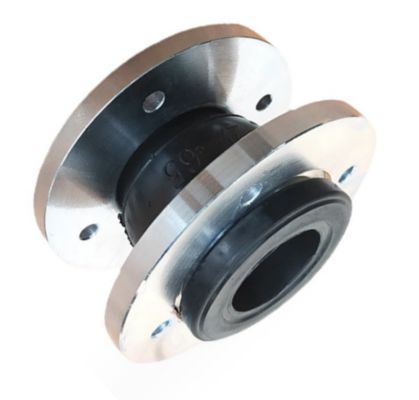

DN65 Nitrile Rubber Expansion Joint CL150 Flange Coupling 0
Product Specifications
Product Name DN65 Flexible Connector CL150 Coupling Turntable Flange Nitrile Soft Rubber Expansion Joints
Product Structure Inner and outer rubber, nylon cord fabric, steel wire and flange
Rubber Material Nature rubber, EPDM rubber, NBR rubber, FKM rubber, Nitrile rubber
Flange Material SS304, SS316, carbon steel, ductile iron, etc
Flange Standard DIN PN10, DNI PN16, ANSI 150LB, BS4504, JIS5K, JIS10K
Product Classification Single sphere, Double sphere, Union type, etc

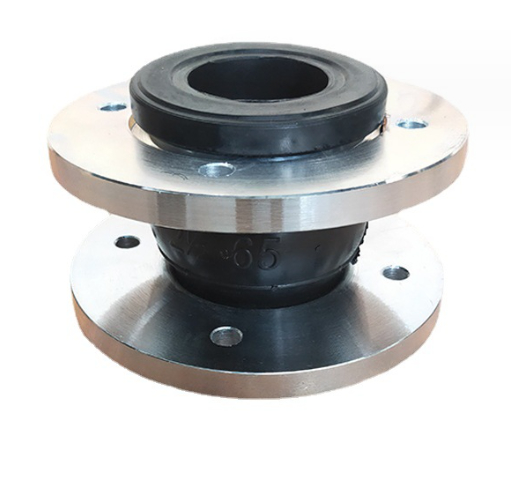

DN65 Nitrile Rubber Expansion Joint CL150 Flange Coupling 1
Flange Rubber Joint Connection Data
Nominal Diameter Length (mm) Axial Displacement (mm) Horizontal Displacement (mm) Deflection Angle
32 mm (1 1/4") 95 6 9 15°
40 mm (1 1/2") 95 6 10 15°
50 mm (2") 105 7 10 15°
65 mm (2 1/2") 115 7 13 15°
80 mm (3") 135 8 15 15°
100 mm (4") 150 10 19 15°
125 mm (5") 165 12 19 15°
150 mm (6") 180 12 20 15°
Company Advantages
  • Direct factory source with 20 years of production experience
  • Professional quality inspection and guaranteed product quality
  • Customization options including LOGO, packaging, and technical drawings
  • Rigorous factory inspection before shipment
  • Export experience to 60+ countries
  • Reliable warranty and quality assurance
  • Responsive technical support and problem-solving
  • Flexible payment options including T/T, credit card, and PayPal
Factory Stock
DN65 Nitrile Rubber Expansion Joint CL150 Flange Coupling 2 DN65 Nitrile Rubber Expansion Joint CL150 Flange Coupling 3
Applications

These rubber flexible joints are used in:

  • Raw water and sewage transportation
  • Thermal power plant water supply and cooling systems
  • Metallurgical industry applications
  • Chemical and petrochemical pipeline systems
  • Long and short distance pipeline connections
DN65 Nitrile Rubber Expansion Joint CL150 Flange Coupling 4
Frequently Asked Questions
Q: Are you a trading company or manufacturer?

A: We are a manufacturer with over 20 years of experience producing rubber expansion joints, flexible metal hoses, and related products.

Q: Do you have a product catalog?

A: Yes, we can provide our catalog upon request.

Q: Can you provide technical drawings and data?

A: Our technical department can provide customized drawings and specifications.

Q: Do you provide samples?

A: Samples are available with shipping costs covered by the customer.

Q: Can products be customized?

A: Yes, we can manufacture products to meet specific requirements.
