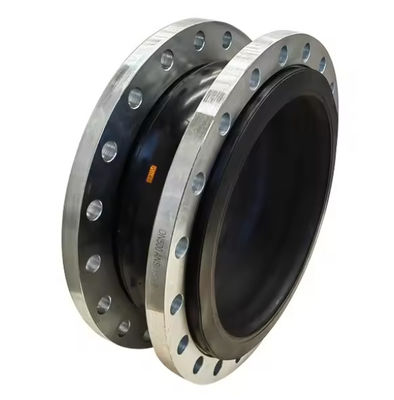

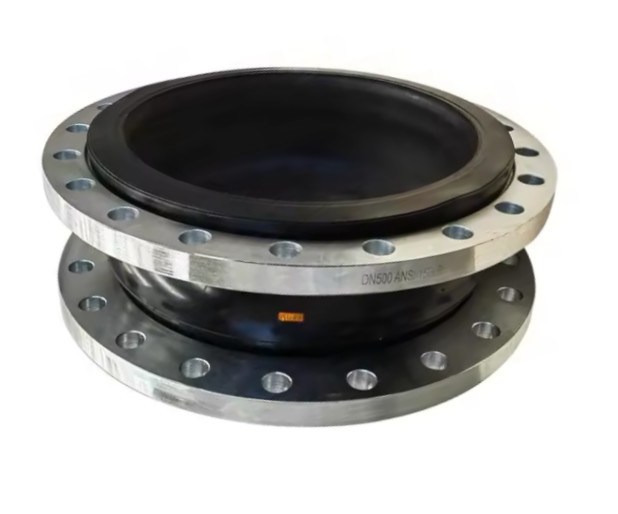

Carbon Steel ANSI 150LB Flanged EPDM Rubber Expansion Joint DN500

Carbon Steel ANSI 150LB Flanged EPDM Rubber Expansion Joint DN500
Carbon Steel ANSI 150LB Flanged EPDM Rubber Expansion Joint DN500 Carbon Steel ANSI 150LB Flanged EPDM Rubber Expansion Joint DN500

Large Image :  Carbon Steel ANSI 150LB Flanged EPDM Rubber Expansion Joint DN500

Product Details:
Place of Origin: China
Brand Name: Lianghe
Certification: ISO 9001:2015
Model Number: KXT
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $10.8-$16.7 per set
Packaging Details: Inside: Plastic Film ，Outside: Wooden Case
Delivery Time: 7-15 work days
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 5000 set per month
Contact Now Chat Now

Carbon Steel ANSI 150LB Flanged EPDM Rubber Expansion Joint DN500

Description
Product Name: DN500 EPDM Rubber Expansion Bellows Joint Type: Rubber Expansion Bellows Joint
Reinforcement Layer: Steel Wire Ring Main Frame: Nylon Cord Fabric
Rubber Material: EPDM,CR,NBR ,Neoprene And So On Rubber Expansion Joint Flange Material: Carbon Steel ,stainless Steel And Others
Pressure: PN0.6,PN1.0,PN1.6,PN2.5Mpa,PN4.0Mpa
Highlight:

Carbon Steel Flange EPDM expansion joint

,

ANSI 150LB flanged rubber joint

,

DN500 single sphere expansion joint

Carbon Steel ANSI 150LB Flanged EPDM Rubber Expansion Joint DN500

Carbon Steel ANSI 150LB Flanged Flexible DN500 EPDM Rubber Expansion Bellows Joint

Rubber expansion joints, also known as rubber flexible connectors, are flexible connection devices that compensate for pipeline displacement through rubber elastic deformation.

Structure Components
  • Main rubber layer: natural rubber (NR), ethylene propylene diene monomer rubber (EPDM), or chloroprene rubber (CR)
  • Reinforcement layer: polyester fabric or steel wire braiding (to withstand pressure)
  • Flange/clamp interface: carbon steel flange (Q235B), stainless steel flange (304/316), or ring clamp
Carbon Steel ANSI 150LB Flanged EPDM Rubber Expansion Joint DN500 0
Core Functions
  • Three-dimensional displacement compensation: axial ±15 mm, lateral ±10 mm (based on DN200)
  • Vibration reduction and noise reduction: can reduce pipe vibration transmission rate by ≥80%
  • Absorption of installation errors: allows ±5° pipe deflection
Carbon Steel ANSI 150LB Flanged EPDM Rubber Expansion Joint DN500 1 Carbon Steel ANSI 150LB Flanged EPDM Rubber Expansion Joint DN500 2 Carbon Steel ANSI 150LB Flanged EPDM Rubber Expansion Joint DN500 3
Material Specifications
NO Name Material
1 Flange Q235, SS304, SS316, SS316L
2 Inner and outer rubber layer NR, EPDM, NBR, Neoprene, FKM
3 Reinforcement layer Nylon cord fabric
4 Wire ring Steel
Manufacturing Facility
Carbon Steel ANSI 150LB Flanged EPDM Rubber Expansion Joint DN500 4
Inventory
Carbon Steel ANSI 150LB Flanged EPDM Rubber Expansion Joint DN500 5
Frequently Asked Questions
1. Is the flange galvanized?
Yes, carbon steel flange not painted with anticorrosive paint must be galvanized to avoid rusting. We offer both electronic galvanized and hot dip galvanized options, with most customers choosing hot galvanizing.
2. What kind of standard of your drilled flange?
Besides Chinese national standard, we also support ANSI, BS, DIN, JIS, GB and others. We can produce customized flanges if you provide the center distance of the hole, the number and diameter.
3. Can the inner layer rubber and outside layer rubber be made using different rubber?
Yes, we can produce the rubber joint according to the environment it will be used in, selecting different rubber materials for the inner and outer layers as needed.
4. Can I only buy ball without the flange?
Yes, and the price will be cheaper. For small diameter rubber joints, we maintain large stock and can offer a free hydrotest.

Tag:

general rubber expansion joints,

Single Sphere Flex Connector,

flanged rubber expansion joint
