Single Sphere Ansi 150LB Flange Flexible Neoprene EPDM Rubber Expansion Joint

Single Sphere Ansi 150LB Flange Flexible Neoprene EPDM Rubber Expansion Joint
Single Sphere Ansi 150LB Flange Flexible Neoprene EPDM Rubber Expansion Joint Single Sphere Ansi 150LB Flange Flexible Neoprene EPDM Rubber Expansion Joint

Large Image :  Single Sphere Ansi 150LB Flange Flexible Neoprene EPDM Rubber Expansion Joint

Product Details:
Place of Origin: China
Brand Name: Lianghe
Certification: ISO 9001:2015
Model Number: KXT
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $8.6-$20.8 per set
Packaging Details: Inside: Plastic Film ，Outside: Wooden Case
Delivery Time: 5-10 work days
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 8000 set per month
Contact Now Chat Now

Single Sphere Ansi 150LB Flange Flexible Neoprene EPDM Rubber Expansion Joint

Description
Product Name: Ansi 150LB Flange Flexible Neoprene EPDM Rubber Expansion Joint Size: DN32-DN3000
Flange Standard: ANSI 150lb,DIN,BS,etc. Flange Material: CS, SS304, SS316 Etc
Rubber Material: NR, EPDM, NBR, Neoprene Etc Applicable Temperature: - 15℃ ~ + 80 ℃ (- 30℃ ~ + 150 ℃ Special Use)
Application: Pipes, Construction, Industry, Gas, Oil And Ship Building Etc
Highlight:

150LB Rubber Expansion Joint

,

Single Sphere Rubber Expansion Joint

,

Neoprene Rubber Expansion Joint

Single Sphere ANSI 150LB Flange Flexible Neoprene EPDM Rubber Expansion Joint
Single ball rubber expansion joint (also known as single ball rubber soft joint or single ball rubber compensator) is a flexible connection element used in pipeline systems to absorb vibration, reduce noise, and compensate for displacement.
Structure and Composition
  • Ball part: Single ball design composed of inner and outer rubber layers with reinforcement layers (such as polyester cord) for high flexibility and elasticity
  • Flange interface: Equipped with metal flange (carbon steel, stainless steel) or threaded interface for easy installation
  • Internal reinforcement: May contain wire rings or skeleton layers to improve pressure bearing capacity

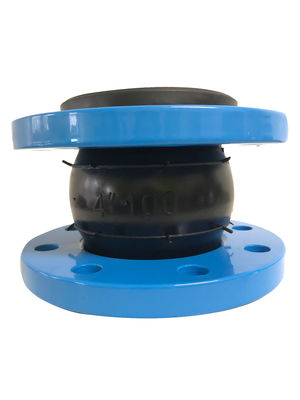

Single Sphere Ansi 150LB Flange Flexible Neoprene EPDM Rubber Expansion Joint 0
Main Functions
  • Displacement compensation: Absorbs axial, lateral, and angular displacement of pipelines (thermal expansion/contraction)
  • Vibration reduction and noise reduction: Relieves vibration and noise from pumps, valves, and other equipment
  • Sealing and leak prevention: Prevents medium leakage and adapts to pipeline misalignment
  • Corrosion resistance: Rubber material adapts to various chemical media
Product Parameters
Nominal diameter(DN) Length Axial displacement Horizontal displacement Deflexion angle
mm | inch mm Extension (mm) Compression (mm) mm | (a1+a2)°
32 | 1 1/4956915°
40 | 1 1/29561015°
50 | 210571015°
65 | 1 1/211571315°
80 | 313581515°
100 | 4150101915°
125 | 5165121915°
150 | 6180122015°
200 | 8210162515°
250 | 10230162515°
300 | 12245162515°
350 | 14255162515°
400 | 16255162515°
450 | 18255162515°
500 | 20255162515°
600 | 24260162515°
Material Selection
NR (Natural Rubber)Domestic water, sewage, etc.
NBR (Nitrile Rubber)Oil and fuel resistant, suitable for petroleum media
EPDMOzone resistant, aging resistant, suitable for hot water and steam
CR (Chloroprene Rubber)Good weather resistance, suitable for outdoor environment
Silicone RubberHigh temperature resistant (up to 250℃), used for special working conditions
Flange MaterialCarbon steel (Q235), stainless steel (304/316), etc.
Applicable Fields
Water Supply and Drainage Pipeline Systems:
Used in urban water supply and drainage, building water supply and drainage pipelines to compensate for axial and lateral displacement, relieve stress from temperature changes and foundation settlement, protect pipeline system safety, and reduce vibration/noise transmission.
HVAC Systems:
Used in chilled water, cooling water pipes, and ventilation pipes to compensate for thermal expansion/contraction displacement, prevent pipe joint damage from stress concentration, ensure system stability, and provide shock absorption/noise reduction for improved indoor comfort.

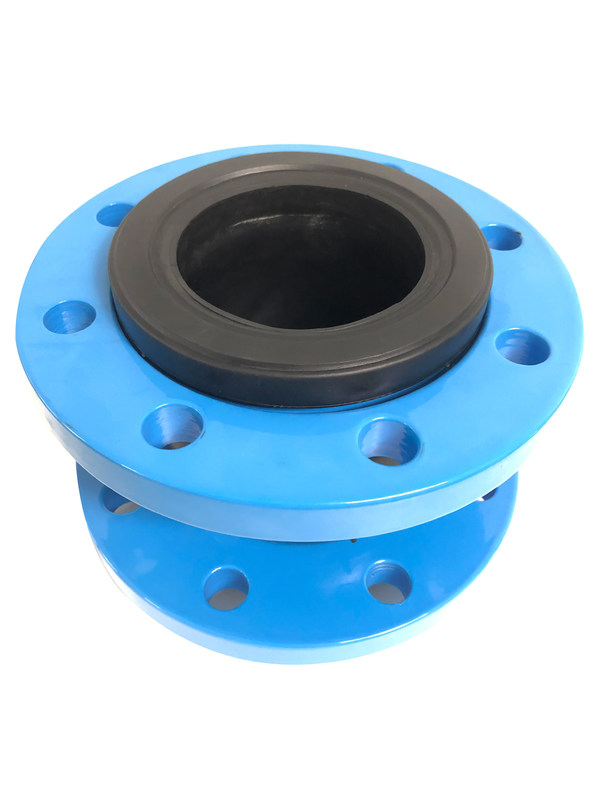

Single Sphere Ansi 150LB Flange Flexible Neoprene EPDM Rubber Expansion Joint 1
