Wholesale Metal Steel Flange Flex Expans Connector Rubber Expansion Joint

Wholesale Metal Steel Flange Flex Expans Connector Rubber Expansion Joint
Wholesale Metal Steel Flange Flex Expans Connector Rubber Expansion Joint Wholesale Metal Steel Flange Flex Expans Connector Rubber Expansion Joint

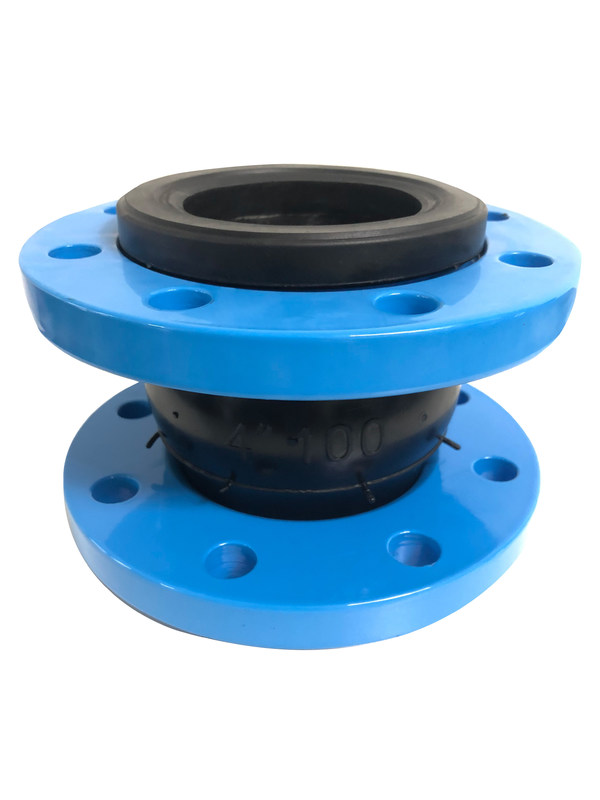

Large Image :  Wholesale Metal Steel Flange Flex Expans Connector Rubber Expansion Joint

Product Details:
Place of Origin: China
Brand Name: Lianghe
Certification: ISO 9001:2015
Model Number: KXT
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $13.5-19.8 per set
Packaging Details: Inner: plastic film, then put into carton case. Outer: safe firmed export plywood case, marking on carton case and wooden case can be customized, or packing as per your requests.
Delivery Time: 5 work days
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 6000 set per month
Contact Now Chat Now

Wholesale Metal Steel Flange Flex Expans Connector Rubber Expansion Joint

Description
Product Name: Metal Steel Flange Flex Expans Connector Rubber Expansion Joint Nominal Diameters: DN15-DN4000
Flange Material: SS,CS,CS Galvanized,ductile Iron Rubber Joint Material: EPDM,NBR,CR,PTFE,etc.
Flange Standard: DIN PN10,PN16,PN25/ANSI 150LB,300LB/JIS 10K,etc. Pressure: PN6,PN10,PN16,125PSI,150PSI
Application: Oil Pipeline 、water Pipeline
Highlight:

Metal Steel Rubber Expansion Joint

,

Rubber Expansion Joint For Water Pipeline

,

Flange Flex Expans Rubber Expansion Joint

Wholesale Metal Steel Flange Flex Expansion Connector Rubber Expansion Joint
Product Description

Rubber expansion joint (also called rubber bellows or rubber joint) is a single sphere flexible connection consisting of two flanges and one rubber sphere body. The flanges provide secure connection points while the flexible rubber sphere absorbs axial, horizontal, and angular displacement.

Technical Specifications
  • Working pressure: 6-40 bars
  • Working temperature: -15°C to +80°C
  • Nominal size range: DN15 to DN4000
  • Rubber materials: Natural rubber, EPDM, Neoprene, NBR, PTFE
  • Flange materials: Carbon steel (galvanized/painted), cast iron (painted), stainless steel

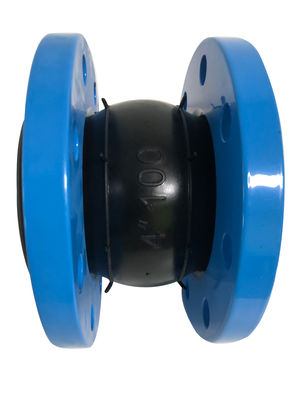

Wholesale Metal Steel Flange Flex Expans Connector Rubber Expansion Joint 0 Wholesale Metal Steel Flange Flex Expans Connector Rubber Expansion Joint 1
Main Connection Dimensions
Nominal diameter (mm/in) Length (mm) Axial displacement (mm) Horizontal movement (mm) Deflection angle Special length (mm)
32 / 1 1/4959615°130/150/200
40 / 1 1/29510615°130/150/200
50 / 210510715°130/150/200
65 / 2 1/211513715°130/150/200
80 / 313515815°130/150/200
100 / 4150191015°130/200
125 / 5165191215°130/150/200
150 / 6180201215°130/150/200
200 / 8210251615°130/150/200
250 / 10230251615°130/150/200
300 / 12245251615°130/150/200
350 / 14255251615°130/150/200
400 / 16255251615°130/150/200
450 / 18255251615°200
500 / 20255251615°200
600 / 24260251615°300
700 / 28260251615°300
800 / 32260251615°300
900 / 36260251615°300
1000 / 40260261815°300
1200 / 48260261815°300

Custom sizes available from DN15 to DN4000.

Packaging
  • Standard packaging: Plastic film wrapping with carton, pallet, or wooden case protection
  • Custom packaging options available upon request
Wholesale Metal Steel Flange Flex Expans Connector Rubber Expansion Joint 2
Shipping Options
  • International express services (DHL, UPS, TNT, EMS)
  • Custom transportation solutions based on schedule and budget
  • Option to use customer's preferred cargo agent
Frequently Asked Questions
Is the flange galvanized?

Yes, carbon steel flanges without anticorrosive paint are galvanized to prevent rust. We offer both electronic and hot dip galvanizing, with most customers preferring hot dip galvanizing.

Can the inner and outer layers use different rubber materials?

Yes, we can customize the rubber joint with different materials for inner and outer layers based on your specific environmental requirements.

Can I purchase just the rubber sphere without flanges?

Yes, sphere-only purchases are available at reduced cost. Small diameter joints are typically in stock, while large diameter joints require custom ordering.

What is the product warranty period?

We offer a 12-month warranty from the date of receipt, including free replacement for any product issues during this period.

Does the product include an inspection report?

Yes, all products undergo hydro testing and include a qualified inspection report before leaving our facility.

Tag:

general rubber expansion joints,

Single Sphere Flex Connector,

flanged rubber expansion joint
