PN16 EPDM Pipe Neoprene Absorbing Vibration Single Sphere Rubber Expansion Joints Flanged Flexible
Product Description

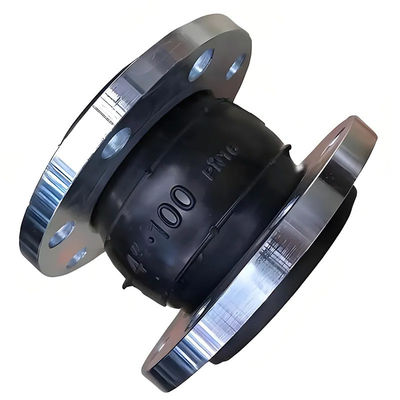

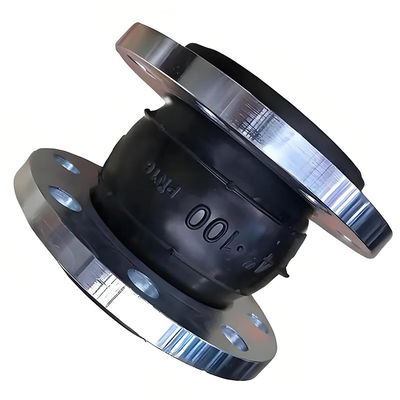

PN16 EPDM Pipe Neoprene Absorbing Vibration Flanged Flexible Single Sphere Rubber Expansion Joints
How the Product Works
The rubber joints reduce noise and vibration in pipelines and mechanical equipment by absorbing and transmitting vibrations, improving equipment stability and service life. In high-vibration pipelines, these joints effectively minimize noise and vibration while ensuring pipeline stability and safety.
Scope of Use
- Petrochemical Industry: Widely used in various piping systems due to their resistance to corrosion, high temperature, and high pressure.
- Urban Construction: Essential in water supply systems where they absorb shocks and vibrations caused by unstable water flow and external factors, ensuring continuous water supply.
- Power Industry: Crucial for maintaining stable operation by absorbing shocks and vibrations caused by temperature and pressure changes in power systems.
Flanged rubber joints are vital pipe connectors that compensate for thermal expansion/contraction, absorb vibration and noise, and facilitate pipeline installation and maintenance.
Product Parameters
| Name of Product |
PN16 EPDM Pipe Neoprene Absorbing Vibration Flanged Flexible Single Sphere Rubber Expansion Joints |
| Structure of Product |
Inner and outer rubber, nylon cord fabric, steel wire and flange |
| Material of Rubber |
EPDM, NR, NBR, PTFE, FPM, etc |
| Material of Flange |
SS304, SS316, carbon steel, ductile iron, etc |
| Standard of Flange |
DIN, BS, ANSI, JIS, etc. |
Main Connection Sizes
| Nominal Diameter |
Length (mm) |
Axial Displacement (mm) |
Horizontal Displacement (mm) |
Deflection Angle |
| 32 mm (1 1/4") |
95 |
6 (Elongation)
9 (Compression) |
9 |
15° |
| 40 mm (1 1/2") |
95 |
6 (Elongation)
10 (Compression) |
9 |
15° |
| 50 mm (2") |
105 |
7 (Elongation)
10 (Compression) |
10 |
15° |
| 65 mm (2 1/2") |
115 |
7 (Elongation)
13 (Compression) |
11 |
15° |
| 80 mm (3") |
135 |
8 (Elongation)
15 (Compression) |
12 |
15° |
| 100 mm (4") |
150 |
10 (Elongation)
19 (Compression) |
13 |
15° |
| 125 mm (5") |
165 |
12 (Elongation)
19 (Compression) |
13 |
15° |
| 150 mm (6") |
180 |
12 (Elongation)
20 (Compression) |
14 |
15° |
Product Components
| NO |
NAME |
Material |
| 1 |
Outer/inner rubber |
EPDM, NR, NBR |
| 2 |
Frame |
Nylon cord |
| 3 |
Pressurized ring |
Steel wire or stainless steel |
| 4 |
Flange |
SS304, SS316, carbon steel, ductile iron, etc |
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are manufacturer of Expansion rubber joint, bellow expansion joint, stainless steel metal hose, dismantling joint with more than 20-year experience.
Q: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant messager, we will send our catalog about flange bellow connection flexible rubber joint.
Q: Have your products been exported?
A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Kenya, Serbia, Vietnam, South Korea, Indonesia, India, Thailand, Pakistan, Philippines, Singapore, HK...
Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.
Q: Can you provide drawings and technical data?
A: Yes, you can send us your request, our professional technical department will design and provide drawings and technical data.
