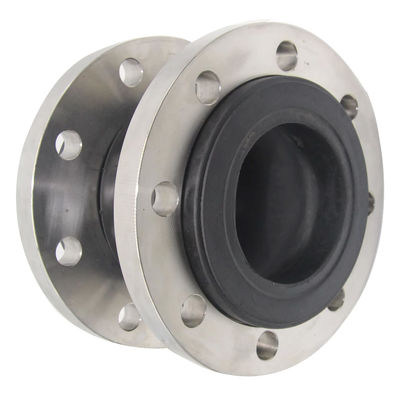

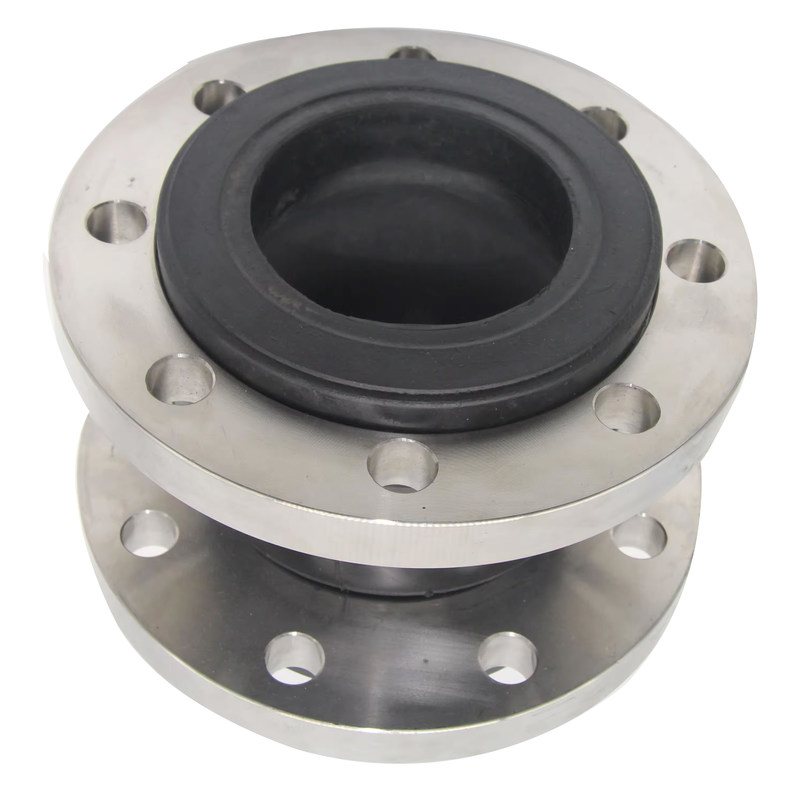

Ss304 Single Sphere Rubber Expansion Joint Galvanized Flange Flexible Rubber Joint

Ss304 Single Sphere Rubber Expansion Joint Galvanized Flange Flexible Rubber Joint
Ss304 Single Sphere Rubber Expansion Joint Galvanized Flange Flexible Rubber Joint Ss304 Single Sphere Rubber Expansion Joint Galvanized Flange Flexible Rubber Joint

Large Image :  Ss304 Single Sphere Rubber Expansion Joint Galvanized Flange Flexible Rubber Joint

Product Details:
Place of Origin: Henan,China
Brand Name: Liang He
Certification: ISO 9001
Model Number: KXT
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: ＄35.68-48.96 per set
Packaging Details: cartons,wooden cases
Delivery Time: 3-7 day
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 12000 piece per month
Contact Now Chat Now

Ss304 Single Sphere Rubber Expansion Joint Galvanized Flange Flexible Rubber Joint

Description
Standard Of Flange: ANSI, DIN, JIS, EN, Etc Application: Air, Water, Oil ,swage, Acid, Etc
Flange Material: Carbon Steel, Stainless Steel, Ductile Iron, Etc Body Material: NR, NBR, EPDM, Etc
Packing: Wooden Case Size: DN32-DN3000
Customized Support: OEM, ODM Installation Manual: Offer
Warranty: 12 Months
Highlight:

SS304 Single Sphere Rubber Expansion Joint

,

Galvanized single sphere rubber expansion joint

,

Flange Flexible Rubber Joint

SS304 Single Sphere Rubber Expansion Joint with Galvanized Flange
Product Description

The SS304 Flange Flexible Rubber Joint is a high-quality soft connection solution designed for various pipeline applications. This single sphere rubber expansion joint features galvanized flanges for enhanced durability and performance.

Key Selection Guidelines
  • Select based on pipeline working pressure, connection method, medium, and required compensation amount
  • For instantaneous pressure exceeding working pressure, choose one grade higher (e.g., 1.6MPa for >1.0MPa)
  • When used at pump inlets/outlets, install near pump side with metal reducer joint at large diameter
  • For acid, alkali, oil, or high-temperature media, select one grade higher than pipeline working pressure
  • Flange should be valve flange or GB/T9115.1 (RF) compliant
Technical Specifications
Nominal Diameter Length (mm) Axial Displacement (mm) Horizontal Displacement (mm) Deflection Angle
mm inch Elongation Compression
321 1/46915°
401 1/261015°
50271015°
652 1/271315°
80381515°
1004101915°
1255121915°
1506122015°
2008162515°
25010162515°
30012162515°
35014162515°
40016162515°
45018162515°
50020162515°
60024162515°
70028162515°
80032162515°
90036162515°
100040182615°
120048182615°
140056202815°
160064253510°
180072253510°
200080253510°
220088253510°
240096253510°
2600104253510°
2800112253510°
3000120253510°
Ss304 Single Sphere Rubber Expansion Joint Galvanized Flange Flexible Rubber Joint 0
Product Composition
Ss304 Single Sphere Rubber Expansion Joint Galvanized Flange Flexible Rubber Joint 1
Manufacturing Facility
Ss304 Single Sphere Rubber Expansion Joint Galvanized Flange Flexible Rubber Joint 2
Frequently Asked Questions
Can the products be manufactured to customer requirements?
Yes, the specifications listed are standard. We can design and manufacture according to your specific requirements. Contact us for pricing, packaging, shipping, and discount information.
Have your products been exported?
Yes, we have exported to numerous countries including USA, Canada, Australia, Russia, Chile, Panama, Nicaragua, UAE, Saudi Arabia, Egypt, Sri Lanka, Nigeria, Vietnam, Indonesia, Singapore, Greece, Netherlands, Georgia, Romania, Ireland, India, Thailand, Pakistan, Philippines, and more.
How do you guarantee quality and warranty?
If any quality issues arise during use, products can be returned or replaced according to customer requirements.
Do you provide samples? Are they free or charged?
Yes, we offer free samples with shipping costs covered by the customer.
